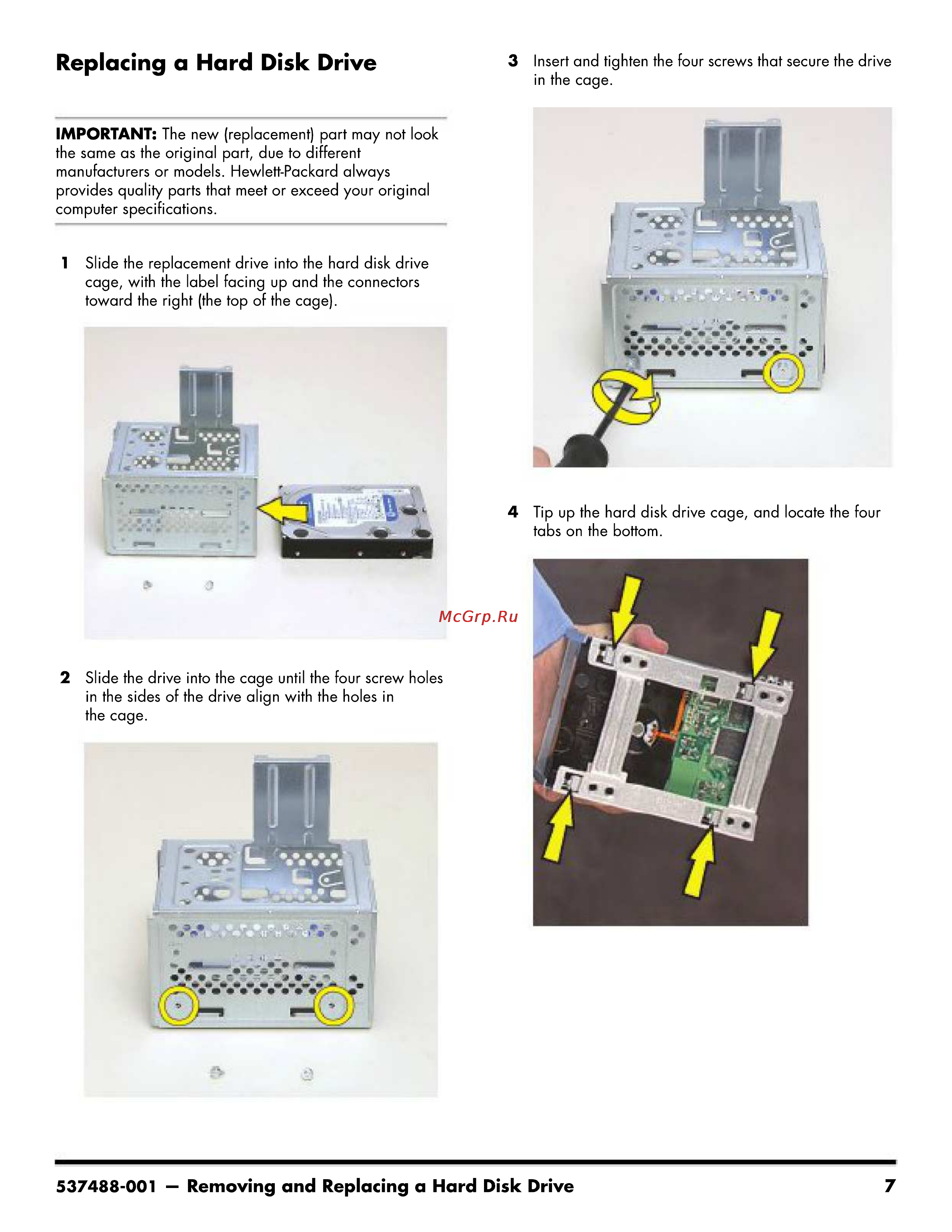

Replacing a Hard Disk Drive 3 Insert and tighten the four screws that secure the drive in the cage IMPORTANT The new replacement part may not look the same as the original part due to different manufacturers or models Hewlett Packard always provides quality parts that meet or exceed your original computer specifications 1 Slide the replacement drive into the hard disk drive cage with the label facing up and the connectors toward the right the top of the cage 4 Tip up the hard disk drive cage and locate the four tabs on the bottom 2 Slide the drive into the cage until the four screw holes in the sides of the drive align with the holes in the cage 537488 001 Removing and Replacing a Hard Disk Drive 7
