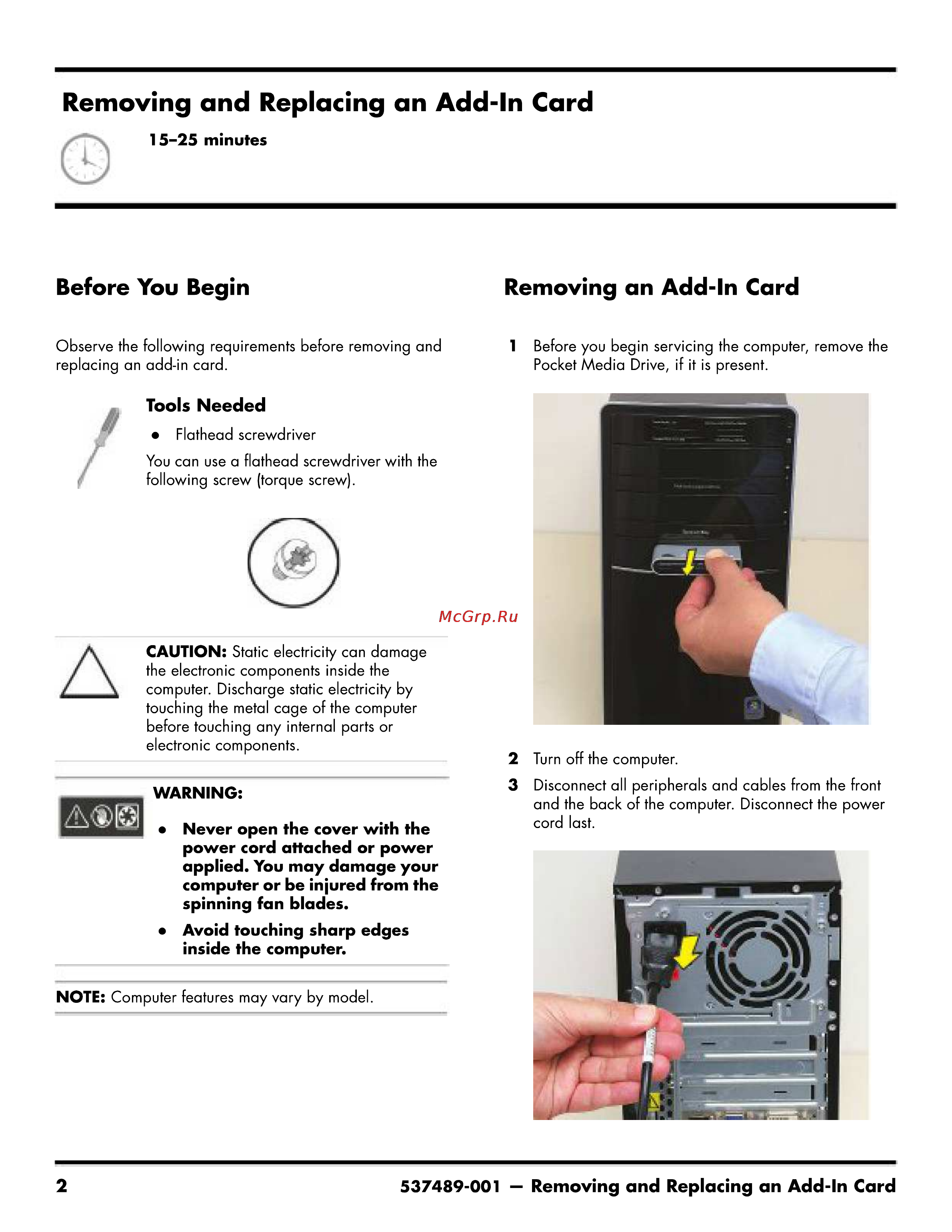

Removing and Replacing an Add In Card i 11 1 5 25 minutes Before You Begin Observe the following requirements before removing and replacing an add in card Removing an Add In Card 1 Before you begin servicing the computer remove the Pocket Media Drive if it is present Tools Needed Flathead screwdriver You can use a flathead screwdriver with the following screw torque screw CAUTION Static electricity can damage the electronic components inside the computer Discharge static electricity by touching the metal cage of the computer before touching any internal parts or electronic components WARNING A Never open the cover with the power cord attached or power applied You may damage your computer or be injured from the spinning fan blades 2 Tu rn off the computer 3 Disconnect all peripherals and cables from the front and the back of the computer Disconnect the power cord last Avoid touching sharp edges inside the computer NOTE Computer features may vary by model 2 537489 001 Removing and Replacing an Add In Card
