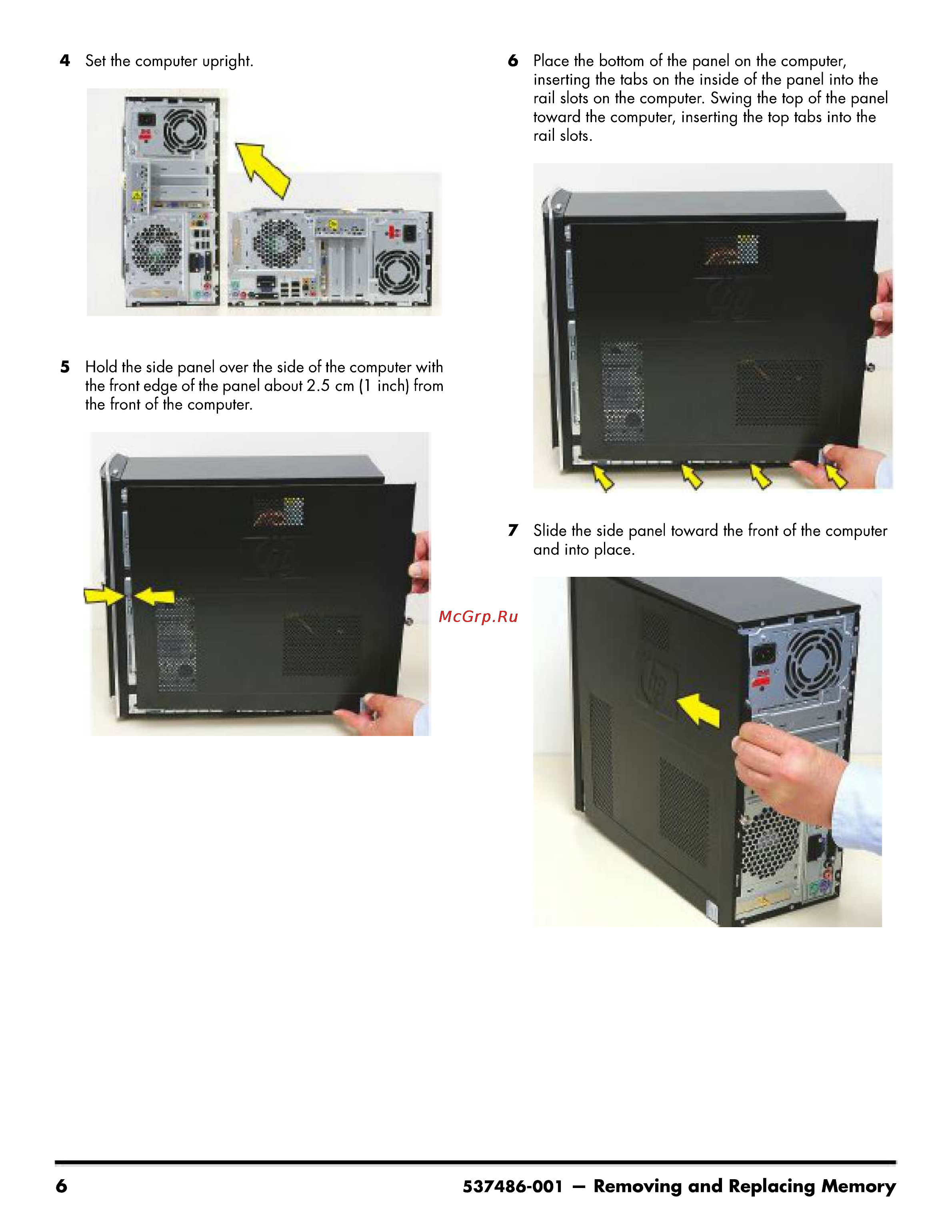

4 Set the computer upright 6 Place the bottom of the panel on the computer inserting the tabs on the inside of the panel into the rail slots on the computer Swing the top of the panel toward the computer inserting the top tabs into the rail slots 5 Hold the side panel over the side of the computer with the front edge of the panel about 2 5 cm 1 inch from the front of the computer 7 Slide the side panel toward the front of the computer and into place 6 537486 001 Removing and Replacing Memory
