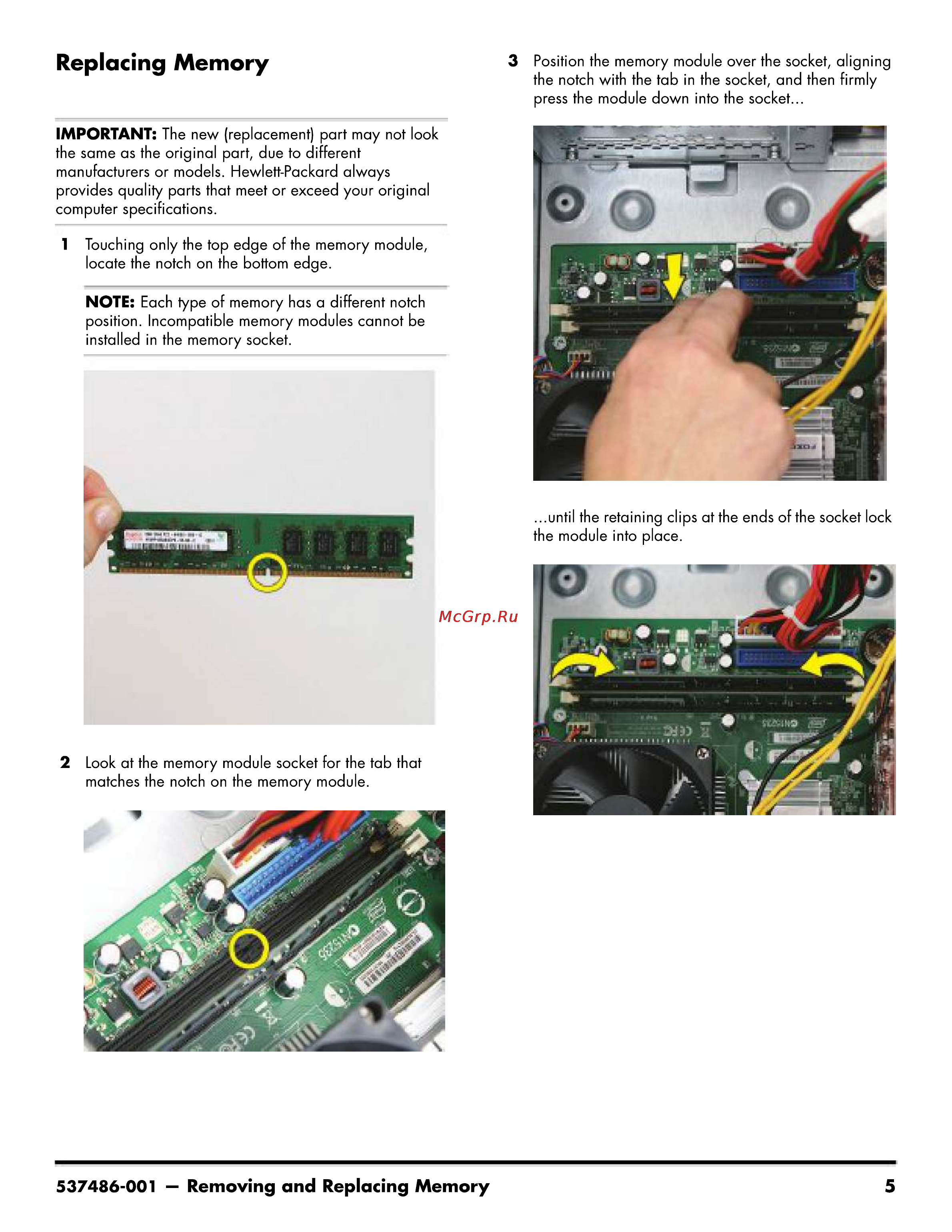

Replacing Memory 3 Position the memory module over the socket aligning the notch with the tab in the socket and then firmly press the module down into the socket IMPORTANT The new replacement part may not look the same as the original part due to different manufacturers or models Hewlett Packard always provides quality parts that meet or exceed your original computer specifications 1 Touching only the top edge of the memory module locate the notch on the bottom edge NOTE Each type of memory has a different notch position Incompatible memory modules cannot be installed in the memory socket until the retaining clips at the ends of the socket lock the module into place 2 Look at the memory module socket for the tab that matches the notch on the memory module 537486 001 Removing and Replacing Memory 5
