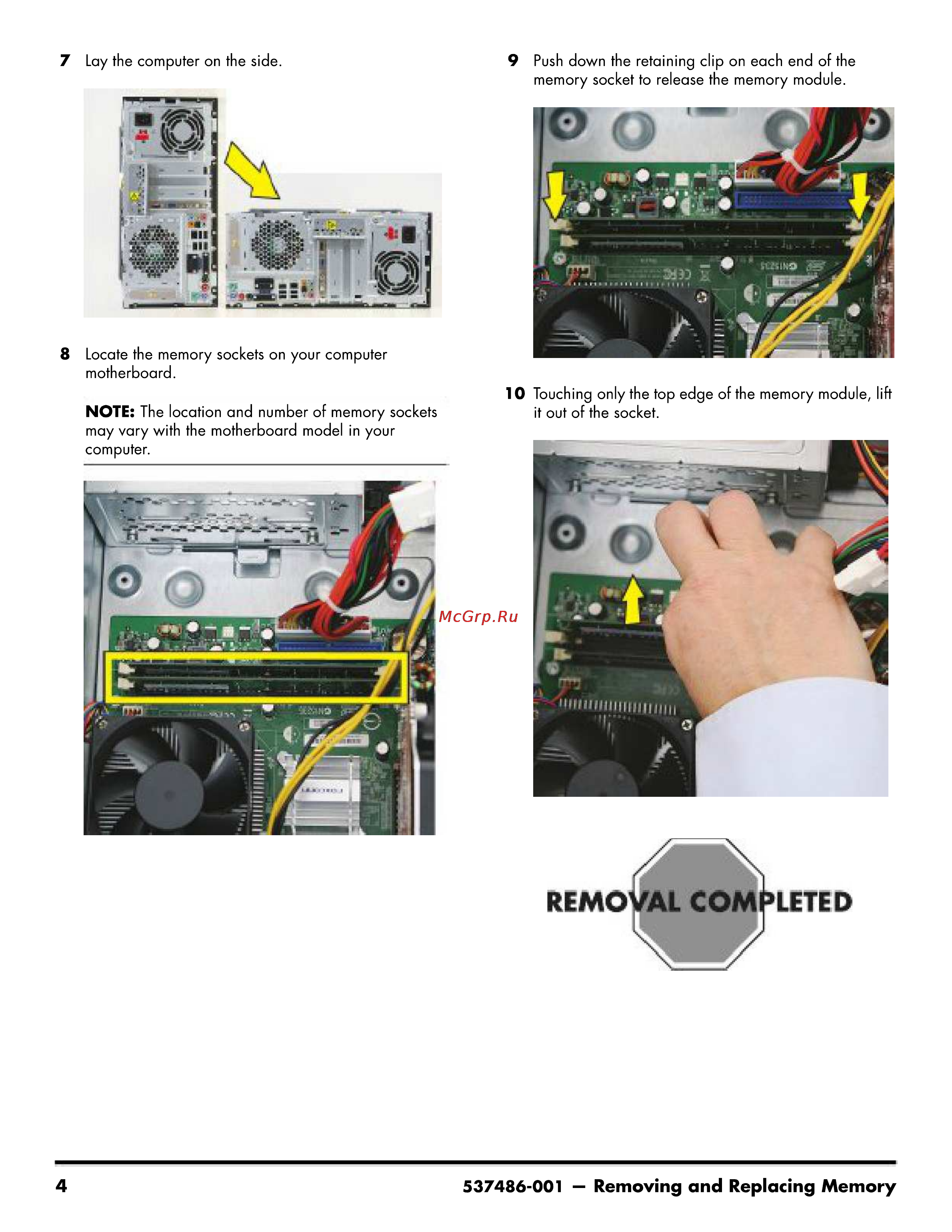

7 Lay the computer on the side 9 Push down the retaining clip on each end of the memory socket to release the memory module 8 Locate the memory sockets on your computer motherboard 10 Touching only the top edge of the memory module lift NOTE The location and number of memory sockets it out of the socket may vary with the motherboard model in your computer REMOVAL COMPLETED 4 537486 001 Removing and Replacing Memory
