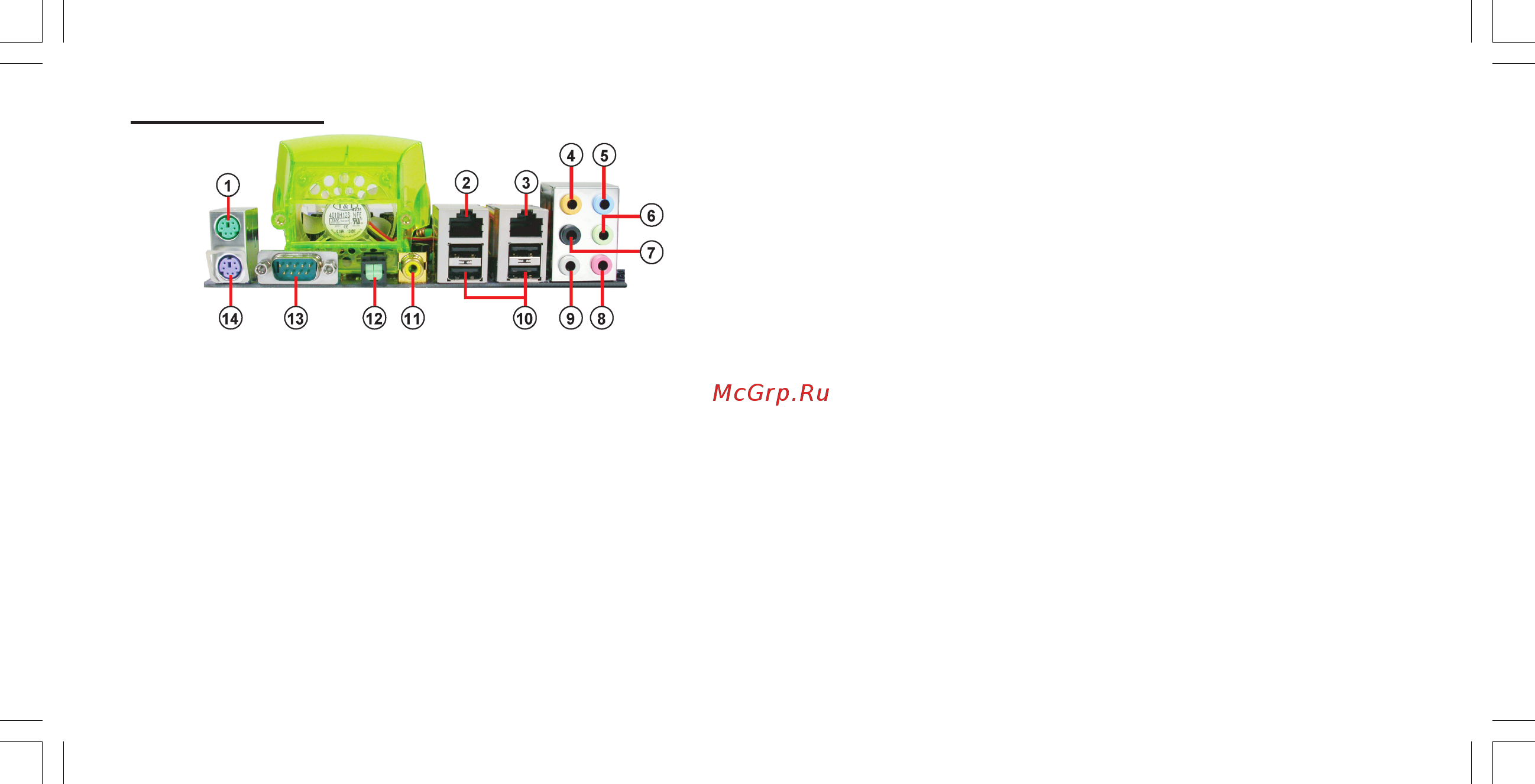

1.8 Rear Panel
The function of the jack is microphone input rear.
9. Side Surround Jack *
This jack connects a tape player or other audio sources. In 8-channel
mode, the function of this jack is Side Surround speaker out.
10. USB 2.0 ports 1 ~ 4
These four Universal Serial Bus (USB) ports are available for
connecting USB 2.0.
11. Coaxial S/PDIF output port
This jack connects to external digital audio output devices.
12. Optical S/PDIF output port
This jack connects to external digital audio output devices
13. Serial port
This 9-pin COM1 port is for serial devices.
14. PS/2 keyboard port
This 6-pin connector is for connecting PS/2 keyboard.
1. PS/2 mouse port
This 6-pin connector is for connecting PS/2 mouse.
2. RJ-45 port
This port allows connection to a Local Area Network (LAN)
through a network hub. It supports up to Gigabit tranfer rate.
3. RJ-45 port
This port allows connection to a Local Area Network (LAN)
through a network hub. It supports up to 10/100 Mbps transfer rate.
4. Center/Bass Jack *
This jack connects a tape player or other audio sources. In 8-channel
mode, the function of this jack is Center/Bass speaker out.
5. Line in jack *
The function of the jack is microphone input.
8. Microphone in Rear jack *
6. Front Out Jack *
This jack connects a tape player or other audio sources. In 8-channel
mode, the function of this jack is Front speaker out.
7. Back Surround Jack *
This jack connects a tape player or other audio sources. In 8-channel
mode, the function of this jack is Back-Surround speaker out.
