2-6
4-pin ATX power connector
2.9 Powering up
Turn on the power to the monitor and the computer. If necessary,
format your hard disk drive and install an operating system.
Users please note that when installing 4-pin
power cable, the latches of power cable
and the ATX12 match perfectly.
24-pin power cable
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latch of power cable connector
clings to the right side of the ATX1 con-
nector latch.

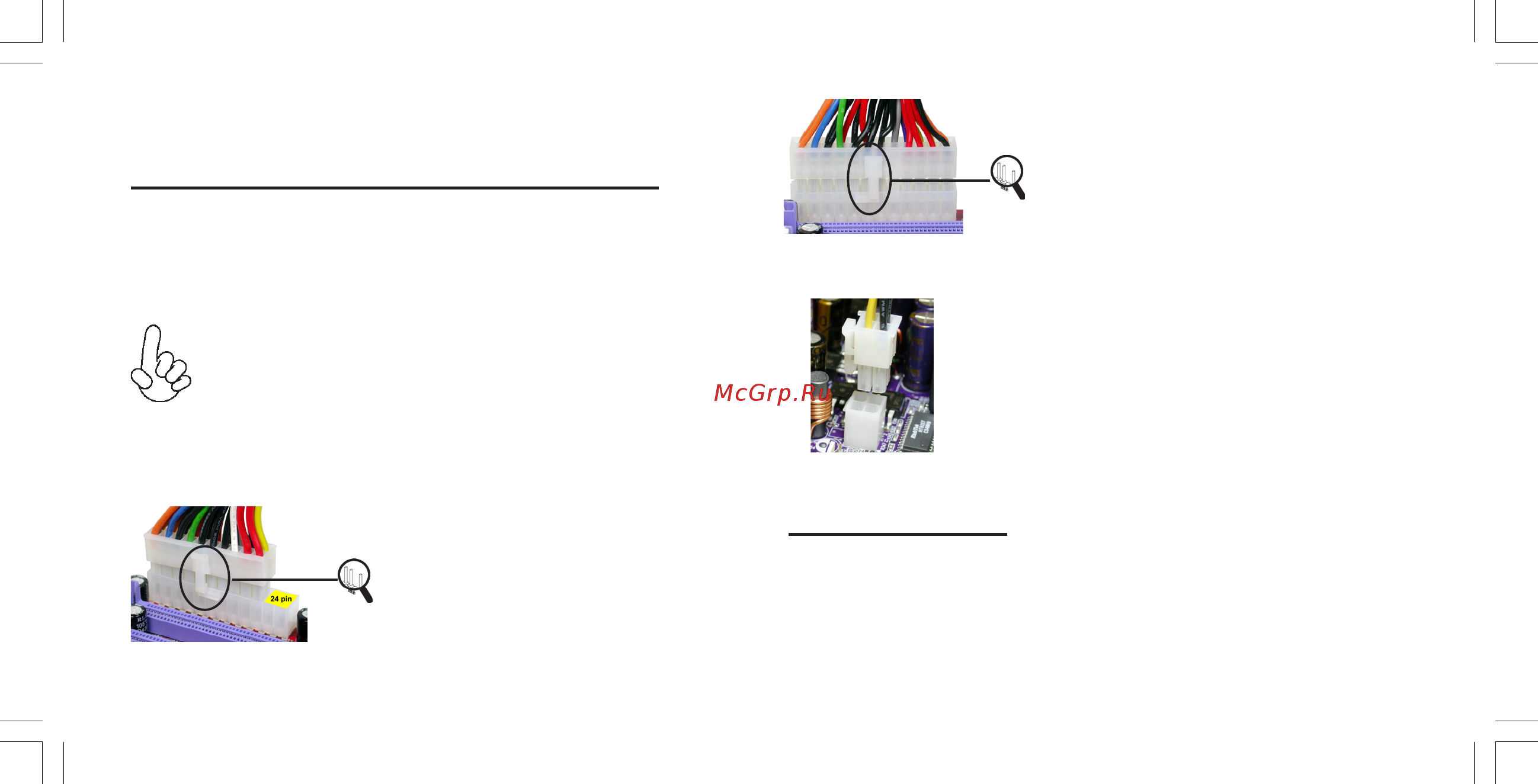

2.8 Connecting the Power supply cable
Connecting 20/24-pin power cable
Users please note that the 20-pin and 24-pin power cables can
both be connected to the ATX1 connector. With the 20-pin power
cable, just align the 20-pin power cable with the pin 1 of the
ATX1 connector. However, using 20-pin power cable may
cause the system to become unbootable or unstable be-
cause of insufficient electricity.
The ATX1 power connector is keyed for proper insertion. There are two
connectors for 4-pin and 24-pin ATX power cable. The plastic clip on
the power connector should lock over the plastic tab on the
motherboard power connector.
With ATX v1.x power supply, users please
note that when installing 20-pin power
cable, the latche of power cable clings to
the left side of the ATX1 connector latch.
20-pin power cable
3. Please note that the graphics card driver supports Windows 2000/XP only.
4. Make sure to connect a 4-pin ATX power cable to the ATX4P1; otherwise, the
system will be unstable.
