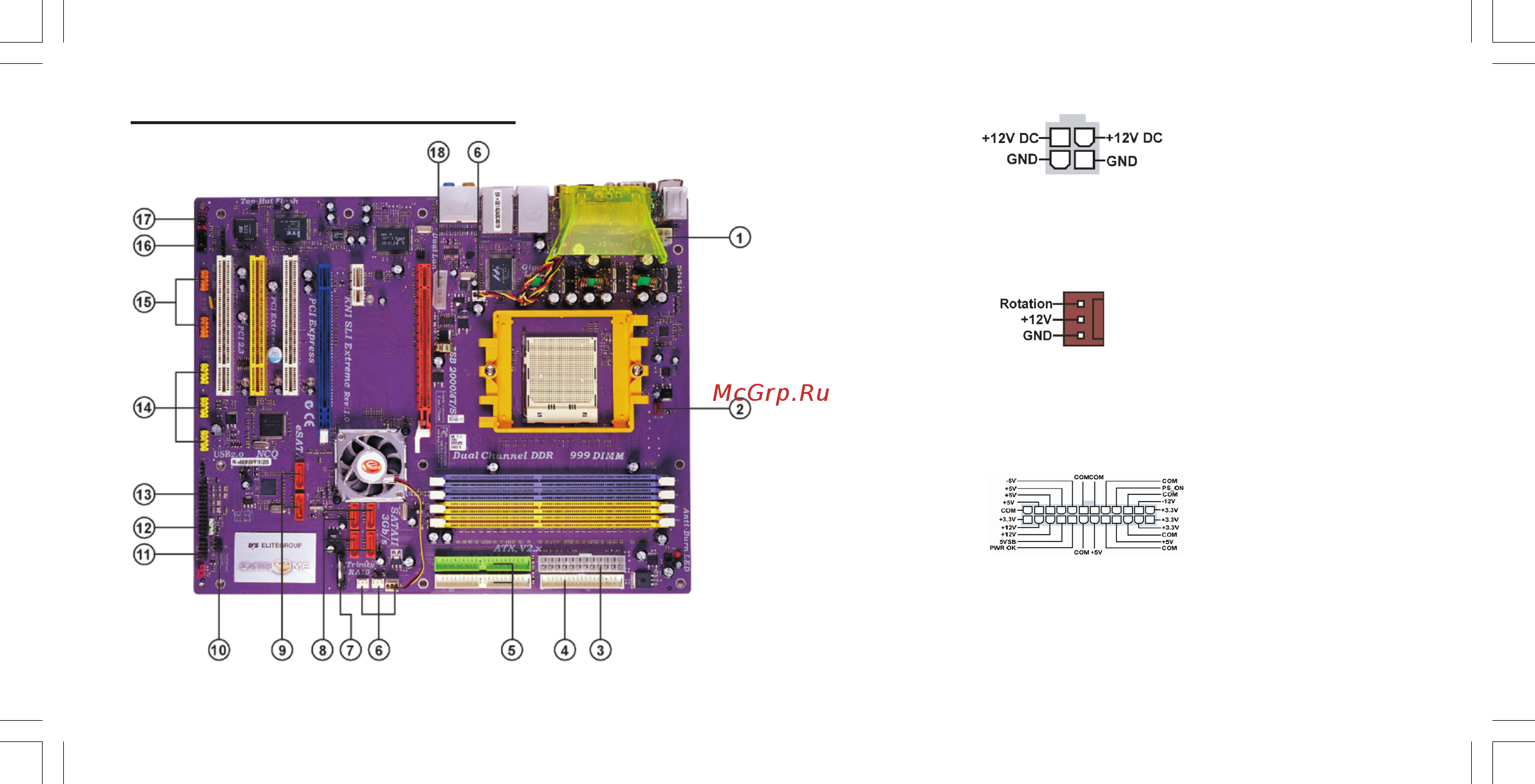

1.6 Headers and Connectors
1. ATX12V
This connector supplies the CPU operation voltage (Vcore). Don’t
forget to connect the 4-pin ATX 12V connector, otherwise the
system cannot boot up.
2. CPUFAN1 (CPU Fan Connector, 3 pin)
Please note, a proper installation of the CPU cooler is essential to pre-
vent the CPU from running under abnormal condition or damaged by
overheating. The CPU fan connector supports maximum current up to
600 mA.
3. ATX 1 (ATXPWR, 24 pin)
AC power cord should only be connected to your power supply until
after ATX power cable and other related devices are firmly connected to
the motherboard. The minimum recommended power is 300W. If not,
the system may become unstable or may not even boot up.
