2-5

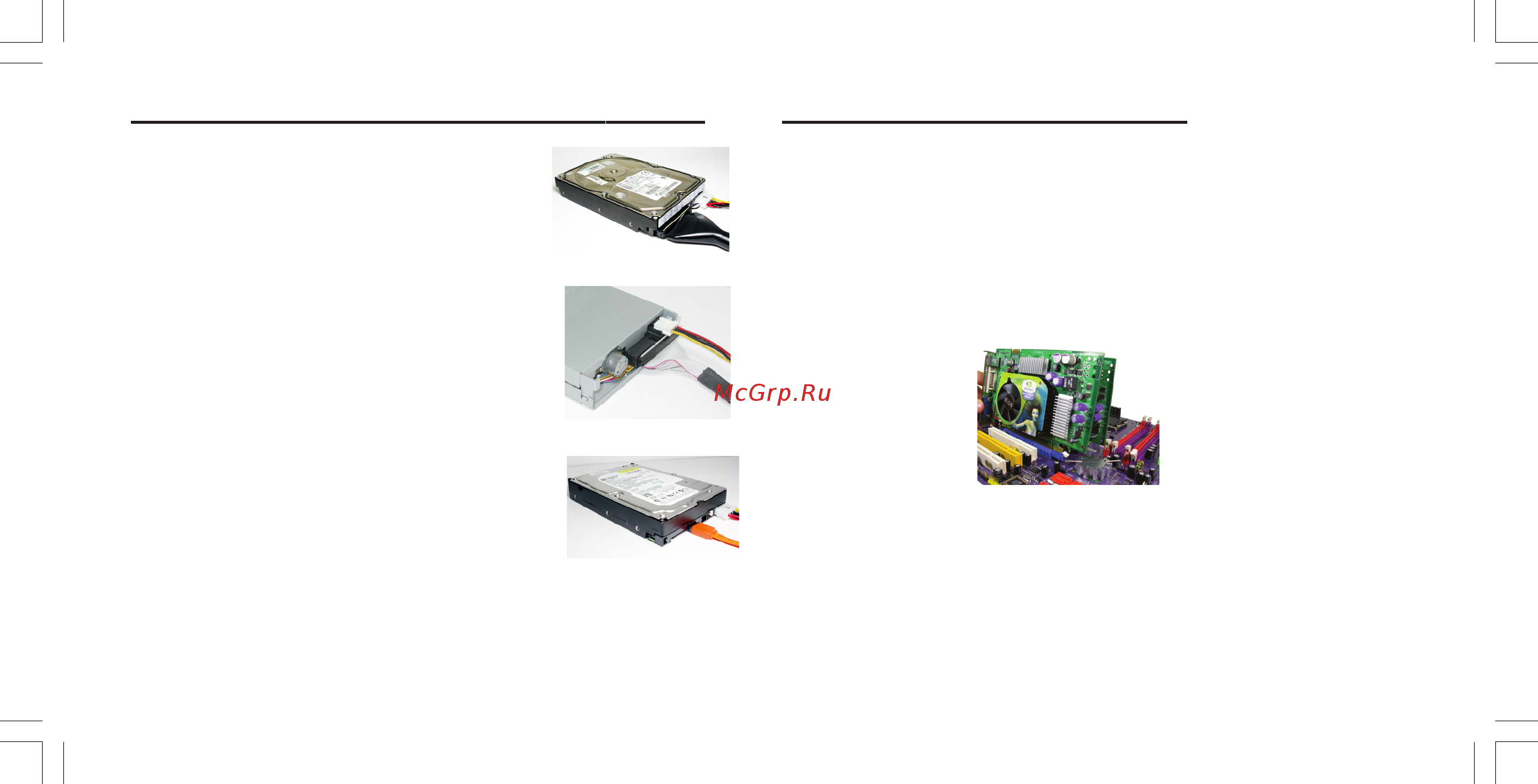

2.6 Connecting IDE, Floppy & SATA Device
1. If installing two IDE devices on the same
ribbon cable, one device must be set to
“master” and the other to “slave.” Check
the accompanying documents for the
master/slave settings of IDE Devices, ie.:
the hard disk and CD-ROM drives and then
set their jumper caps accordingly.
2. Mount the drives in the case.
3. Connect the floppy disk ribbon cable and
power cable.
4. Connect the IDE ribbon cable and power
cable.
IDE Hard Disk
Floppy Disk Device
SATA Hard Disk
2.7 Installing Expansion cards
1. Open the chassis and then remove the slot bracket from the case
where you will be installing the expansion cards.
2. Install your graphics card in the proper slot by pressing the card
firmly into the slot.
3. Drive in the screw to secure the slot bracket of the expanson card.
4. Replace your computer’s chassis cover.
5. Power on the computer, if necessary, set up BIOS utility of
expansion card from BIOS.
6. Install related driver to complete the installation.
Installing two graphics cards
Notes: 1. The two PCIE x16 slots (SLI mode: 8x+8x; single PCI-E is 8x mode) run in two
modes. With only one PCI Express Graphics card, install it onto PCIEX1 slot
by default. Having two PCI Express Graphics cards at hand, set them up onto
PCIEx1 and PCIEX2 slots simultaneously for SLI mode.
2. The Scalable D.G.E supports a four-monitor configuration when these two
PCIE x16 slots are working simultaneously.
