ECS Elitegroup KN1 SLI Extreme [21/88] Installing memory module
![ECS Elitegroup KN1 SLI Extreme [21/88] Installing memory module](/views2/1212430/page21/bg15.png)
2-2

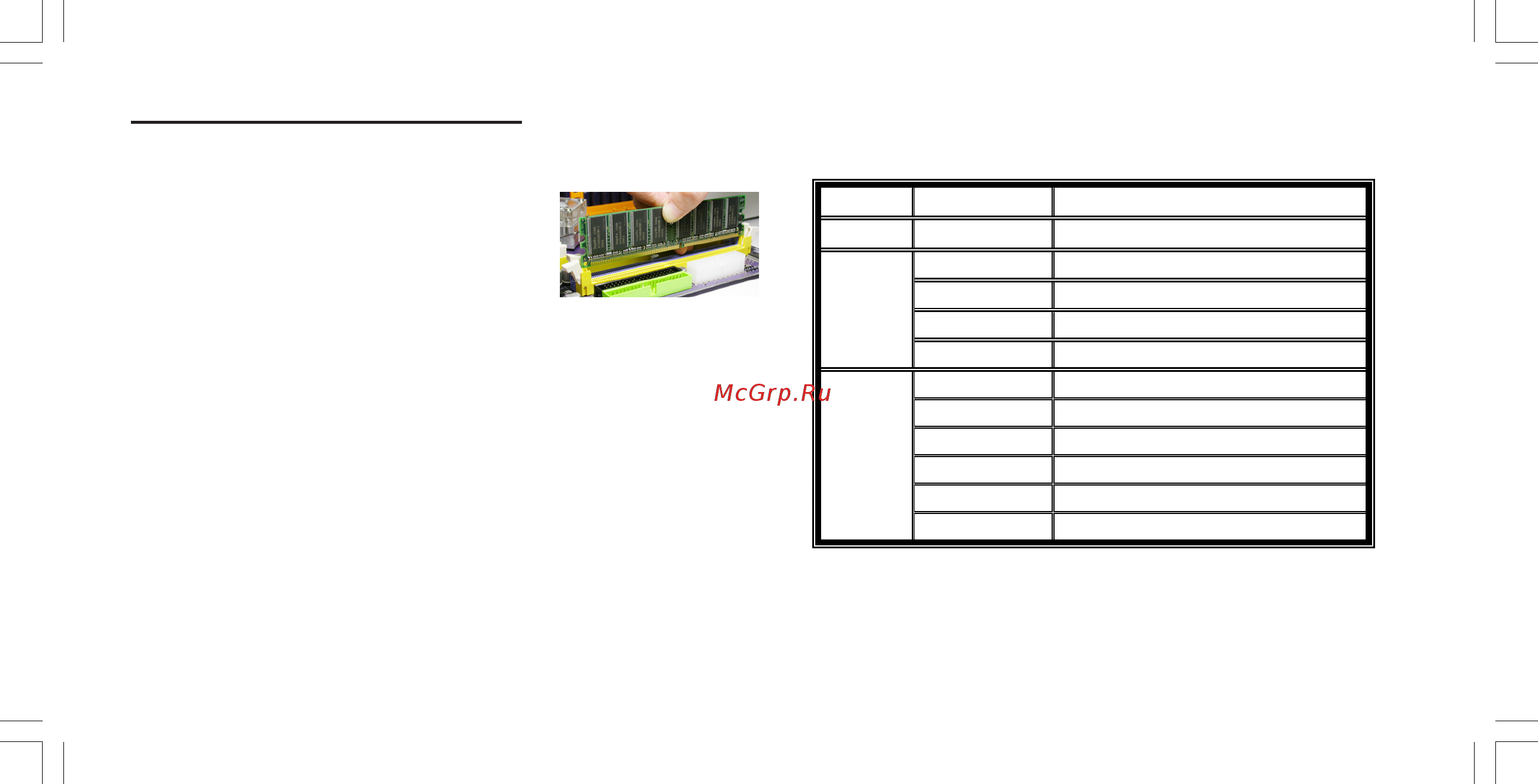

2.3 Installing Memory Module
1. Push the latches on each side of the DIMM
slot down.
2. Check that the cutouts on the DIMM module
edge connector match the notches in the
DIMM slot.
3. Install the DIMM module into the slot and
press it firmly down until it seats correctly.
The slot latches are levered upwards and latch
on to the edges of the DIMM.
Table A: DDR (memory module) QVL (Qualified Vendor List)
The following DDR400 memory modules have been tested and qualified
for use with this motherboard.
Size Vendor Module Name
128MB
Infineon HYS64D16301GU-5-B
Infineon HYS64D32300GU-5-B
Micron MT16VDDT3264AG-403B2
Micron MT8VDDT3264AG-40BC4
256MB
NANYA NT256D64S88B1G-5T
Apacer A2S56D30ATP
Apacer HYB25D256800BT-5B
Apacer V58C2256804SAT5
Infineon HYS64D64320HU-5-C
NANYA NT512D64S8HB1G-5T
512MB
SAMSUNG M368L6423DTM-CC4
