2-4
2.5 Installing Motherboard in a case
1. Place the motherboard over the mounting brackets.
2. Secure the motherboard with screws where appropriate.
3. Double check to make sure that the underside of the motherboard is
not touching the case or else shorting may occur and make sure that
the slots and I/O connectors line up with the holes on the back of
the case.
4. Case LED leads are labeled, connect the leads to the panel header on
the motherboard.

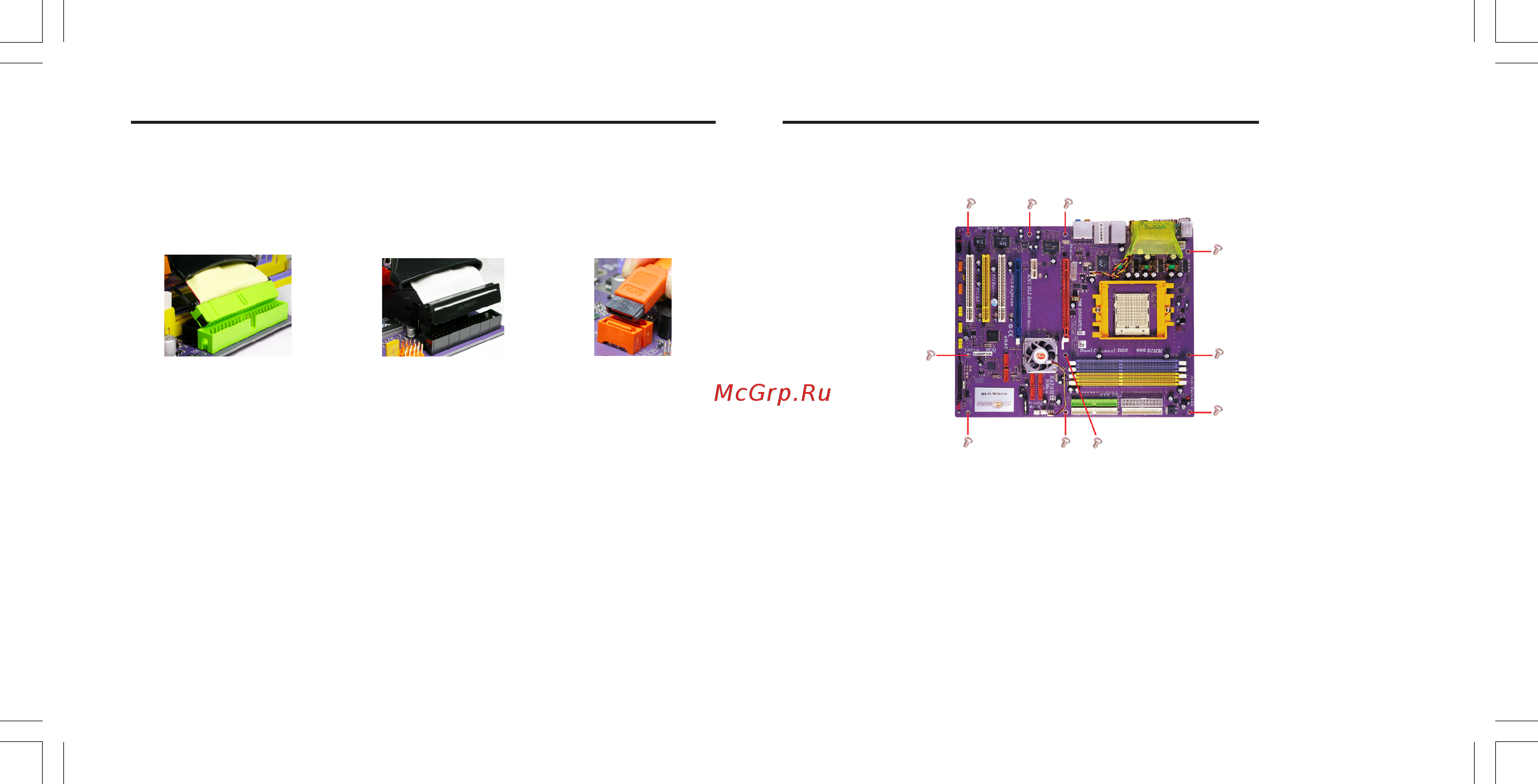

2.4 Connecting IDE, Floppy and SATA cable
1. Connect the IDE/Floppy disk ribbon cable. Make sure the side of
the cable with the red stripe on it is plugged into pin 1 side of the
disk connector.
2. Connect the SATA cable to the SATA hard drive or the connector
on the motherboard.
IDE connector FDD connector SATA connector
