1-8

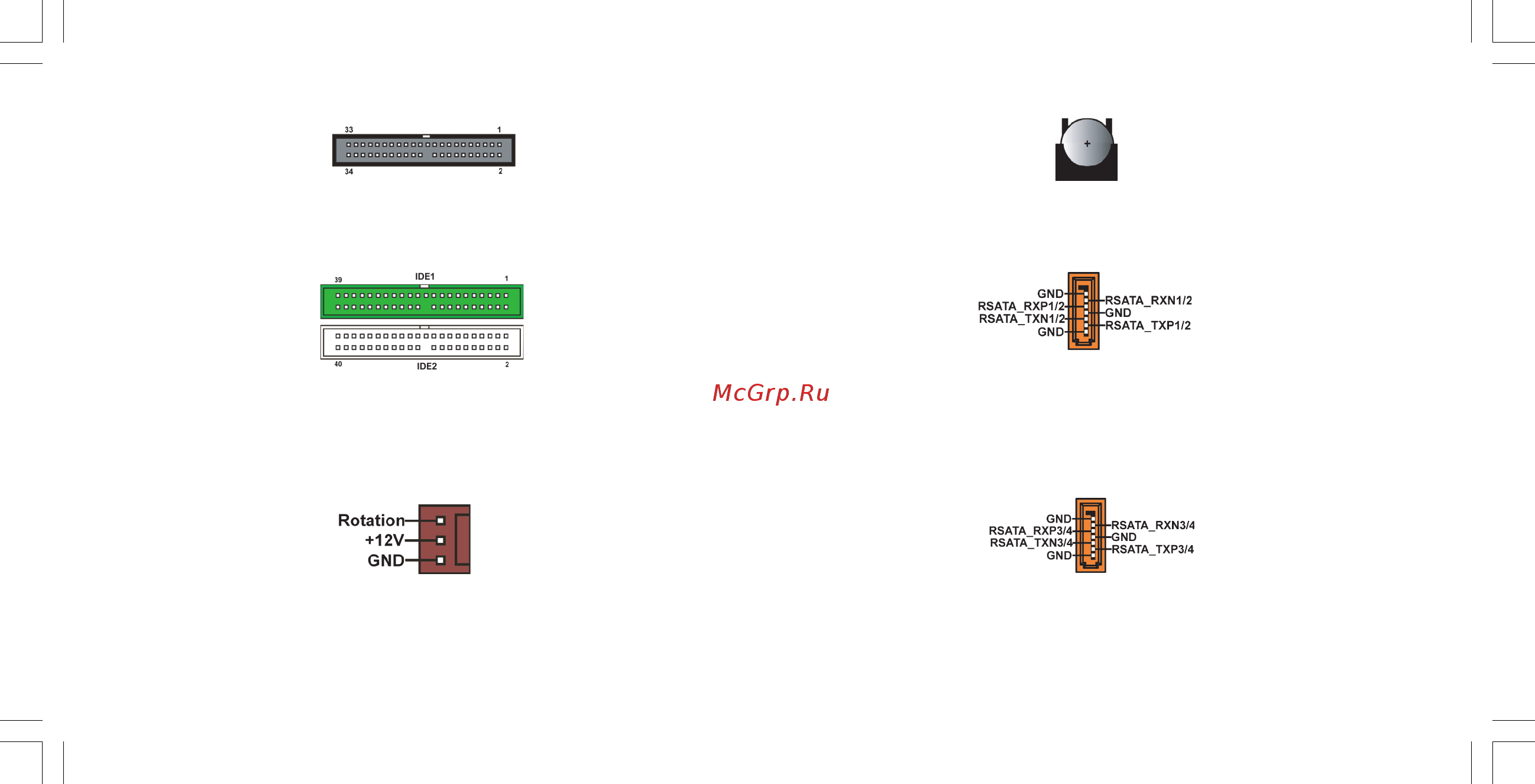

5. IDE 1/2 (IDE1/IDE2 Connectors, 40-1 pin, Green and White)
These are supported by nForce4 SLI. Please connect the first hard disk to
IDE 1 and connect the CD-ROM to IDE 2. The streamline IDE cable
must be the same side with the Pin 1.
6. CASFAN1~3, NBFAN1 (Cooling Fan Connectors, 3 pin)
These connectors allow you to link with the cooling fans to lower the
system temperature and the nForce4 SLI temperature.
Danger of explosion if battery is incorrectly replaced. Replace only with
the same of equivalent type recommended by the manufacturer.
7. Battery4. FDD1 (Floppy Connector, 34-1 pin,)
Please connect the floppy drive ribbon cables to FDD. It supports
360K, 12M, 720K, 1.44M and 2.88M bytes floppy disk types.
8. SATA 1/2/3/4 (Serial ATA Connectors, 7 pin, Orange)
These next generation connectors are delivered by nForce4 SLI support-
ing four Serial ATA hard disks. Each channel can operate at 1.5 Gb/s or
3.0 Gb/s independently from the other channels. Full Tagged Command
Queuing (TCQ) and Native Command Queuing (NCQ) are supported.
These two Serial ATA Generation 2 connectors, with transfer rate of
3.0 Gb/s, supporting SATA hard disks that you may configure as a
RAID set. Through the onboard Sil3132 RAID controller you may
create a RAID 0 or RAID 1 configuration. Sil3132 also supports NCQ
9. SATA 5/6 (Serial ATA RAID Connectors, 7 pin)
