1-9

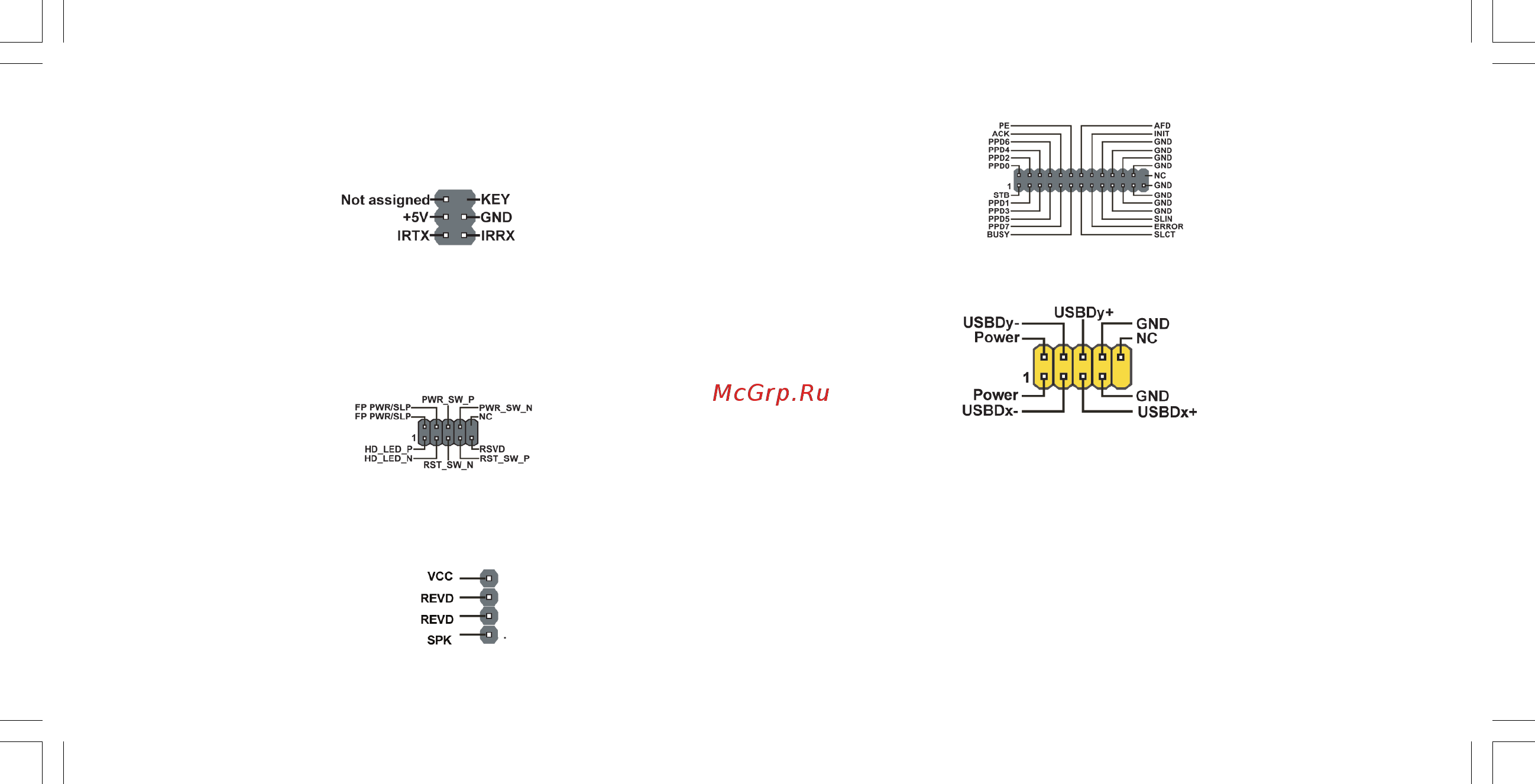

13. LPT1 (Parallel Port Header, 26-1 pin, Black)
Connect the printer, scanner, or other device to this header.
14. USB 3/4/5 (Front USB Headers, 10-1 pin, Yellow)
If the USB ports on the rear panel are inadequate, three USB headers are
available for additional USB ports. The USB headers complies with USB 2.0
specification that supports up to 480 Mbps connection speed. This speed
advantage over the conventional 12 Mbps on USB 1.1.
The front panel connector provides a standard set of switch and LED
connectors commonly found on ATX or micro-ATX cases.
11. Panel1 (Front Panel Header, 10-1 pin)
(Native Command Queuing), PM (Port Multipliers), and eSATA (External
SATA) function.
The motherboard supports an infrared (IR1) data port. Infrared ports
allow the wireless exchange of information between your computer
and similarly equipped devices such as printers, laptops, Personal
Digital Assistants (PDAs), and other computers.
10. IR1 (Infrared Header, 6-1 pin, Black)
12. SPK1 (Speaker Header, 4-pin)
Connect the case speaker cable to the header.
