1-10

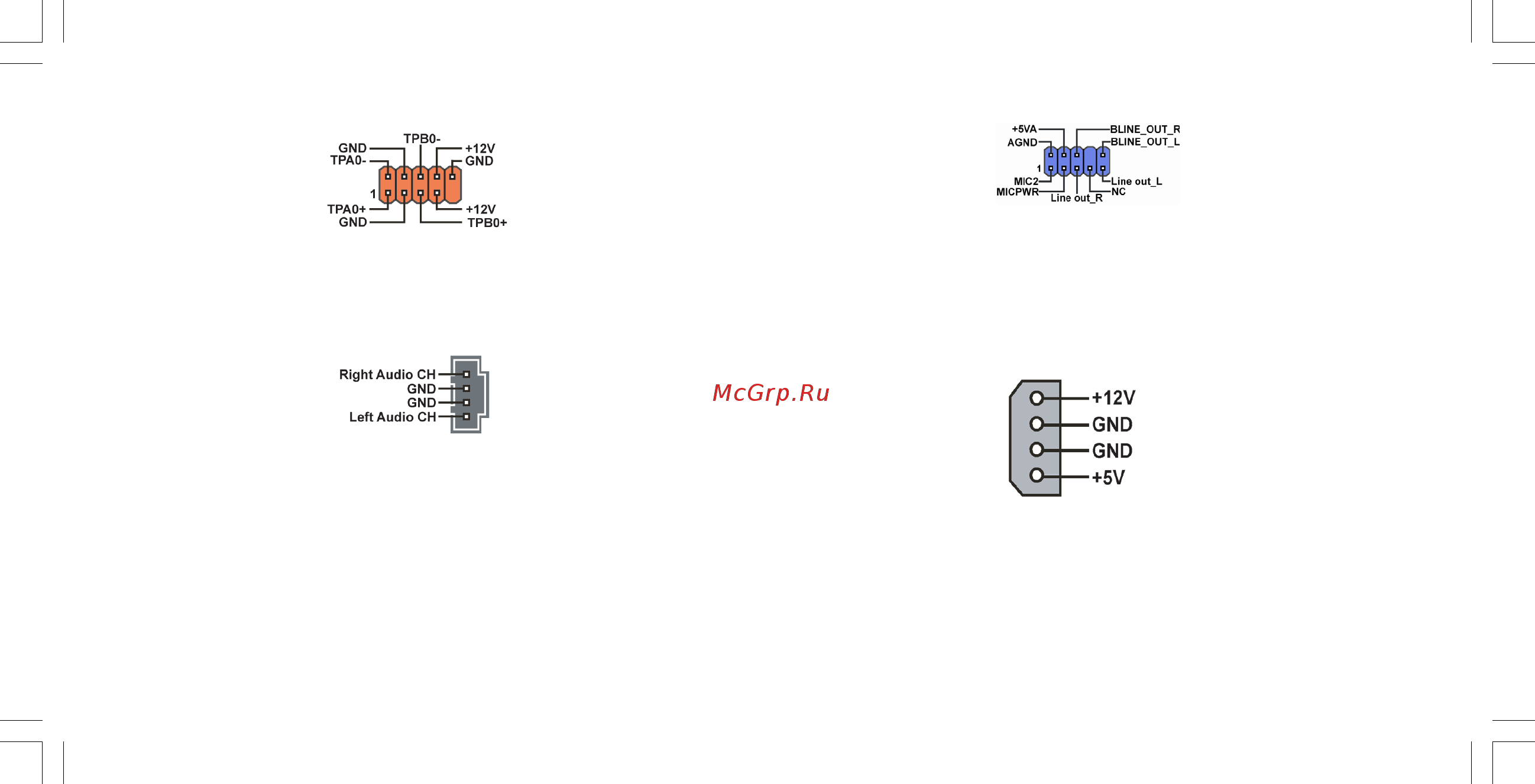

18. ATX4P1 (Auxiliary power connector for graphics cards)
ATX4PI power connector is for power supply plug; it offers adequate
supply of power to the motherboard. The power supply plug is designed
to fit connector in only one orientation. When installing two graphics
cards, make sure to connect the 4-pin power plug to the ATX4PI. If not,
the system may become unstable.
17. Audio1 (Front Panel Audio Header, 10-1 pin)
This is an interface for the Intel front panel audio cable that allows
convenient connection and control of audio devices. By default, the
pins labeled LINE OUT_R/BLINE_OUT_R and the pins LINE
OUT_L/BLINE_OUT_L are shorted with jumper caps. Remove the
caps only when you are connecting the front audio cable.
Attach the 10-1 pin 1394 cable plug from the device to this connector.
You may also connect a 1394-compliant internal hard disk to this con-
nector.
15. 1394A1/A2 (10-1 pin Headers, Orange)
16. CDIN1 (CD In Connector, 4 pin)
Connect CD-ROM or DVD-ROM audio out to the connector.
