5-2

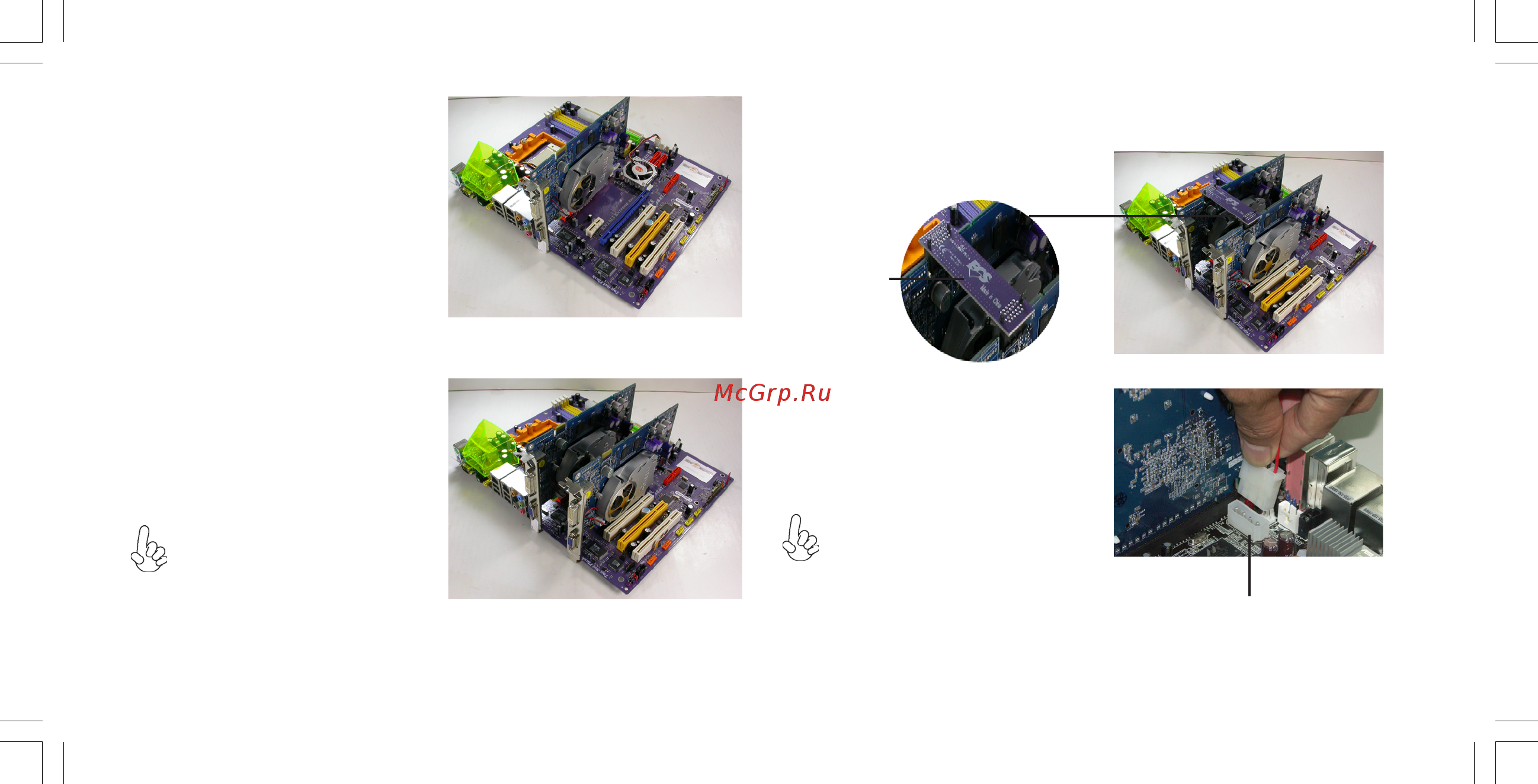

2. Insert one graphics card into
the orange slot labeled PCI_E1.
Make sure that the card is properly
seated on the slot.
3. Insert the second graphics card
into the blue slot labeled
PCI_E2. Make sure that the
card is properly seated on the slot.
If required, connect an auxiliary
power source to the PCI Express
graphics cards.
4. Align and insert the SLI card
bridge to the goldfinger on each
graphics card. Make sure that the
connector is firmly in place.
SLI card bridge
5. Connect a 4-pin ATX power cable
to the auxiliary 4-pin power
connector labeled ATX4P1 on this
motherboard.
Make sure to connect a 4-pin ATX
power cable to the
ATX4P1
;
otherwise, the system will be
unstable.
ATX4P1
