Hypertherm HPR130XD [243/263] Optional arcglide edgepro multi system interface

Hypertherm HPR130XD [243/263] Optional arcglide edgepro multi system interface
7-23
Unit 1
and/or EdgePro Module(s)
ArcGlide THC
041993
CONTROL BOARD
1 2 3 4
S100
1 2
J303
3 4 321 4
J300A J1
ArcGlide Ethernet Cable
Unit 2
Unit 3
Unit 4
CNC Interface Cable
Serial ID
Dipswitch
Machine Motion
Jumper Block
J106
21
J107
1 2
Notes:
1) For the 041993 control board, set Serial ID (S100), and Machine Motion (J303) as shown.
Jumpers J106 and J107 should be installed.
All 041993 DIPSWITCH and jumper settings are the same; serial IDs are determined
by the 141131 board setting.
2) For a single system installation, set SW1 on the 141131 board as shown in Unit 1.
3) For a two system installation, set SW1 on the 141131 boards as shown in Units 1 through 2.
4) For a three system installation, set SW1 on the 141131 boards as shown in Units 1 through 3.
5) For a four system installation, set SW1 on the 141131 boards as shown in Units 1 through 4.

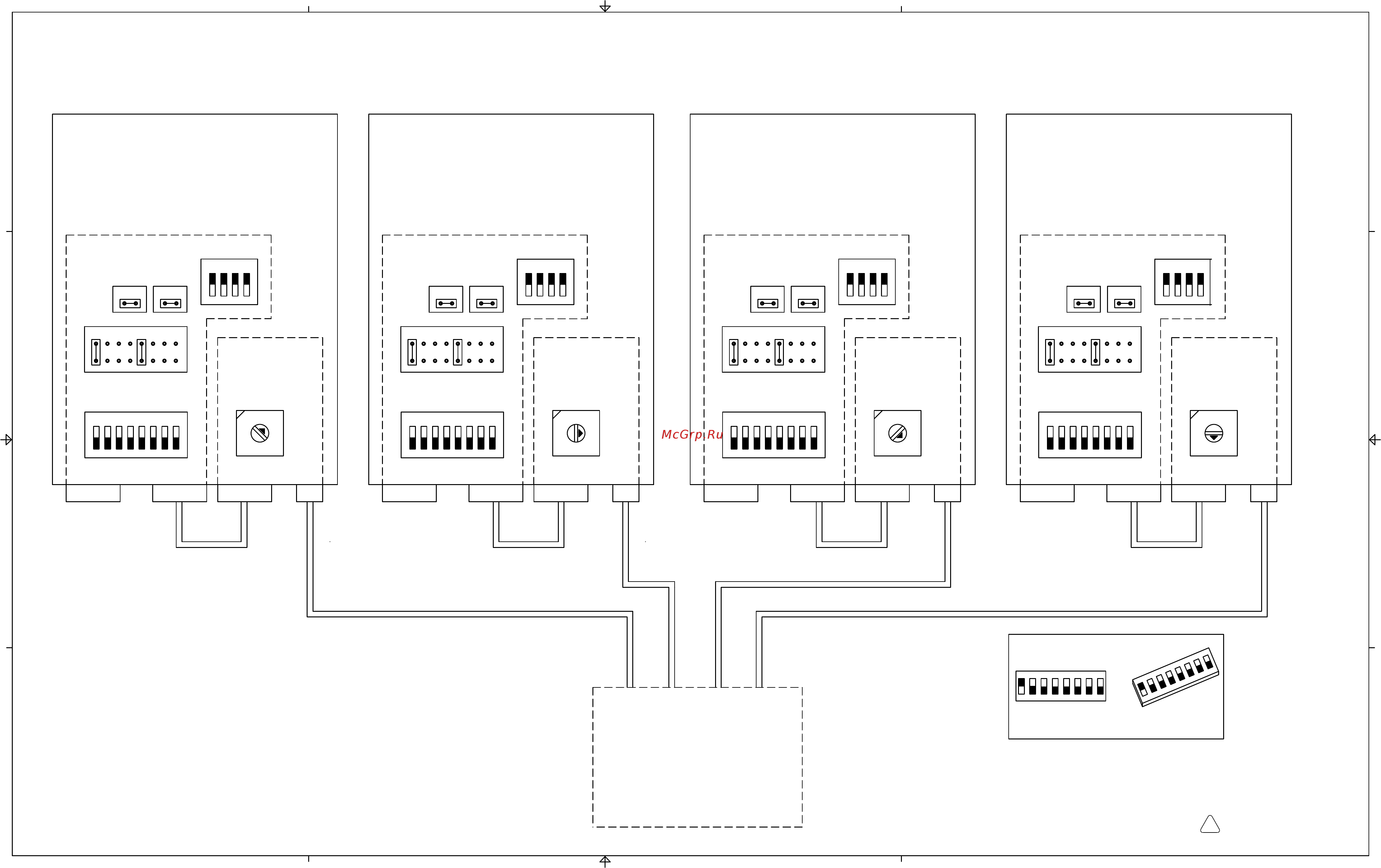

Optional ArcGlide/EdgePro Multi-System Interface
5 6 7 8
ON
J300B J5
141131
ETHERNET
INTERFACE
BOARD
0
7
1
5
4
6
2
3
SW1
UNIT ADDRESS
1 2 3 4
J1
Serial ID
Dipswitch
Machine Motion
Jumper Block
21 1 2
5 6 7 8
ON
J5
0
7
1
5
4
6
2
3
SW1
UNIT ADDRESS
1 2 3 4
J1
Serial ID
Dipswitch
Machine Motion
Jumper Block
21 1 2
5 6 7 8
ON
J5
0
7
1
5
4
6
2
3
SW1
UNIT ADDRESS
1 2 3 4
J1
Serial ID
Dipswitch
Machine Motion
Jumper Block
21 1 2
5 6 7 8
ON
J5
0
7
1
5
4
6
2
3
SW1
UNIT ADDRESS
CNC Interface Cable CNC Interface Cable CNC Interface Cable
ArcGlide Ethernet Cable
ArcGlide Ethernet Cable ArcGlide Ethernet Cable
S100
J303
J300A
J106 J107
J300B
S100
J303
J300A
J106 J107
J300B
S100
J303
J300A
J106 J107
J300B
1 2 3 4
S101
ON
1 2 3 4
S101
ON
1 2 3 4
S101
ON
1 2 3 4
S101
ON
1 2 3 4 321 4
1 2 3 4 321 4
1 2 3 4 321 4
HPR PAC
Dry Cutting System
HPR PAC
Dry Cutting System
HPR PAC
Dry Cutting System
HPR PAC
Dry Cutting System
4 3 2 1
1
A
4 3 2
A
B
C
D
B
C
D
ELEC SCH:HPR130XD POWER SUPPLY
D
013375
SHEET 19 OF 19
Switch 1 is in the On position
Switches 2-8 are in the Off position
S100
1 2 3 4 5 6 7 8
Dipswitch setting example:
21 3 4
5 6 7 8
ON
ON
041993
CONTROL BOARD
141131
ETHERNET
INTERFACE
BOARD
041993
CONTROL BOARD
141131
ETHERNET
INTERFACE
BOARD
041993
CONTROL BOARD
141131
ETHERNET
INTERFACE
BOARD
