Asus ROG ZENITH EXTREME [27/104] Chapter 1

ROG ZENITH EXTREME

1-11

Chapter 1

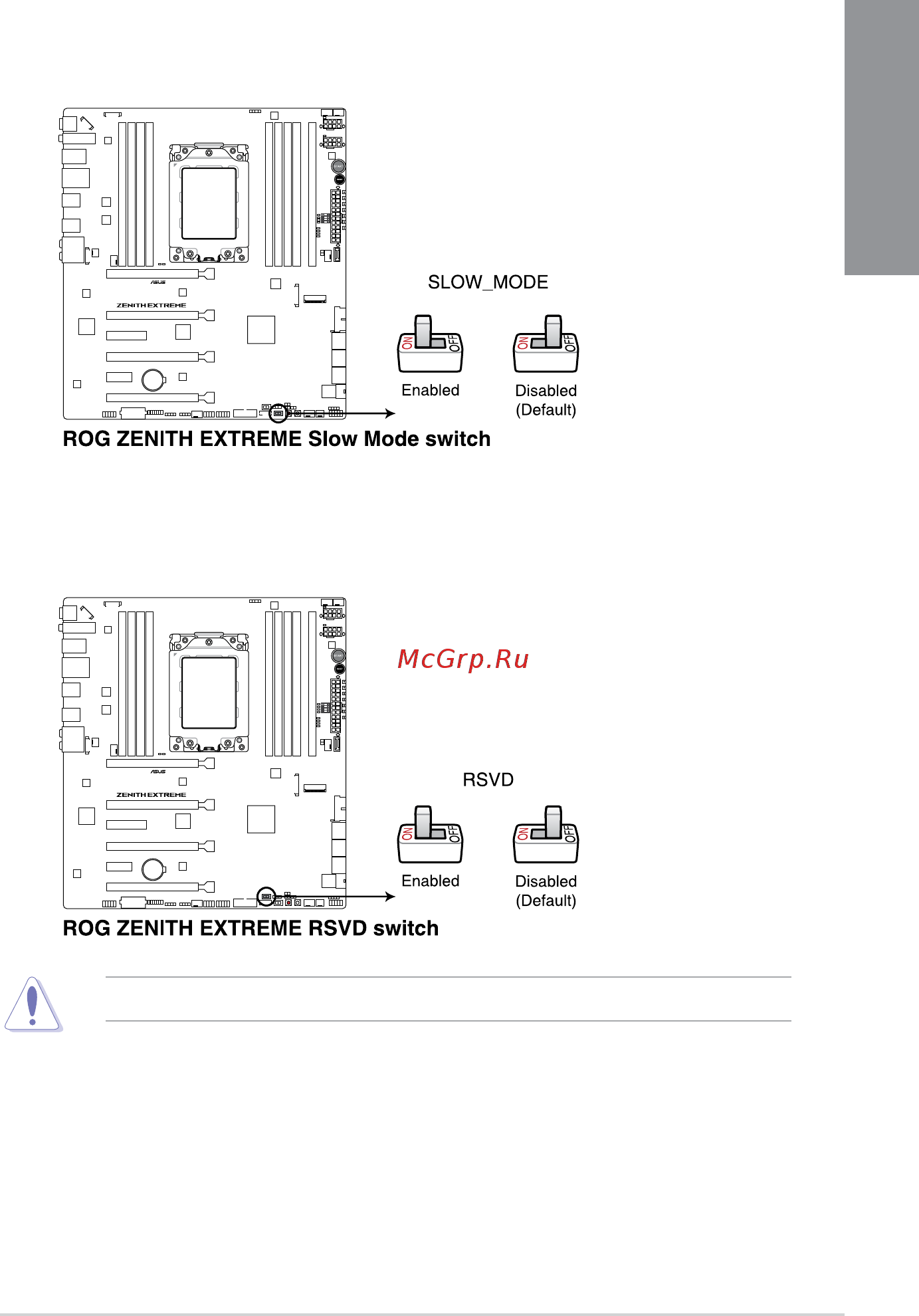

5. Slow Mode Switch (SLOW_MODE)

SlowModeSwitchisemployedduringLN2benching.Thesystemmaycrashdueto

theCPUbeingunstablewhenusingextremeoverclocking,enablingslowmodewill

decreasetheprocessorfrequencyandstabilizethesystem,allowingoverclockersto

keeptrackoftheiroverclockingdata.

6. RSVD switch (RSVD)

ThisswitchisreservedforASUS-authorizedtechniciansonly.

Ensuretosetthisswitchtodisabled,enablingthisswitchmaycausesystemfailure.
