Asus ROG ZENITH EXTREME [75/104] Chapter 3

ROG ZENITH EXTREME

3-11

Chapter 3

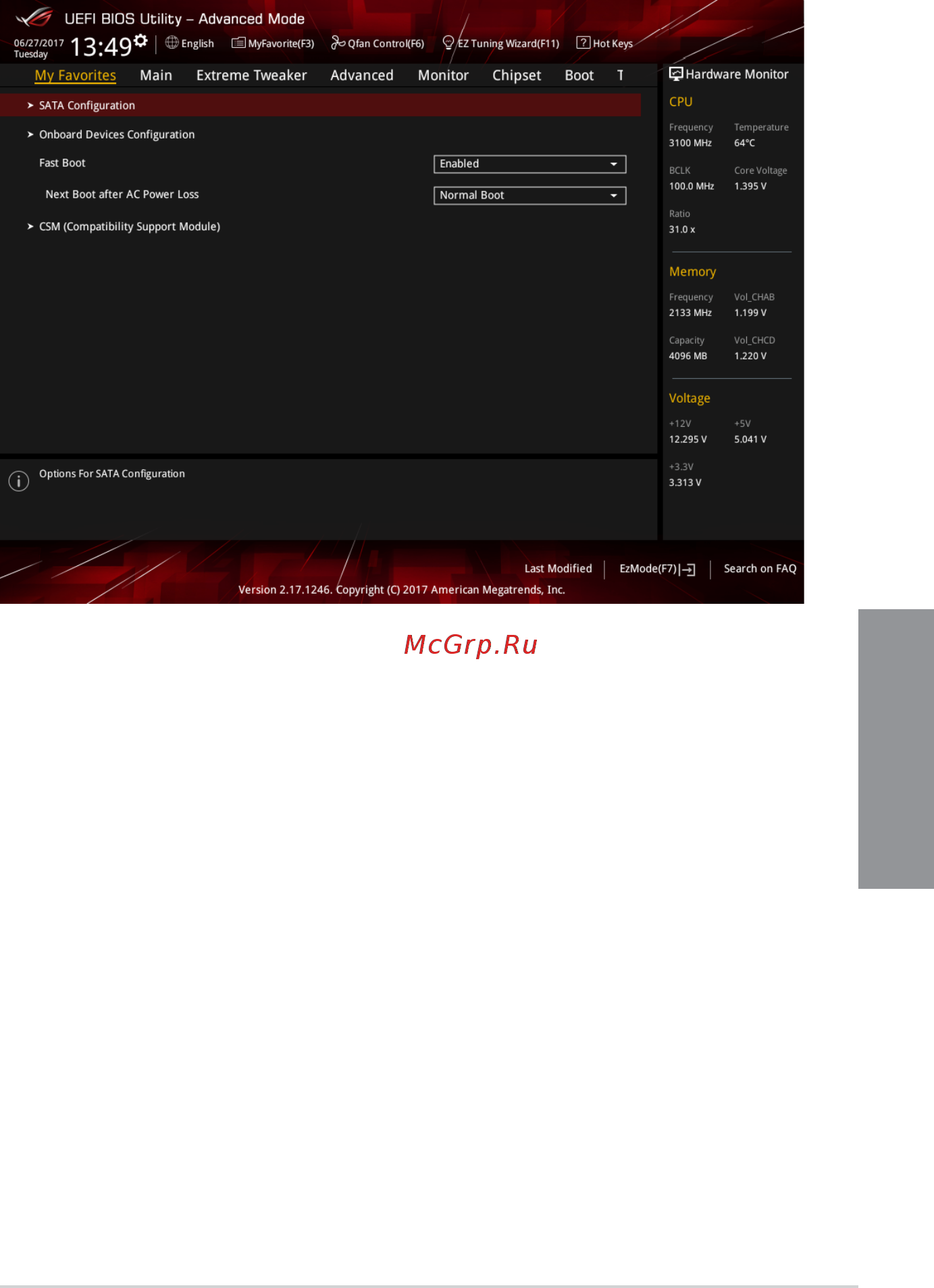

3.3 My Favorites

My Favorites is your personal space where you can easily save and access your favorite

BIOS items.

My Favorites comes with several performance, power saving, and fast boot related items by

default. You can personalize this screen by adding or removing items.
