ROG ZENITH EXTREME
1-25
Chapter 1

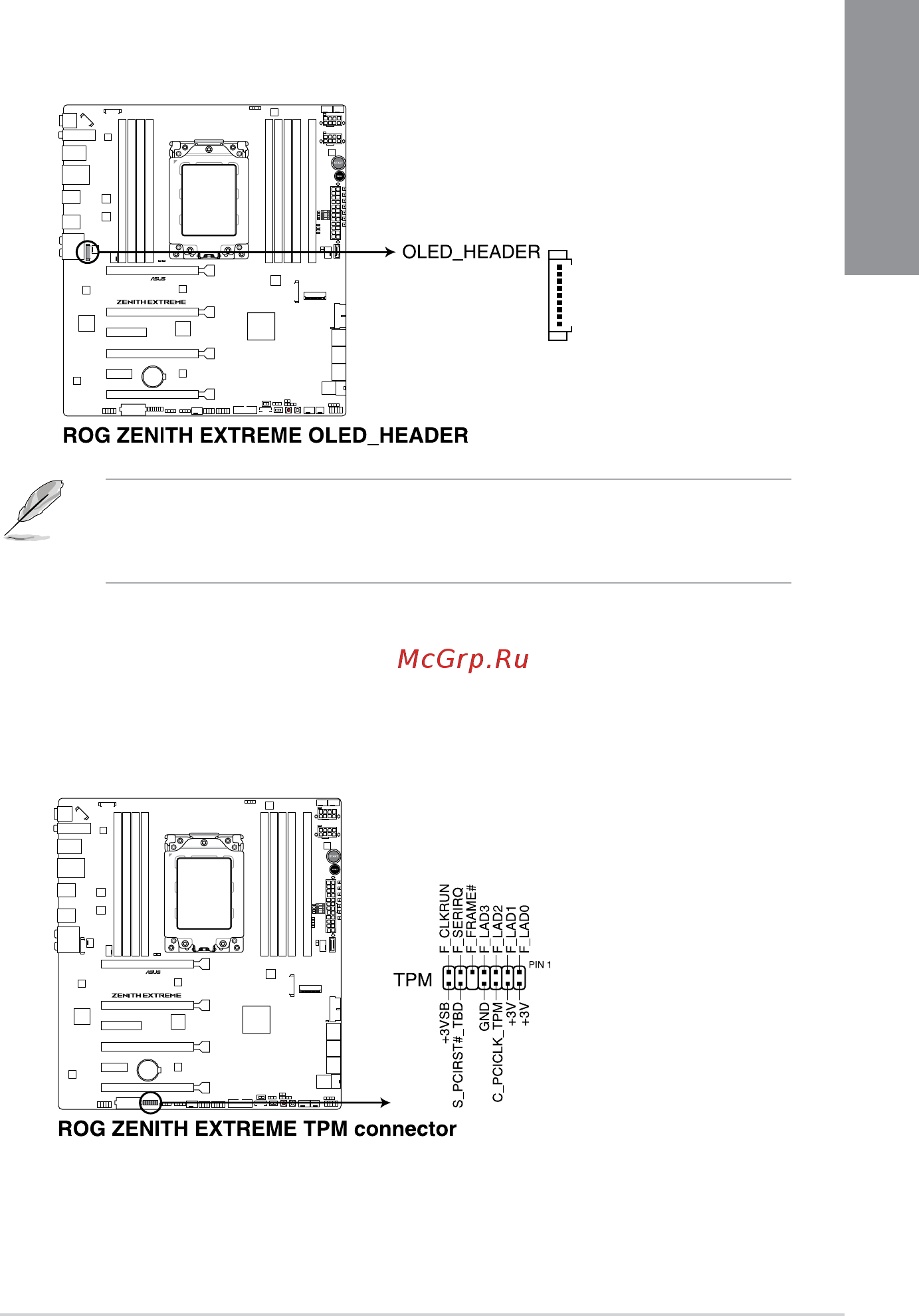

13. OLED connector (9-pin OLED_HEADER)
ThisconnectorisusedtoconnectyourLiveDashOLEDpanel.TheOLEDpanel
providesyouaquickoverviewofthesystemtemperature,powerstatus,andfan
speedswhenyoursystembootsup.Youcanalsouploada.gifleforacustomized
look.
• UsetheROG LiveDash UtilitytocongureandcustomizetheOLEDpanel.
• TheLiveDashOLEDprovidesthemostprobablecauseofanerrorcodeasastarting
pointfortroubleshooting.Theactualcausemayvaryfromcasetocase.
14. TPM connector (14-1 pin TPM)
ThisconnectorsupportsaTrustedPlatformModule(TPM)system,whichsecurely
storeskeys,digitalcerticates,passwordsanddata.ATPMsystemalsohelps
enhancenetworksecurity,protectdigitalidentities,andensuresplatformintegrity.
