Asus ROG ZENITH EXTREME [73/104] Chapter 3

ROG ZENITH EXTREME

3-9

Chapter 3

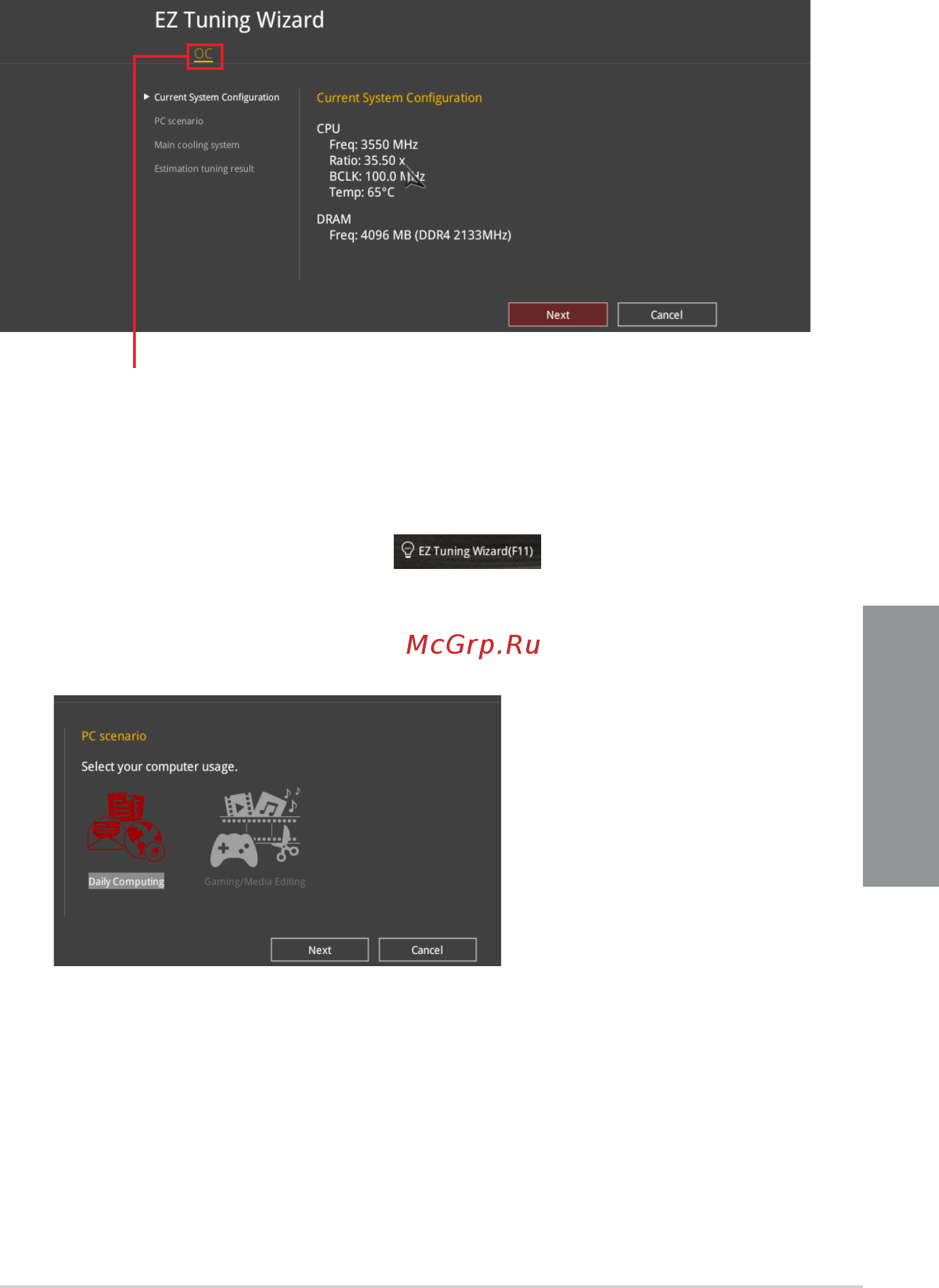

3.2.4 EZ Tuning Wizard

EZ Tuning Wizard allows you to easily overclock your CPU and DRAM, computer usage, and

CPU fan to their best settings.

OC Setup

OC Tuning

To start OC Tuning:

1. Press <F11> on your keyboard or click

from the BIOS screen to open

EZ Tuning Wizard screen.

2. Click OC

then click Next.

3. Select a PC scenario Daily Computing or Gaming/Media Editing, then click Next.
