Asus ROG ZENITH EXTREME [54/104] Expansion card installation

2-8

Chapter 2: Basic Installation

Chapter 2

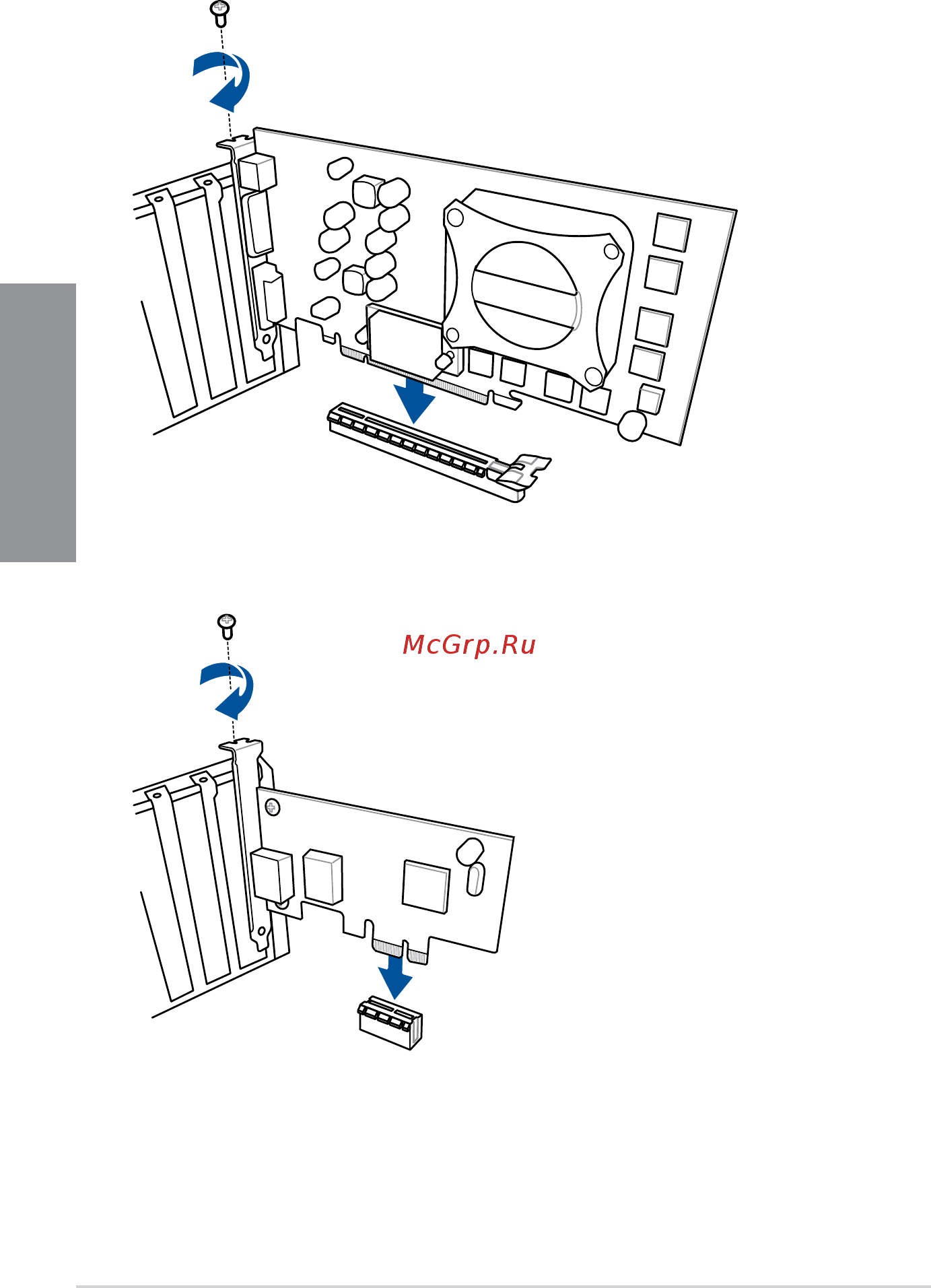

2.1.8 Expansion card installation

To install PCIe x16 cards

To install PCIe x1 cards
