Asus ROG ZENITH EXTREME [50/104] Motherboard installation

2-4

Chapter 2: Basic Installation

Chapter 2

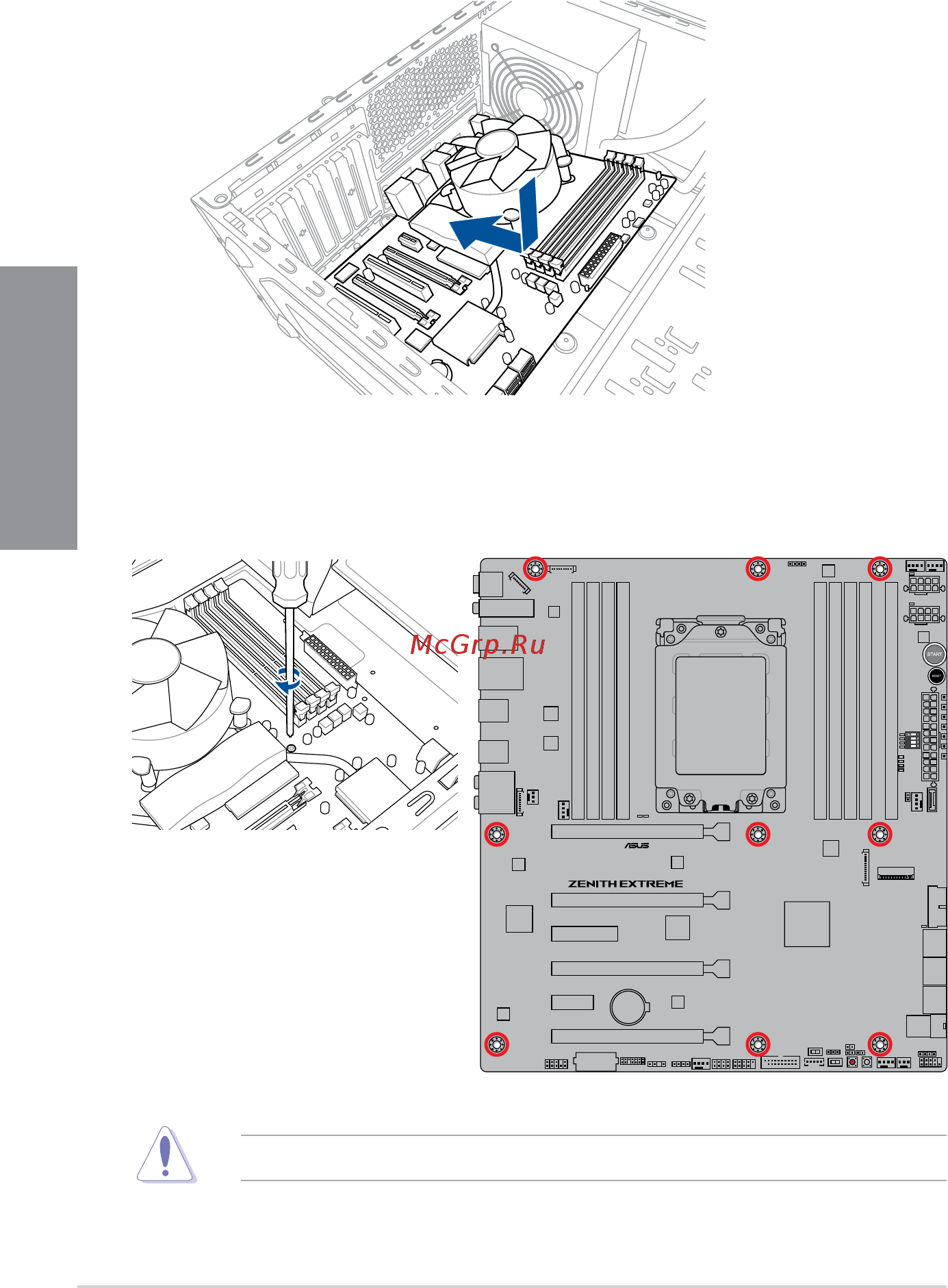

2. Place nine (9) screws into the holes indicated by circles to secure the motherboard to

the chassis.

DO NOT over tighten the screws! Doing so can damage the motherboard.

1. Place the motherboard into the chassis, ensuring that its rear I/O ports are aligned to

the chassis’ rear I/O panel.

2.1.3 Motherboard installation
