Asus ROG ZENITH EXTREME [74/104] Chapter 3

3-10

Chapter 3: BIOS Setup

Chapter 3

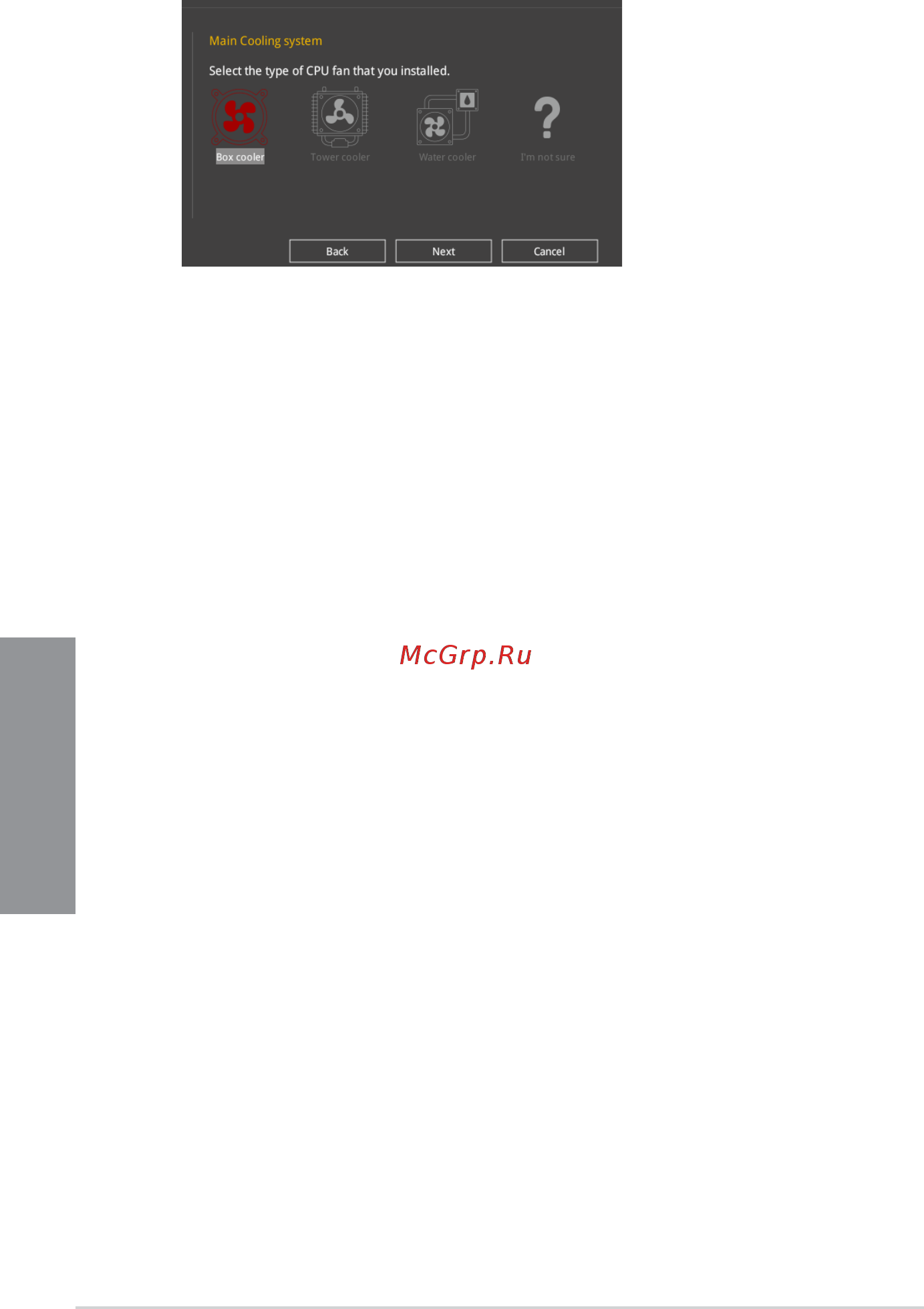

4. Select a Main Cooling System BOX cooler, Tower cooler, Water cooler, or I’m not

sure, then click Next.

5. After selecting the Main Cooling System, click Next then click Yes to start the OC

Tuning.
