Asus ROG ZENITH EXTREME [57/104] Wi fi antenna installation

ROG ZENITH EXTREME

2-11

Chapter 2

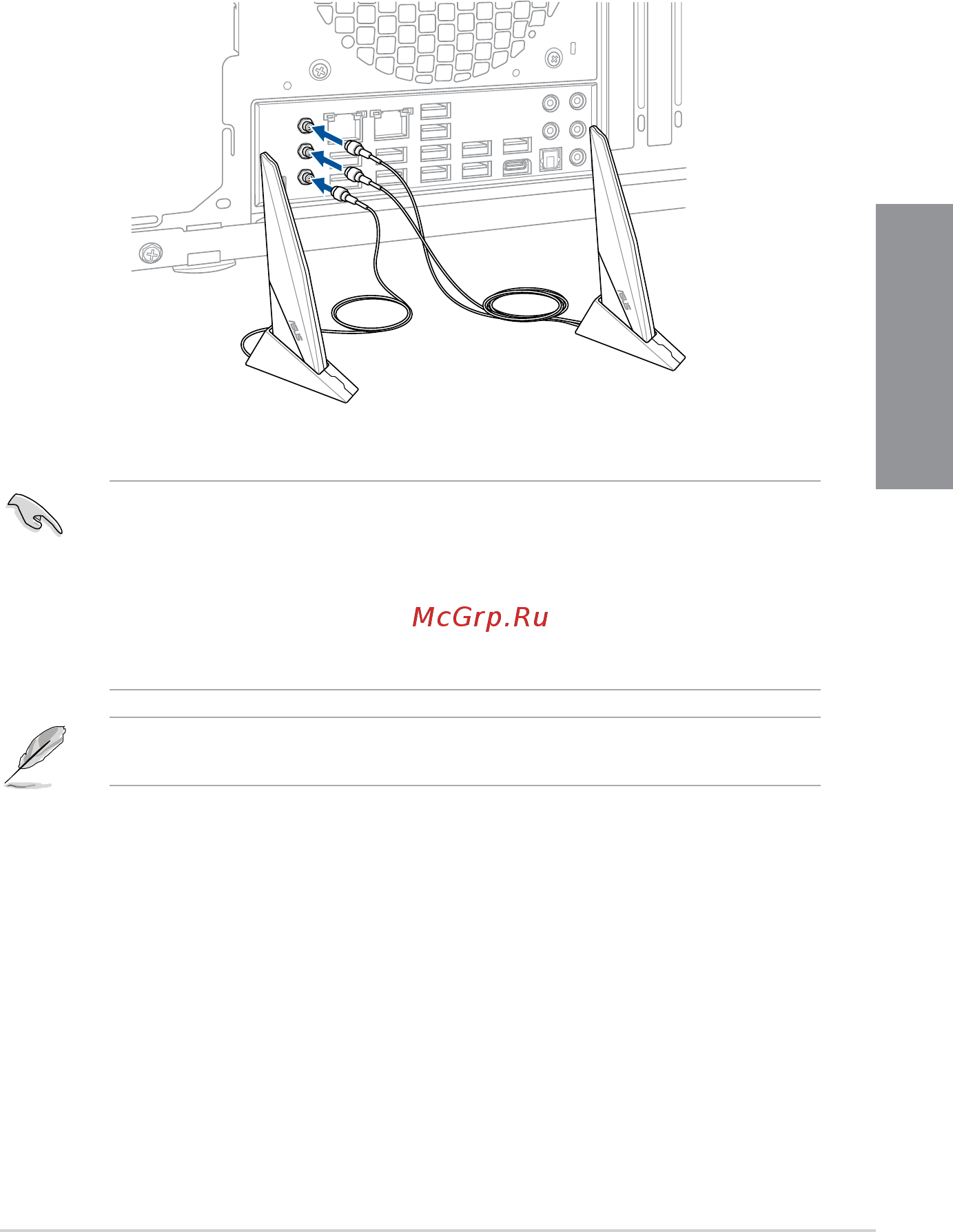

2.1.10 Wi-Fi antenna installation

Installing the ASUS 2x2 dual band W-Fi and ASUS Wi-Fi 802.11ad(WiGig) antenna

Connect the bundled ASUS 2x2 dual band Wi-Fi antenna connector to the top two Wi-Fi ports

at the back of the chassis, then connect the Wi-Fi 802.11ad(WiGig) antenna to the bottom

Wi-Fi port.

• Ensure that the ASUS 2x2 dual band W-Fi and ASUS Wi-Fi 802.11ad(WiGig) antenna

is securely installed to the Wi-Fi ports.

• Ensure that the antenna is at least 20 cm away from all persons.

• Wi-Fi 802.11ad(WiGig) is only available in certied countries.

• For optimum performance, ensure that the ASUS 2x2 dual band W-Fi antenna is at

least 10 cm away from the ASUS Wi-Fi 802.11ad(WiGig) antenna.

The illustration above is for reference only. The I/O port layout may vary with models, but

the Wi-Fi antenna installation procedure is the same for all models.

ASUS Wi-Fi 802.11ad(WiGig) antenna

ASUS 2x2 dual band W-Fi antenna
