Asus ROG ZENITH EXTREME [28/104] Chapter 1

1-12

Chapter 1: Product Introduction

Chapter 1

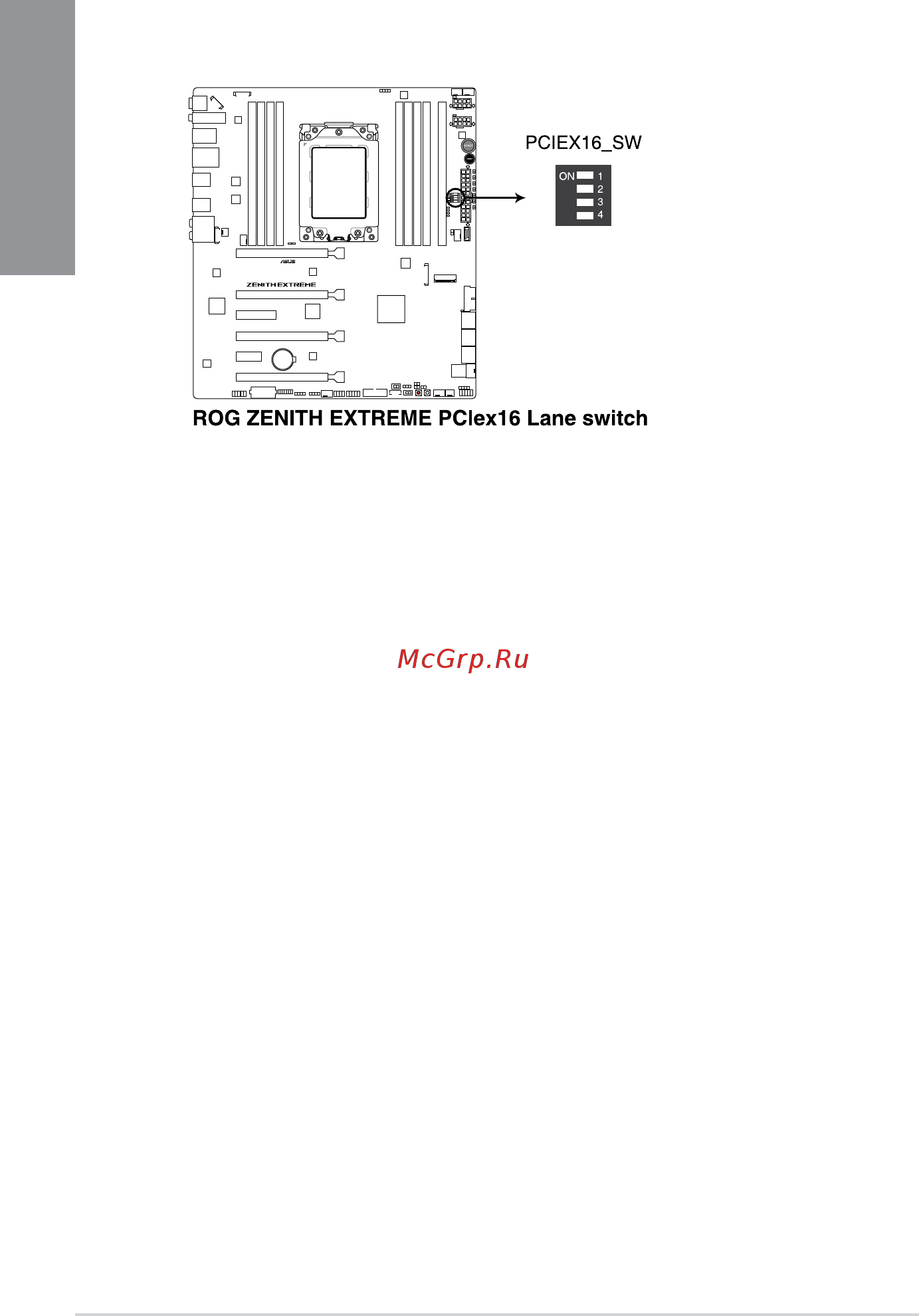

7. PCIe x16 Lane switch (PCIEX16_SW)

TheseslideswitchesallowsyoutoenableanddisablethecorrespondingPCIex16

slots.WhenoneoftheinstalledPCIex16cardsisoutoforder,youcanusetheslide

switchtondthefaultyonewithoutremovingthecards.
