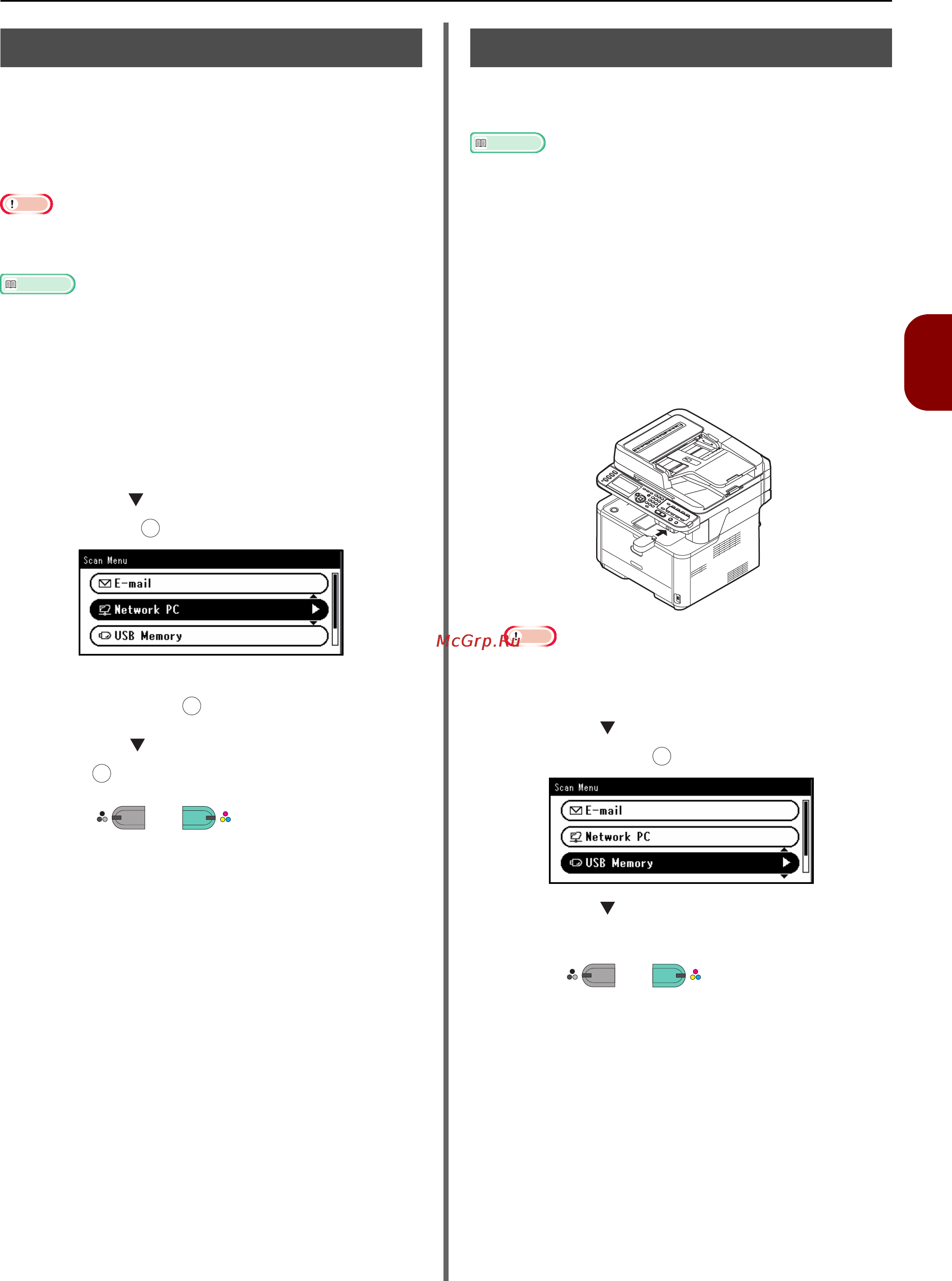

Scanning Methods
-109-
Scanning
4
Scan to Network PC
You can send a scanned document to a server on
the network.
The document is scanned and converted to a
PDF, JPEG, TIFF, or XPS file. The factory default
setting is PDF.
Note
Check that the machine is connected to the network.
It is necessary to set up Scan To Network PC in advance.
Reference
For the Scan To Network PC setup, please refer to "Setting
Up Scan To Network PC" P. 67.
1 Press the <SCAN> key on the operator
panel.
2 Place your document with text face up in
the ADF or face down on the document
glass.
3 Press the to select [Network PC] and
then press .
4 Check that [Select Profile] is selected
and then press .
5 Press the to select a profile and then
press .
6 Press or .
Scan to USB Memory
You can save the scanned document in a USB
memory.
Reference
For the specifications of USB memory that you can use, please
refer to "Print From USB Memory Specifications" P. 182.
1 Press the <SCAN> key on the operator
panel.
2 Place your document with text face up in
the ADF or face down on the document
glass.
3 Insert the USB memory into the USB
memory interface of the machine.
Note
Insert the USB memory into the USB port straight. If it
is not inserted with the correct angle, the USB port
may be damaged.
4 Press the to select [USB Memory]
and then press .
5 Press the to scanning settings if
necessary.
6 Press or .
7 Remove the USB memory from the port
after the message is displayed indicating
that it is OK to remove the USB memory.
OK
OK
OK
MONO
COLO
R
OK
MONO
COLOR
