Connecting to a Computer
-48-
Memo
Start the WPS push button for wireless AP after
clicking [Yes] in the confirmation screen.
Alternatively, if WPS push button for wireless AP is
started first, start the WPS push button on this
equipment.
If [No] is selected, the screen returns to that from
step 6.
8 If [Yes] is selected in step 7, [Running
pushbutton method...] is displayed in
the screen.
Note
Panel operations cannot be performed during WPS
execution.
When [Connection successful] is displayed, this
equipment is connected to the wireless LAN.
Memo
If [Timeout] is displayed, it is possible that the
wireless AP of the connection destination could not be
found within the time limit. Select [Yes] again in step
7 within 2 minutes of starting WPS push button for
wireless AP.
If [Overlap] is displayed, WPS-push button is being
executed on 2 or more wireless AP. Please wait for a
short time and then retry.

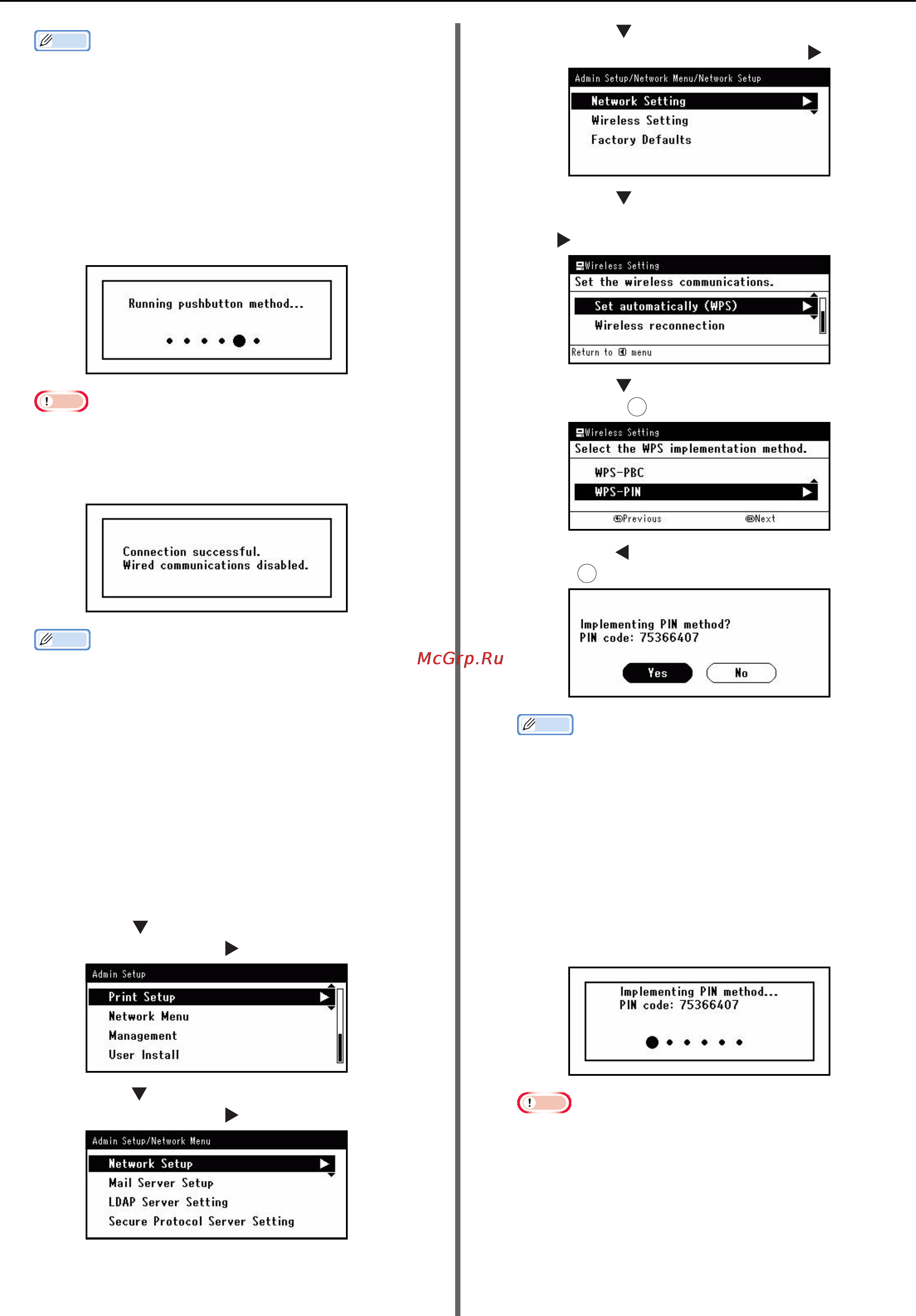

Configuring automatically using
PIN method
1 Log in as the administrator.
2 Press the to select [Network Menu],
and then press the .
3 Press the to select [Network Setup],
and then press the .
4 Press the to select [Wireless
Setting], and then press the .
5 Press the to select [Set
automatically (WPS)], and then press
the .
6 Press the to select [WPS-PIN], and
then press .
7 Press the to select [Yes], and then
press .
Memo
Enter the displayed 8 character PIN code to the
wireless AP, and start WPS-PIN for the wireless AP.
Alternatively, if WPS-PIN for wireless AP is started
first, start the WPS-PIN on this equipment.
If [Previous] is selected, the screen returns to that
from step 6. Each time the confirmation screen is
displayed, the PIN code is automatically generated
and changed.
8 If [Yes] is selected in step 7,
[Implementing PIN method...] is
displayed in the screen.
Note
Panel operations cannot be performed during WPS
execution.
When [Connection successful] is displayed, this
equipment is connected to the wireless LAN.
