Connecting to a Computer
-57-
Setup
1

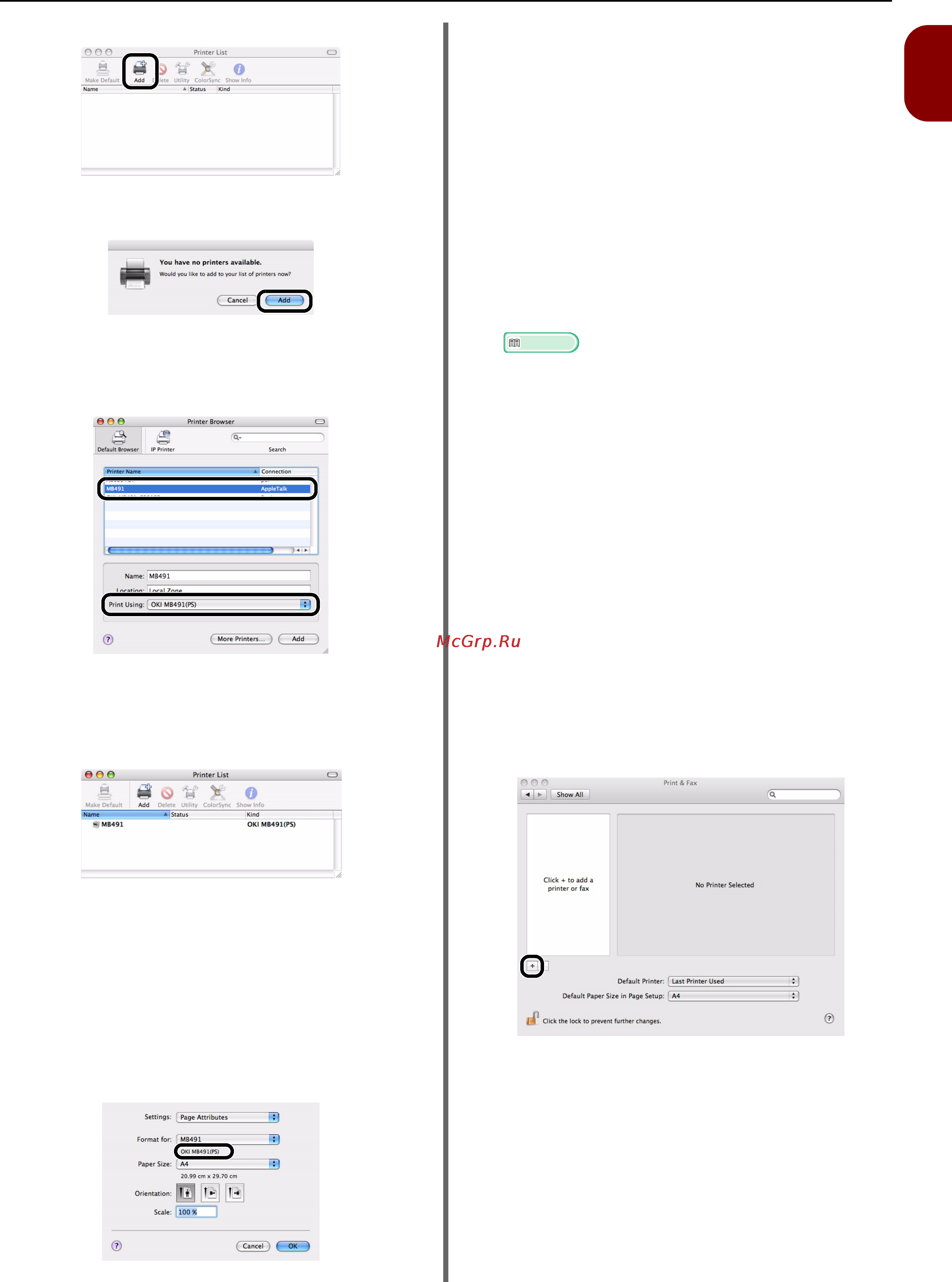

11 Click [Add].
If the [You have no printers available] dialog
box appears, click [Add].
12 Select the name of your machine whose
[Connection] is [AppleTalk], and then
check that [OKI MB491(PS)] is
displayed in [Print Using].
13 Click [Add].
14 Check that the name of your machine is
displayed in [Printer List], and then
close the window.
15 From the [Go] menu, select
[Applications] and then double-click
[TextEdit].
16 Select the [File] menu > [Page Setup].
17 Select the name of your machine from
[Format for].
18 Check that the [OKI MB491(PS)] is
displayed correctly under [Format for].
19 Click [OK].
20 Remove "Software DVD-ROM" from the
computer.
The installation is complete.
Using Bonjour
(For Mac OS X 10.5 to 10.7)
Then, install the driver in the computer and set
the machine as a network printer.
Install the driver in the computer.
1 Ensure that your machine and the
computer are turned on and connected.
Reference
"Connecting an Ethernet Cable" P. 47
2 Insert "Software DVD-ROM" into the
computer.
3 Double-click the [OKI] icon on the
desktop.
4 Double-click [Driver] folder > [PS] or
[PCL] folder > [Installer for MacOSX].
5 Enter the administrator password, and
then click [OK].
Follow the instructions displayed on the screen to
complete the installation.
6 From the Apple menu, select [System
Preferences].
7 Click [Print & Scan] (For Mac OS X 10.5
and 10.6:[Print & Fax]).
8 Click [+].
