Basic Settings for Faxing (for MB451, MB451w, MB471, MB471w, MB491, ES4191 MFP only)
-42-
- Picking up the telephone receiver when sending or
receiving a fax may interrupt pictures or cause
communication error to occur.
- The fax transfer function is not able to work from the
external telephone.
Memo
In the case of direct interconnection, separate construction is
needed. Please contact the telephone company that you use.
Other cases
Note
Turn off the machine when you connect the telephone line
with the machine.
Connecting to the ADSL Environment
Plug the [Telephone cable] connected to the
ADSL modem into the [LINE connection] of
your machine.
Remove the telephone connector cover.
Plug the external telephone's cable into the [TEL
connection] of your machine.
Memo
Check the dial tone detection if it is unable to dial and refer
to "Admin Setup - User install" P.103 Advanced.
If you cannot send or receive faxes well, set [
Super G3
] to
off. Refer to "Setting for Super G3" P. 45.
Connecting to IP Telephone
Plug the [Telephone cable] connected to the IP
telephone into the [LINE connection] of your
machine.
Remove the telephone connector cover.
Plug the external telephone's cable into the [TEL
connection] of your machine.
Memo
Check the dial tone detection if it is unable to dial and refer
to "Admin Setup - User install" P.103 Advanced.
If you cannot send or receive faxes well, set [
Super G3
] to
off. Refer to "Setting for Super G3" P. 45.
Connecting CS Tuner or Digital
Television
Plug the [Telephone cable] connected to the
[Public Line (Analog)] into the [LINE
connection] of your machine.
Remove the telephone connector cover.
Plug the telephone cable connected to the CS tuner
or digital television into the [TEL connection] of
your machine.

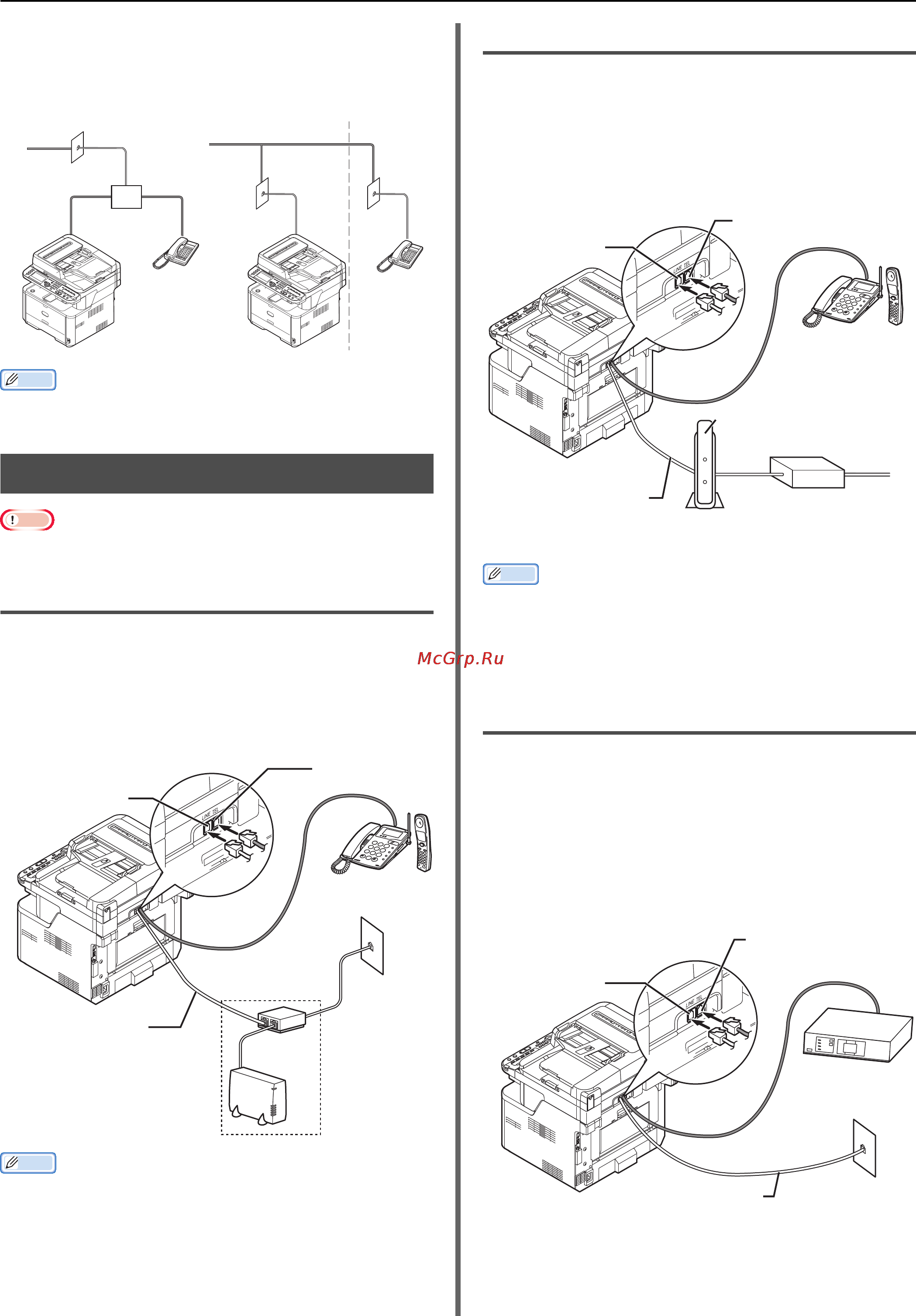

Public Line (Analog) Public Line (Analog) first floor second floor
TEL connection
LINE connection
Telephone cable
Splitter
ADSL modem
Public Line
(Analog)
LINE connection
TEL connection
Telephone cable
Optical IP telephone
Corresponding telephone
*Insert into the
telephone cable jack.
Optical Network Unit (ONU)
Optical cable
LAN
cable
LINE connection
TEL connection
CS tuner or digital
television
Telephone cable
Public Line
(Analog)
