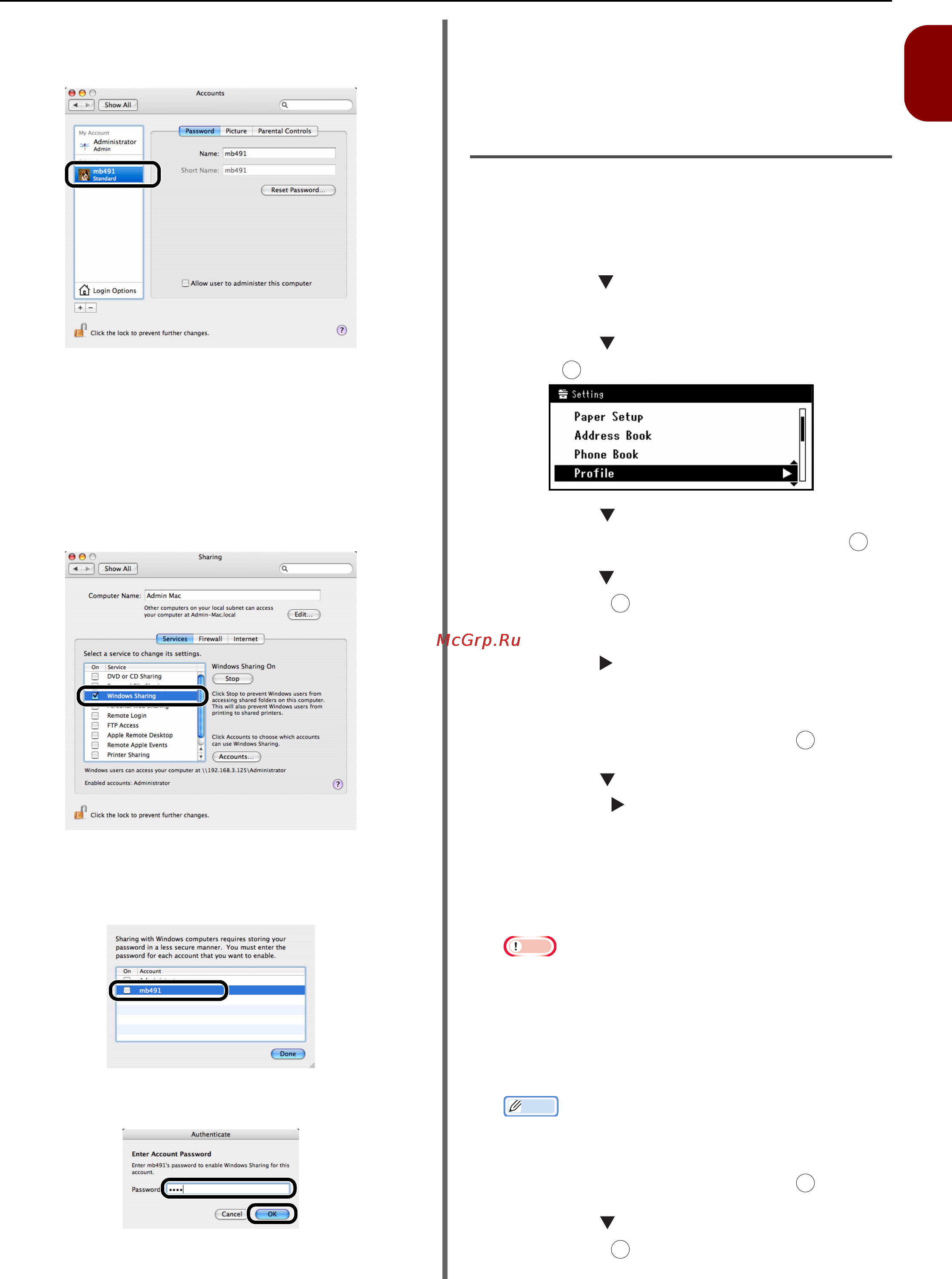

Configuring the Network Settings
-75-
Setup
1
8 Check that an account is added to
[Other Accounts] with the name of C-2,
and close [Accounts].
9 Create a new folder on the computer
with the name entered in C-5.
10 From the Apple menu, select [System
Preferences].
11 Click [Sharing].
12 Check the checkbox of [Windows
Sharing].
13 Click [Enable Accounts...].
14 Check the checkbox of the account
created in step 7.
15 Enter the value in C-3 in [Password]
and click [OK].
16 Click [Done].
17 Close [Sharing].
Proceed to "Creating a Profile for Scan To Network
PC".
Creating a Profile for Scan To
Network PC
Register the information on the Information form
on the computer as a profile. It is necessary to
specify the profile to send data when you
perform Scan To Network PC with the computer.
1 Press the the <SETTING> key on the
operator panel.
2 Press the to select [Profile] and then
press .
3 Press the to select the profile number
you want to register and then press .
4 Press the to select [Register] and
then press .
5 Press to select [Profile Name] and then
press the .
6 Enter the information in C-4.
7 Select [Enter] and then press .
8 Press the to select [Target URL] and
then press .
9 Enter the value of C-1 and C-5 as "\\C-
1\C-5".
Note
If there is no DNS server on the network, you cannot
specify the computer by using the computer name
(C-1). In such a case, you can configure the settings
by using the computer's IP address.
Memo
In order to enter the "\" sign while using a QWERTY
keyboard, press <CTRL> and then press <\>.
10 Select [Enter] and then press .
11 Press the to select [User Name] and
then press .
Example: \\PC1\SalesDev
Example: \\192.168.0.3\SalesDev
OK
OK
OK
OK
OK
OK
