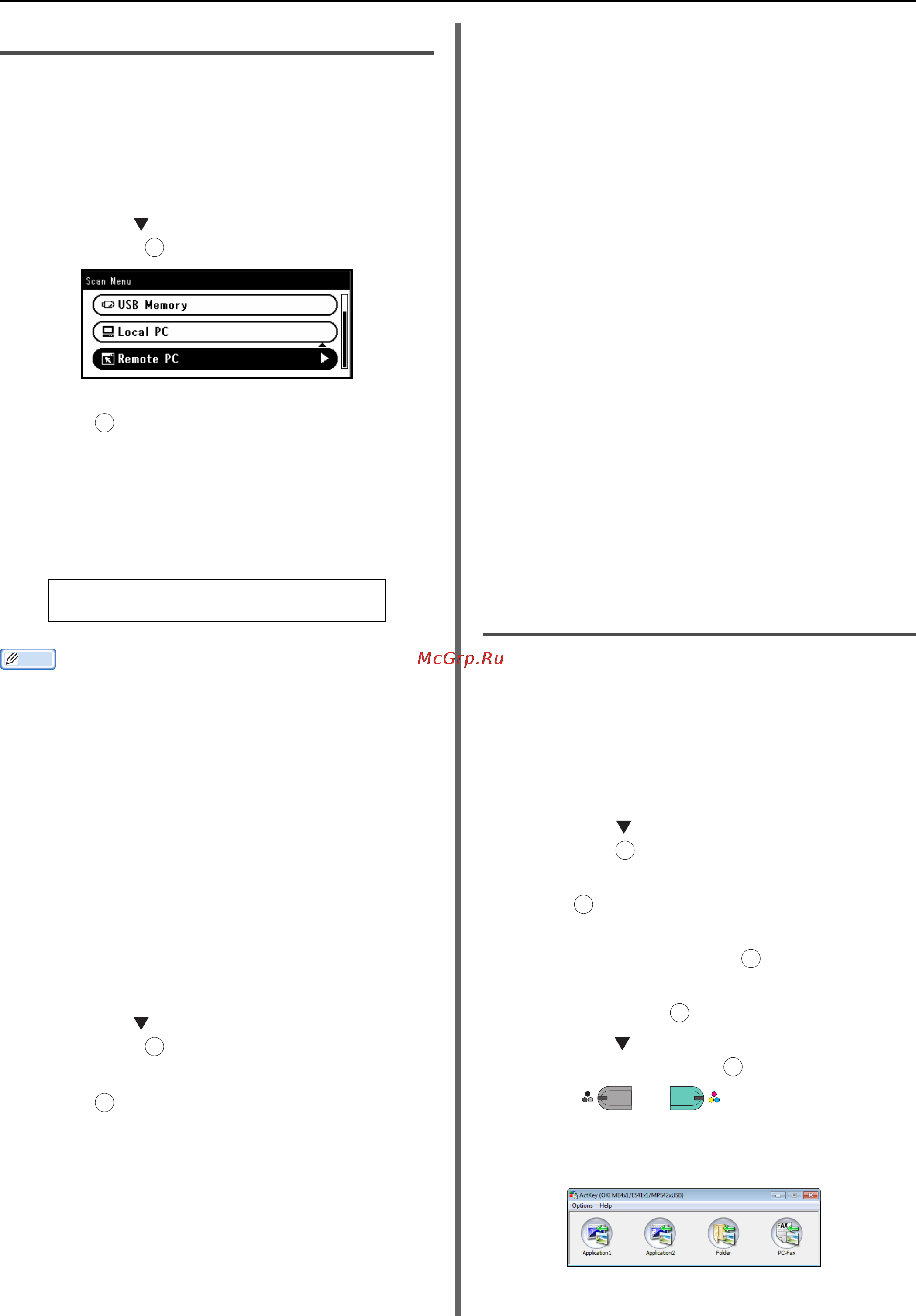

Scanning Methods
-112-
Simple Scan Mode
For Windows
1 Press the <SCAN> key on the operator panel.
2 Place your document with text face up in the
ADF or face down on the document glass.
3 Press the to select [Remote PC] and
then press .
4 Check that the [TWAIN] is selected, and
press .
5 Start ActKey on your computer.
6 Click the scan button you want.
The scan job starts.
Memo
If you select [Application1] or [Application2], the
specified application starts and the scanned document is
displayed on the application.
If you select [Folder], the scanned document is saved in
the specified folder.
If you select [PC-FAX], the application for fax
transmission starts and the scanned document is sent to
the application. Send your fax with the fax transmission
software on your computer.
For Mac OS X
1
Press the <SCAN> key on the operator
panel.
2 Place your document with text face up in
the ADF or face down on the document
glass.
3 Press the to select [Remote PC] and
then press .
4 Check that the [TWAIN] is selected, and
press .
5 Start Adobe Photoshop CS3 on your
computer.
6 Select [Import] from [File] to select
[OKI MB4x1_ES41x1_MPS42x USB]
or [OKI MB4x1_ES41x1_MPS42x
Network].
- If you select [OKI MB4x1_ES41x1_MPS42x
USB], proceed to step 10.
- If you select [OKI MB4x1_ES41x1_MPS42x
Network] and the network scan is the second or
more scanning, proceed to step 10.
7 For the first network scan, the dialog box
indicating that the tool of connection
destination selection is started is
displayed, and then click [OK].
8 Select a connection destination in the
[Scan Settings] dialog box, and register
the host information if necessary. Then,
click [OK].
9 Select [Import] from [File] of Adobe
Photoshop CS3 to select [OKI
MB4x1_ES41x1_MPS42x Network].
The window appears.
10 Click a scan button.
Scanning starts.
11 Select [Quit Photoshop] from
[Photoshop].
Secure Scan Mode (For Network
Connection)
For Windows
1 Press the <SCAN> key on the operator
panel.
2 Place your document with text face up in
the ADF or face down on the document
glass.
3 Press the to select [Remote PC] and
the press .
4
Check that the [
TWAIN
] is selected, and
press .
5
Check that [
Select a connecting PC
] is
selected and then press
.
6 Check that [From Network] is selected
and then press .
7 Press the to select the destination you
want and then press .
8 Press or .
9 Start the ActKey on your computer.
10 Click a scan button.
Scan Button Name:
Application1, Application2, Folder, PC-
Fax
OK
OK
OK
OK
OK
OK
OK
OK
OK
MONO
COLOR
