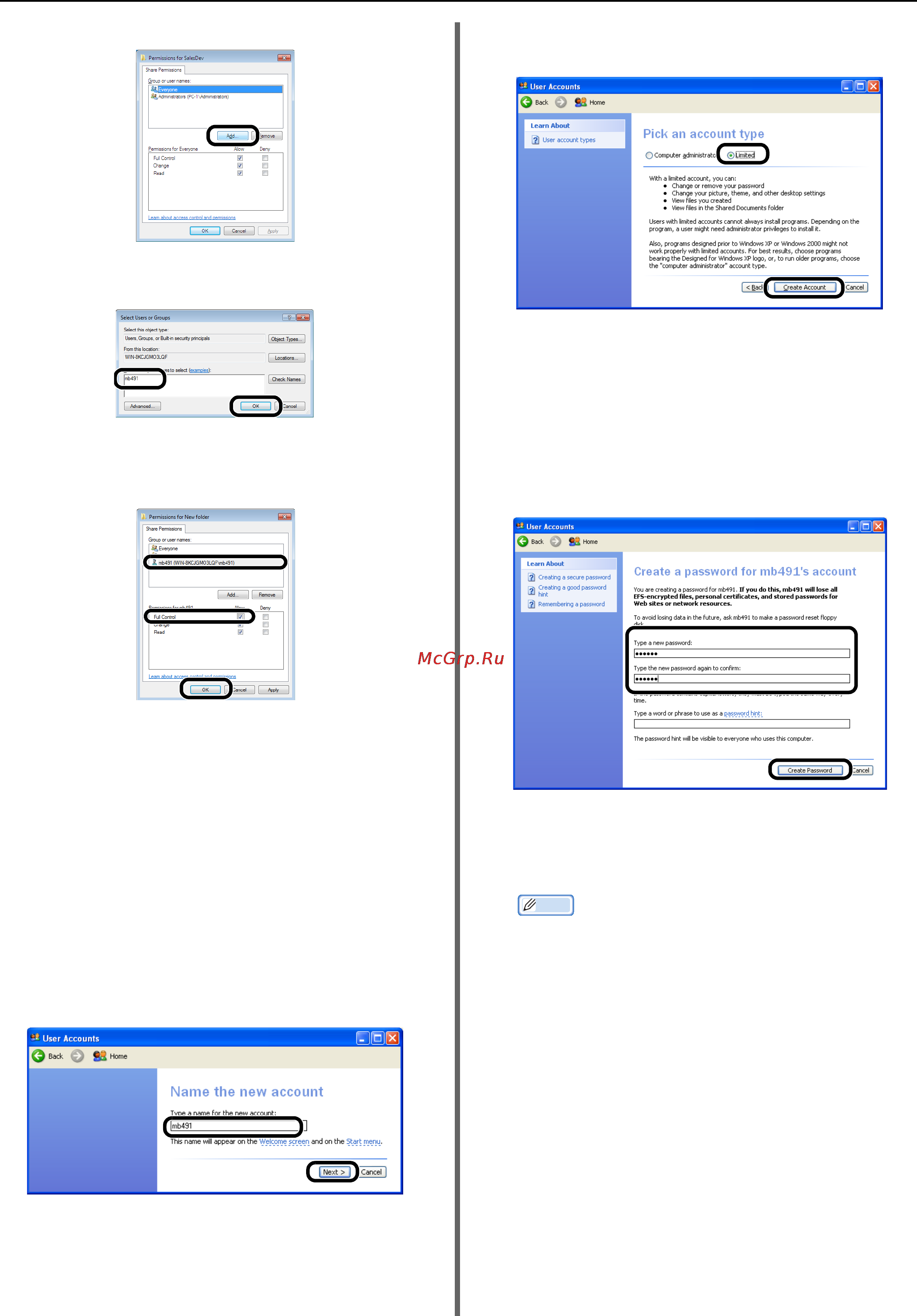

Configuring the Network Settings
-70-
18 Click [Add].
19 Enter the value in C-2 in the entry field
and then click [OK].
20 Select the user added in step 13 and
select the [Allow] check box for [Full
Control], and then click [OK].
21 click [OK].
22 Click [Close].
Proceed to "Creating a Profile for Scan To Network
PC" P. 75.
For Windows XP
1
Click [start] > [Control Panel].
2 Double-click [User Accounts].
3 Select [Create a new account].
4 Enter the value of C-2 in the text box and
click [Next].
5 Select [Limited] and click [Create
Account].
6 Click the icon of the user account created
in step 5.
7 Select [Create a password].
8 Enter the value of C-3 in [Type a new
password] and [Type the new
password again to confirm], and then
click [Create Password].
9 Close the operator panel.
10 Create a new folder on the computer
with the name entered in C-5.
Memo
It is recommended to create a folder in the local drive
(C drive or D drive), not on the desktop, [My
Documents], or network drive.
11 Right-click the folder created in step 10,
and then select [Sharing and
Security].
