Cleaning Your Machine
-173-
Maintenance
8

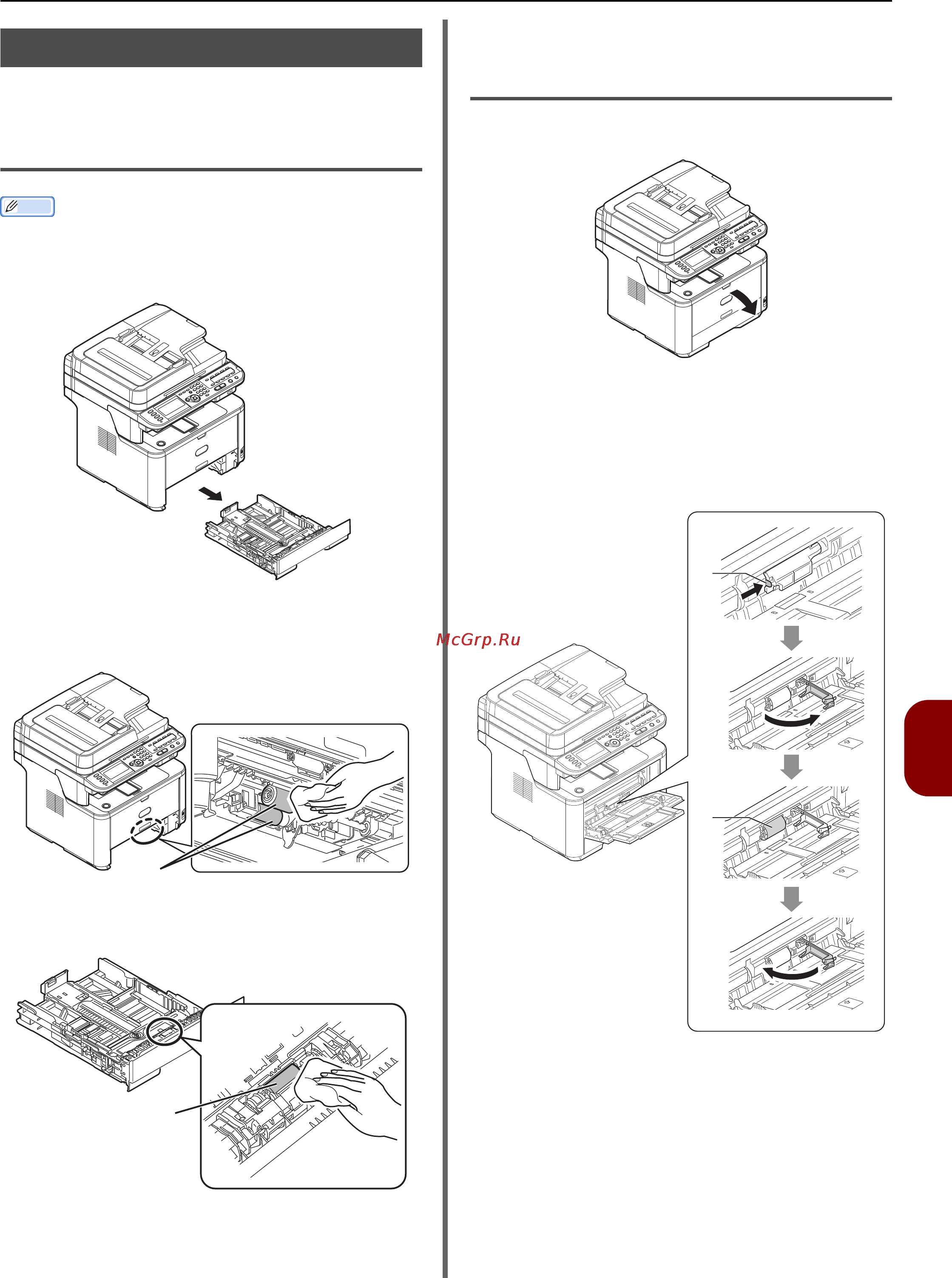

Cleaning Paper Feed Rollers
Clean the paper feed rollers if paper jams occur
frequently.
For Tray 1 and Tray 2
Memo
The following images use tray 1 as an example, but the
same procedure applies to tray 2.
1 Pull out the Tray.
2 Wipe the paper feed rollers (1) inside the
machine with a soft cloth lightly
moistened with water.
3 Wipe the paper feed roller (2) on the
Tray.
4 Push the Tray back into the machine.
For MP Tray (MB451, MB451w,
MB471, MB471w, MB491, ES4191
MFP only)
1 Open the MP tray.
2
While pressing the tab (1) of the paper feed
roller cover to the right, open the cover.
3 Wipe the paper feed roller (2) with a soft
cloth lightly moistened with water.
4 Close the cover of the paper feed roller.
5 Close the MP tray.
1
2
2
3
4
1
2
