1
Mount carrier bar to seat
Montage Haltebügel am Sitz
DE Ziehen Sie den Haltebügel
(8) aus dem hinteren Teil des
Sitzes. Drehen Sie den Längen-
versteller (10) in die senkrechte
Position und entfernen Sie diesen.
Setzen Sie den Haltebügel mit den
Spitzen nach unten und anschlie-
ßend den Längenversteller voll-
ständig ein. Drehen Sie den
Längenversteller zurück in die hori-
zontale Position, um den
Haltebügel zu sichern.
FR Retirez la barre de support
(8) de l’arrière du siège. Réglez
l’ajusteur de longueur (10) sur une
position verticale et retirez-le.
Insérez entièrement la barre de
support avec les extrémités vers le
bas. Insérez entièrement l’ajusteur
de longueur et réglez-le sur une
position horizontale pour verrouil-
ler la barre de support (10).
ES Quite la barra portaequi-
pajes (8) de la parte posterior
del asiento. Gire el regulador de
longitud (10) hasta colocarlo en
posición vertical y retírelo. Inserte
totalmente la barra, con las puntas
hacia abajo. Inserte hasta el
fondo el ajustador de longitud y
gírelo hasta una posición horizon-
tal para bloquear la barra portaeq-
uipajes (10).
AR
BG Отстранете носещата
рамка (8) от задната част на
седалката. Завъртете механизма
за регулиране на дължината (10)
до вертикално положение и го
махнете. Пъхнете докрай носещата
рамка, като краищата й трябва
да са насочени надолу. Пъхнете
докрай механизма за регулиране
на дължината и го завъртете до
хоризонтално положение, за да
заключите носещата рамка (10).
CS Oddělte nosnou tyč (8) ze
zadní strany sedačky. Odklopte
pojistku pro nastavení délky (10)
do vertikální polohy a vyjměte
ji. Poté nosnou tyč zasuňte na

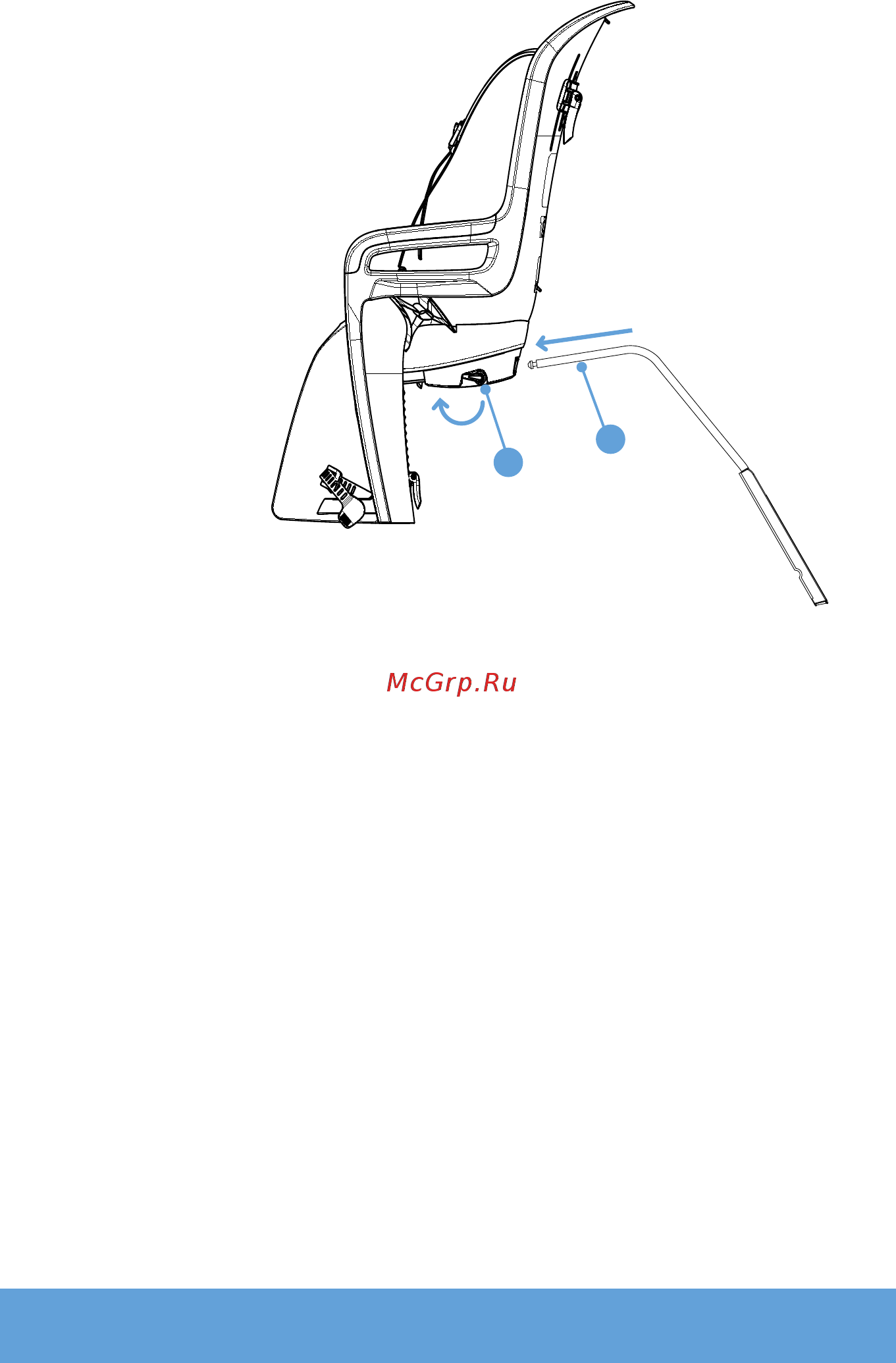

EN Remove the carrier bar 8 from the back of
the seat. Turn the length adjuster 10 to a
vertical position and remove it. Insert the
carrier bar fully, with the tips pointing
down. Insert the length adjuster
fully, and turn it to a
horizontal position to
lock the carrier bar 10.
8
10
8
10
10
Thule RideAlong – Installation – Montage
