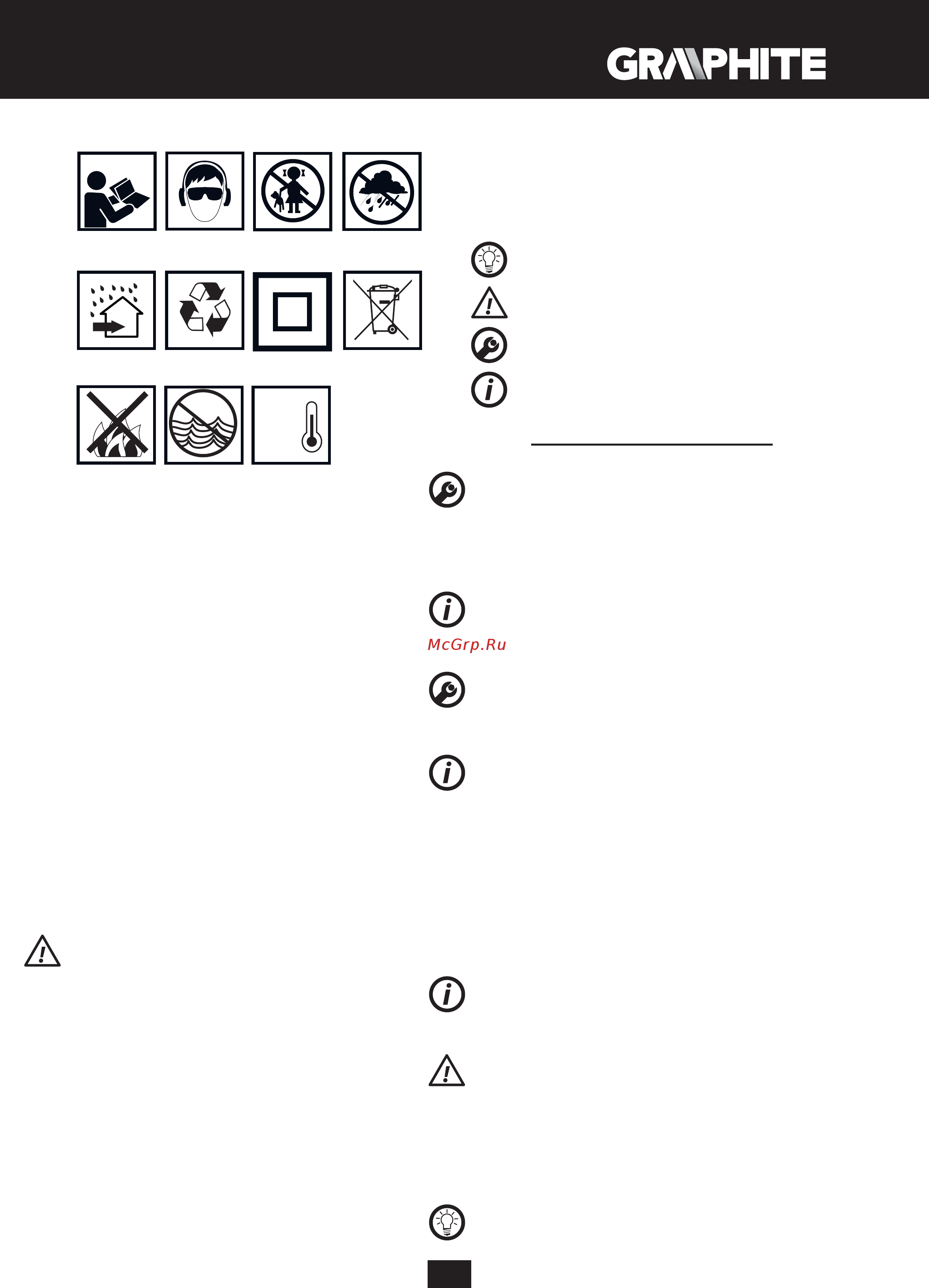

Explanation of used symbols
1234
75
Max.
50°C
6 8
91011
1. Read instruction manual, observe warnings and safety
conditions therein.
2. Use protective goggles and hearing protectors.
3. Keep the tool away from children.
4. Protect against rain.
5. Use indoors, protect from water and moisture.
6. Recycling.
7. Protection class 2.
8. Segregated waste collection.
9. Do not throw cells into fire.
10. Hazardous to water environment.
11. Do not allow to heat above 50°C.
CONSTRUCTION AND USE
Drill is a battery powered tool. Drive consists of a DC commutator
motor with permanent magnets and planetary gear. The drill can
operate with impact action switched on or off. It is designed for
screwing in and out screws and bolts in wood, metal, plastics and
ceramics, and for non-impact drilling holes in these materials.
Impact action mode is used for drilling in concrete, stone, brick
etc.
Cordless, battery-powered power tools are especially useful
for works in construction and renovation tasks, woodworking,
interior furnishing, adaptation of premises and all tasks of
individual, amateur activities (tinkering).
Use the power tool in accordance with the manufacturer’s
instructions only.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on
the drawing pages of this manual.
1. Quick-release chuck
2. Ring of the quick release chuck
3. Torque adjustment ring
4. Gear switch
5. Direction selector switch
6. Holder
7. Battery
8. Battery lock button
9. Switch
10. Lighting
11. LED diodes
12. Charger
13. Button for battery level indication
14. Battery level indicator (LED)
15. Operation mode switch
* Differences may appear between the product and drawing.
MEANING OF SYMBOLS
CAUTION
WARNING
ASSEMBLY / SETTINGS
INFORMATION
PREPARATION FOR OPERATION
REMOVING AND INSERTING THE BATTERY
• Set the direction selector switch (5) in middle position.
• Push the battery lock button (8) and slide out the battery (7)
(fig. A).
• Insert charged battery (7) into the handle holder, you should
hear when the battery lock button (8) snaps.
BATTERY CHARGING
The device is supplied with partially charged battery. The battery
should be charged in ambient temperature between 4°C and
40°C. New battery, or one that has not been used for a long
time, will reach full efficiency after approximately 3 to 5 charge/
discharge cycles.
• Remove the battery (7) from the device (fig. A).
• Connect the charger to mains socket (230 V AC).
• Slide the battery (7) into the charger (12) (fig. B). Ensure the
battery is properly fitted (pushed to the end).
When the charger is connected to a mains socket (230 V AC), the
green diode (11) on the charger turns on to indicate connected
supply.
When the battery (7) is placed in the charger (12), the red diode
(11) on the charger turns on to indicate that the charging is in
progress.
Simultaneously, green diodes (14) of the battery level indication
are flashing in different configurations, see description below.
• All diodes are flashing - battery is empty and requires
charging.
• 2 diodes are flashing - the battery is partially discharged.
• 1 diode is flashing - the battery level is high.
Once the battery is charged, the diode (11) on the charger lights
green, and all battery level diodes (14) light continuously. After
some time (approx. 15 s) battery level indication diodes (14) turn
off.
Do not charge the battery for more than 8 hours. Exceeding
this time limit may cause damage to battery cells. The charger
will not turn off automatically when the battery is full. Green
diode on the charger will remain on. Battery level indication
diodes turn off after some time. Disconnect power supply
before removing the battery from the charger socket. Avoid
consecutive short chargings. Do not charge the battery after
short use of the tool. Significant decrease of the period
between chargings indicates the battery is used up and should
be replaced.
Batteries heat up when charging. Do not operate just
after charging – wait for the battery to cool down to room
temperature. It will prevent battery damage.
