19D-Link DIR-815 User Manual
Section 3 - Conguration

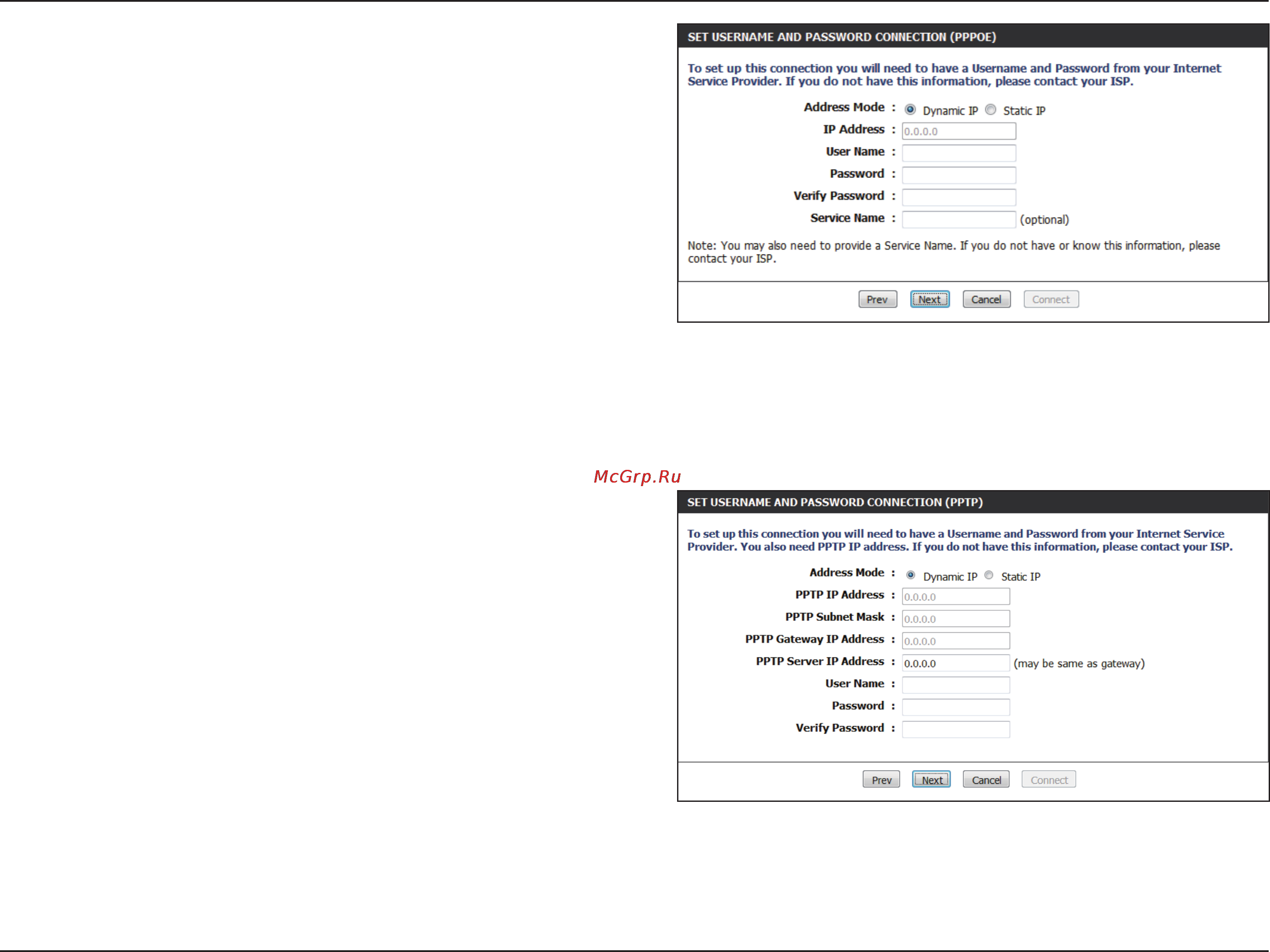

If you selected PPPoE, enter your PPPoE username and password.
If your ISP requires you to enter a PPPoE service name, enter the
service name in the Service Name eld.
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses.
Click Next to continue.
Note: Make sure to remove your PPPoE software from your
computer. The software is no longer needed and will not work
through a router.
If you selected PPTP, enter your PPTP username and password.
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and PPTP server addresses.
Click Next to continue.
