20D-Link DIR-815 User Manual
Section 3 - Conguration

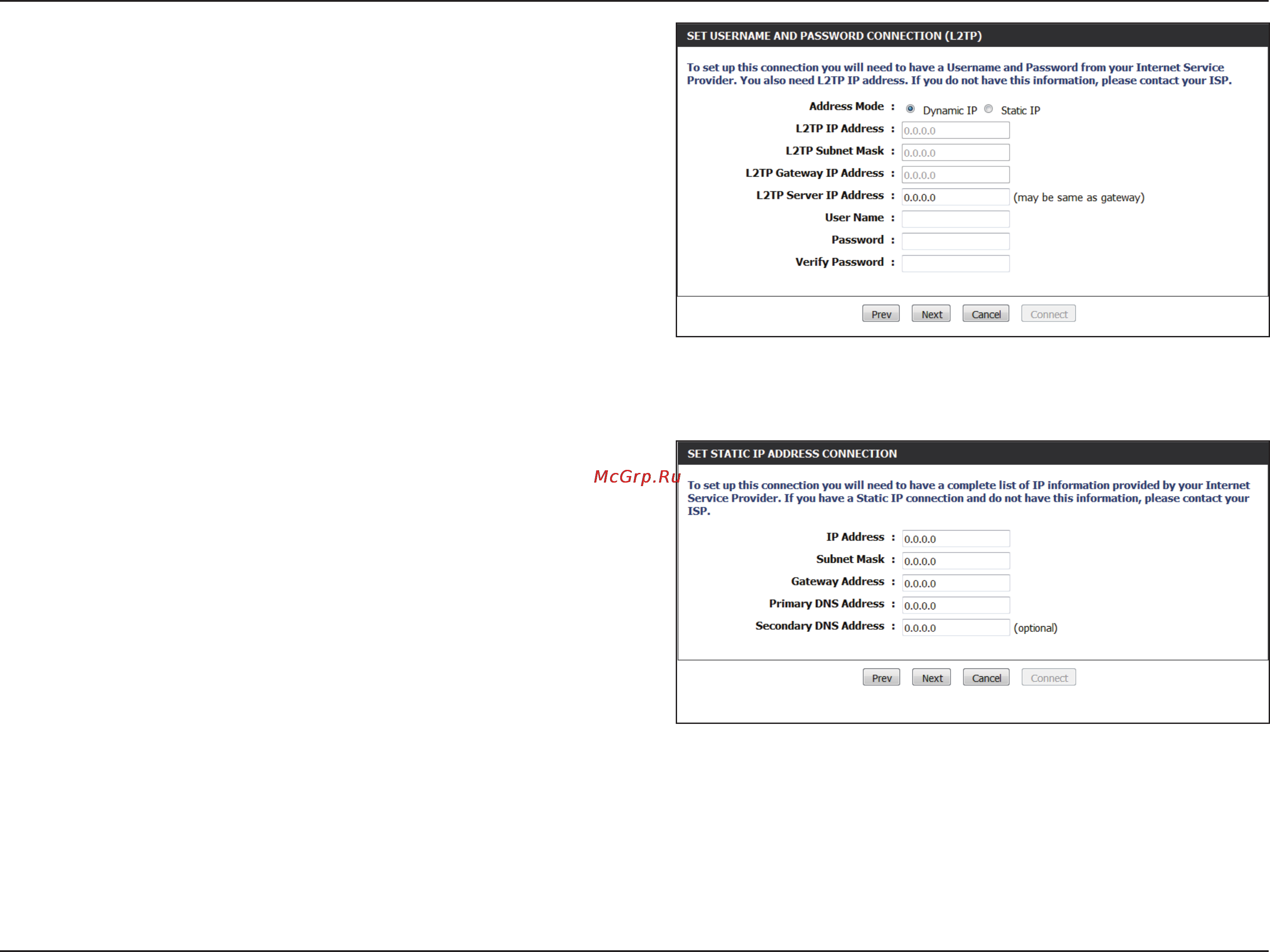

If you selected L2TP, enter your L2TP username and password.
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and L2TP server addresses.
Click Next to continue.
If you selected Static, enter your network settings supplied by
your Internet provider.
Click Next to continue.
