21D-Link DIR-815 User Manual
Section 3 - Conguration

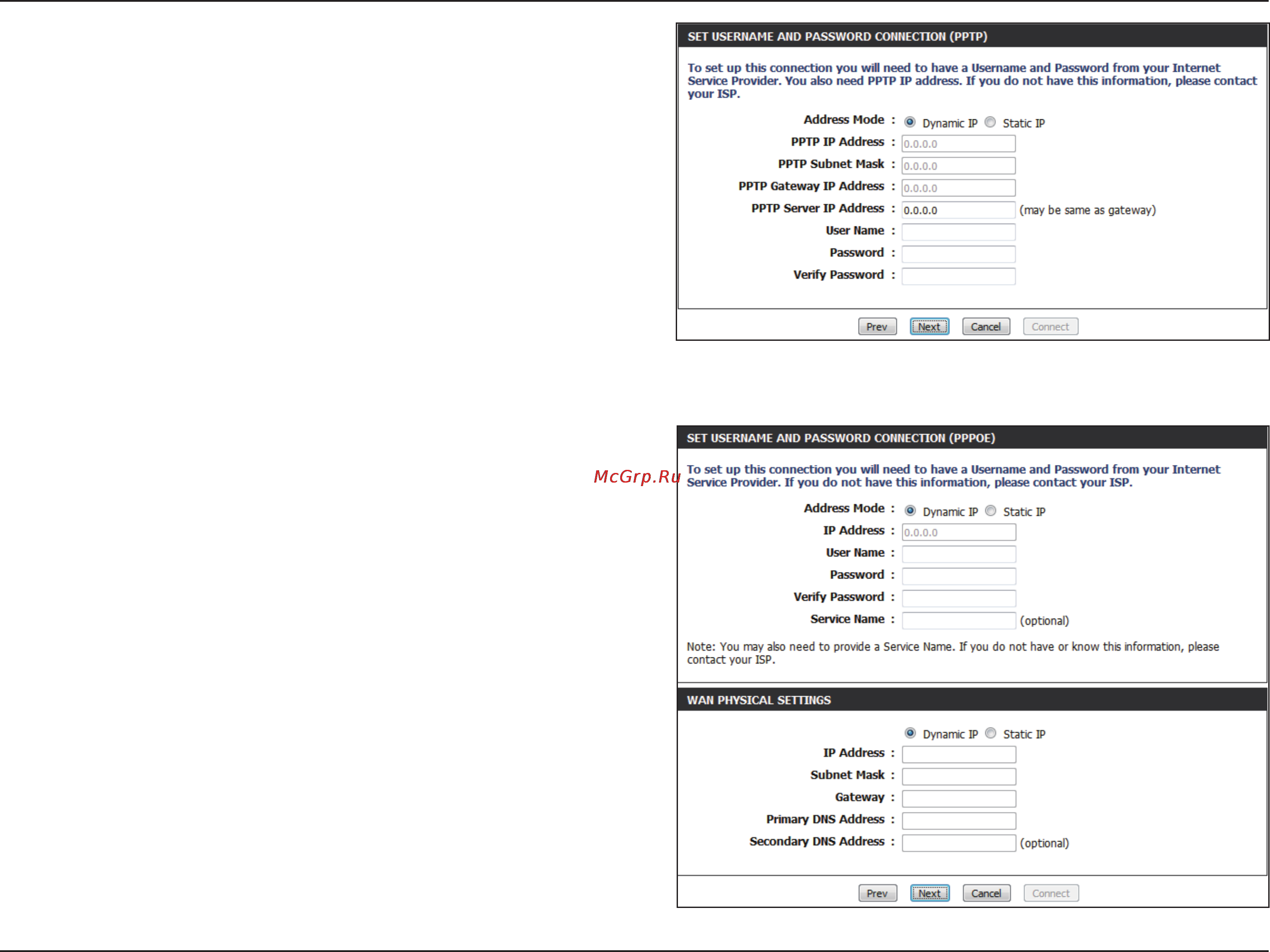

If you selected Russia PPTP (Dual Access), enter your PPTP
username and password.
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses.
Click Next to continue.
If you selected Russia PPPoE (Dual Access), enter your PPPoE
username and password.
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses.
If your ISP requires you to manually specify the WAN Physical IP
settings, click the Static IP radio button and enter the required
IP Address, Subnet Mask, Gateway, and DNS Server Addresses in
their respective elds.
Click Next to continue.
Note: Make sure to remove your PPPoE software from your
computer. The software is no longer needed and will not work
through a router.
