DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

122

The following options may appear for the user to configure:

• Collapse - To collapse the group that will be represented by a single icon.

• Expand - To expand the SIM group, in detail.

• Add to group - Add a candidate to a group. Clicking this option will reveal the following dialog box for the user

to enter a password for authentication from the Candidate Switch before being added to the SIM group. Click

OK to enter the password or Cancel to exit the dialog box.

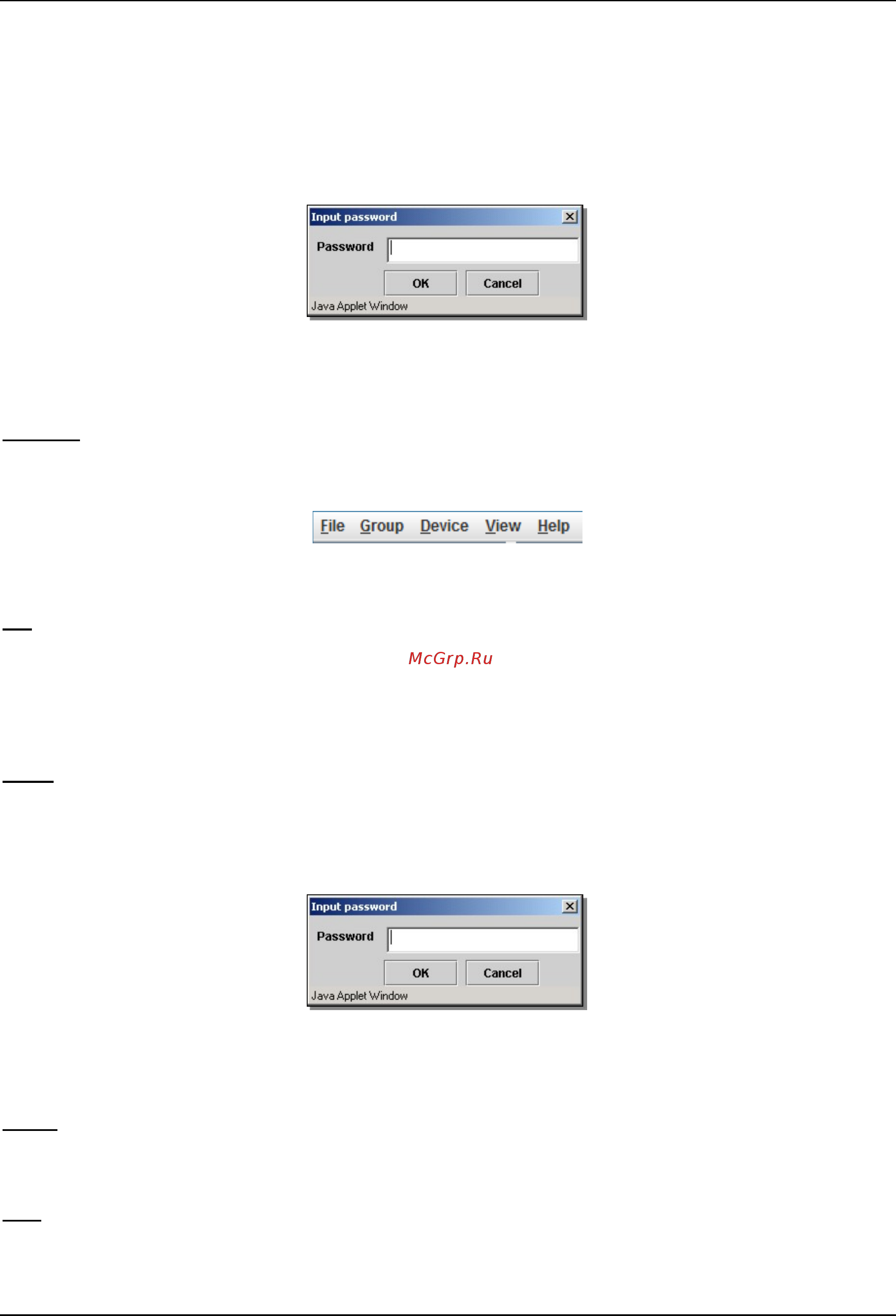

Figure 4-98 Input password Window

• Property - To pop up a window to display the device information.

Menu Bar

The Single IP Management window contains a menu bar for device configurations, as seen below.

Figure 4-99 Menu Bar of the Topology View

File

• Print Setup - This will view the image to be printed.

• Print Topology - This will print the topology map.

• Preference - This will set display properties, such as polling interval, and the views to open at SIM startup.

Group

• Add to group - Add a candidate to a group. Clicking this option will reveal the following dialog box for the user

to enter a password for authentication from the Candidate Switch before being added to the SIM group. Click

OK to enter the password or Cancel to exit the dialog box.

Figure 4-100 Input password Window

• Remove from group - Remove an MS from the group.

Device

• Configure - This will open the Web manager for the specific device.

View

• Refresh - Update the views with the latest status.

• Topology - Display the Topology view.
