DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

164

VLAN Mapping

This window is used to display and configure the VLAN mapping settings. If a profile is applied on an interface, the

Switch matches the incoming packets according to the rules of the profile. If the packet matches a rule, the action of

the rule will be taken. This action may be adding or replacing the outer-VID, specifying the priority of the new outer-

TAG or specifying the packet’s new inner-VID.

The match order depends on the rule’s sequence number in the profile and stopped when first matched. If the

sequence number is not specified, it will be allocated automatically. The sequence number begins from 10 and

increments 10. Multiple different types of profiles can be configured on one interface.

To view the following window, click L2 Features > VLAN Tunnel > VLAN Mapping, as shown below:

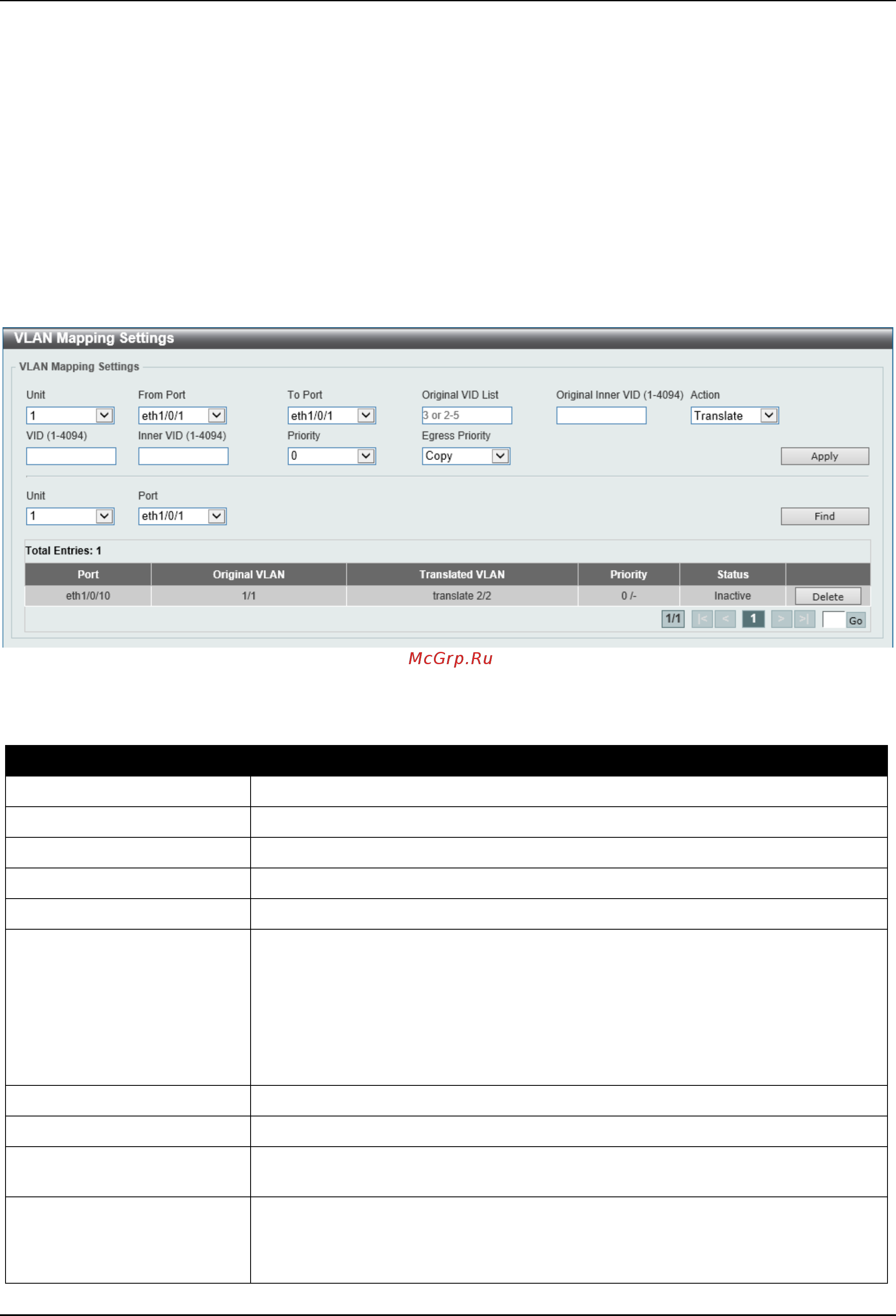

Figure 5-44 VLAN Mapping Settings Window

The fields that can be configured are described below:

Parameter Description

Unit

Select the Switch unit ID that will be used here.

From Port - To Port

Select the port range that will be used here.

Port

Select the port that will be used for the search here.

Original VID List

Enter the original VLAN ID list here. The range is from 1 to 4094.

Original Inner VID

Enter the original inner VLAN ID here. The range is from 1 to 4094.

Action

Select the action that will be taken here. Options to choose from are Translate

and Dot1q-tunnel.

• Translate - Specifies that the outer-VID will replace the outer-VID of the

matched packets.

• Dot1q-tunnel - Specifies that the outer-VID will be added for matched

packets.

VID

Enter the VLAN ID here. The range is from 1 to 4094.

Inner VID

Enter the inner VLAN ID here. The range is from 1 to 4094.

Priority

Select the 802.1p priority value here. The range is from 0 to 7. A lower value has

a higher priority.

Egress Priority

Select the egress C-tag priority for the VLAN tunnel interface here. Options to

choose from are:

• Copy - Specifies that a copy of the service VLAN priority is used.
