DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
365

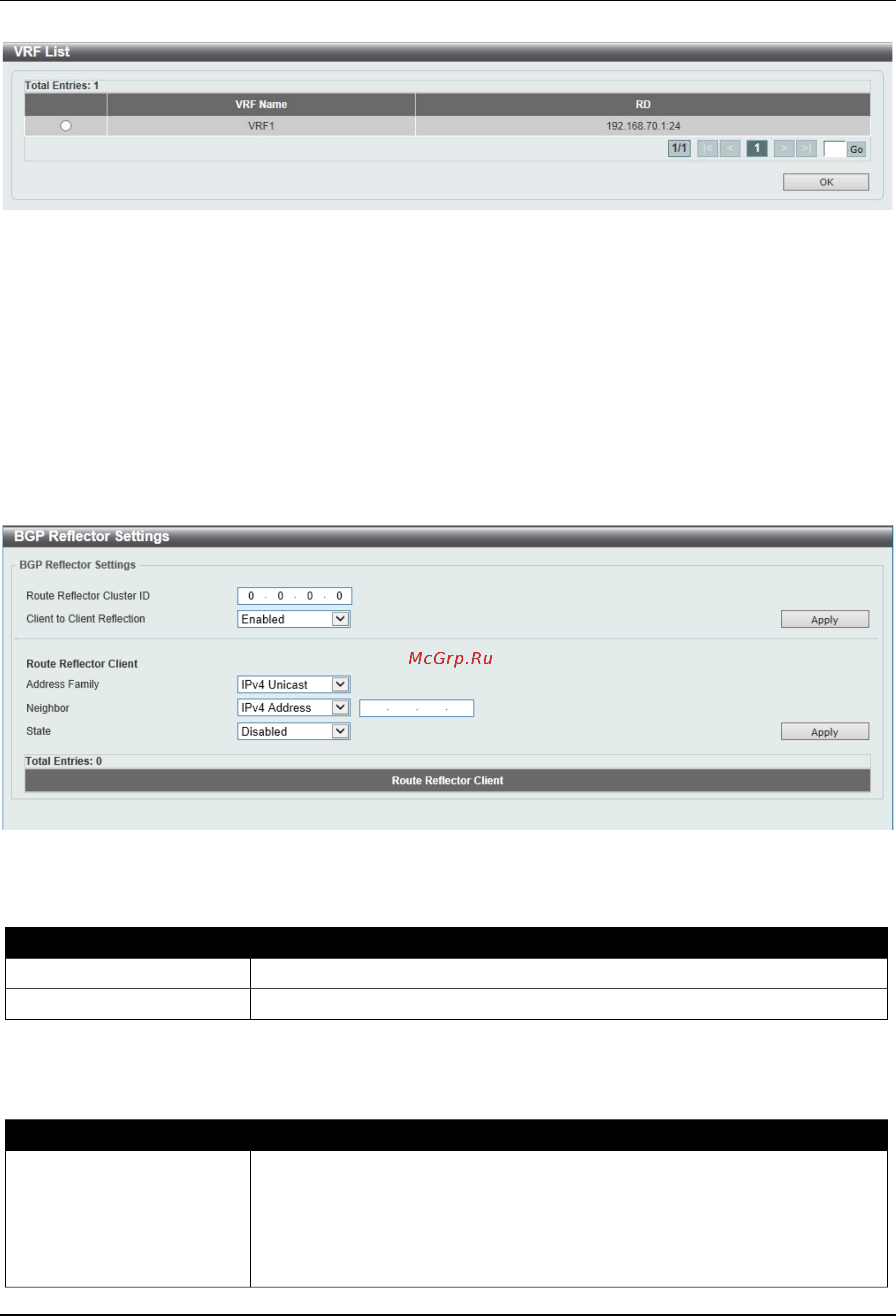

After clicking the Please Select button, the following page will appear.
Figure 6-174 BGP Dampening Flap Statistics Table (Please Select) Window
Select the VRF entry and click the OK button to use the selected VRF entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
BGP Reflector Settings
This window is used to display and configure the BGP reflector settings.
To view the following window, click L3 Features > BGP > BGP Reflector Settings, as shown below:
Figure 6-175 BGP Reflector Settings Window
The fields that can be configured in BGP Reflector Settings are described below:
Parameter Description
Route Reflector Cluster ID
Enter the route reflector cluster ID here.
Client to Client Reflection
Select to enable or disable the client-to-client reflection feature here.
Click the Apply button to accept the changes made.
The fields that can be configured in BGP Reflector Client are described below:
Parameter Description
Address Family
Select the address family that will be used here. Options to choose from are:
• IPv4 Unicast - Specifies to use the IPv4 unicast address family in this
configuration.
• IPv4 Multicast - Specifies to use the IPv4 multicast address family in this
configuration.
