![D-Link DGS-3630-28TC [650/742] Save and tools](/img/pdf.png)
D-Link DGS-3630-28TC [650/742] Save and tools

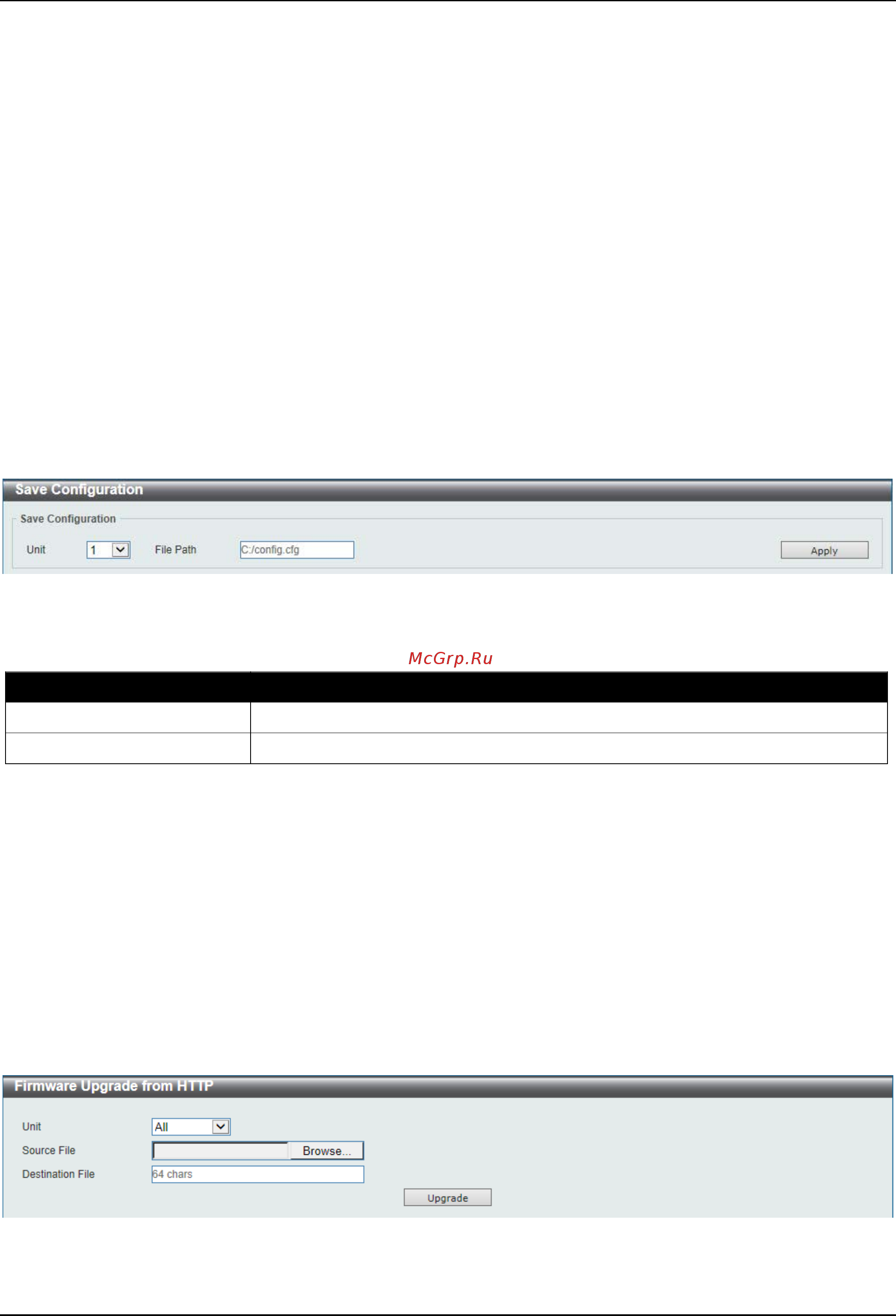

![D-Link DGS-3630-28TC [650/742] Save and tools](/views2/1459303/page650/bg28a.png)
DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
638
15. Save and Tools
Save Configuration
Firmware Upgrade & Backup
Configuration Restore & Backup
Log Backup
Ping
Trace Route
Reset
Reboot System
DLMS Settings
Save Configuration
This window is used to save the running configuration to the start-up configuration. This is to prevent the loss of
configuration in the event of a power failure.
To view the following window, click Save > Save Configuration, as shown below:
Figure 15-1 Save Configuration Window
The fields that can be configured are described below:
Parameter Description
Unit
Select the Switch unit that will be used for this configuration here.
File Path
Enter the filename and path in the space provided.
Click the Apply button to save the configuration.
Firmware Upgrade & Backup
Firmware Upgrade from HTTP
This window is used to initiate a firmware upgrade from a local PC using HTTP.
To view the following window, click Tools > Firmware Upgrade & Backup > Firmware Upgrade from HTTP, as
shown below:
Figure 15-2 Firmware Upgrade from HTTP Window
