BGP Network Settings

This window is used to display and configure the BGP network settings.

To view the following window, click L3 Features > BGP > BGP Network Settings, as shown below:

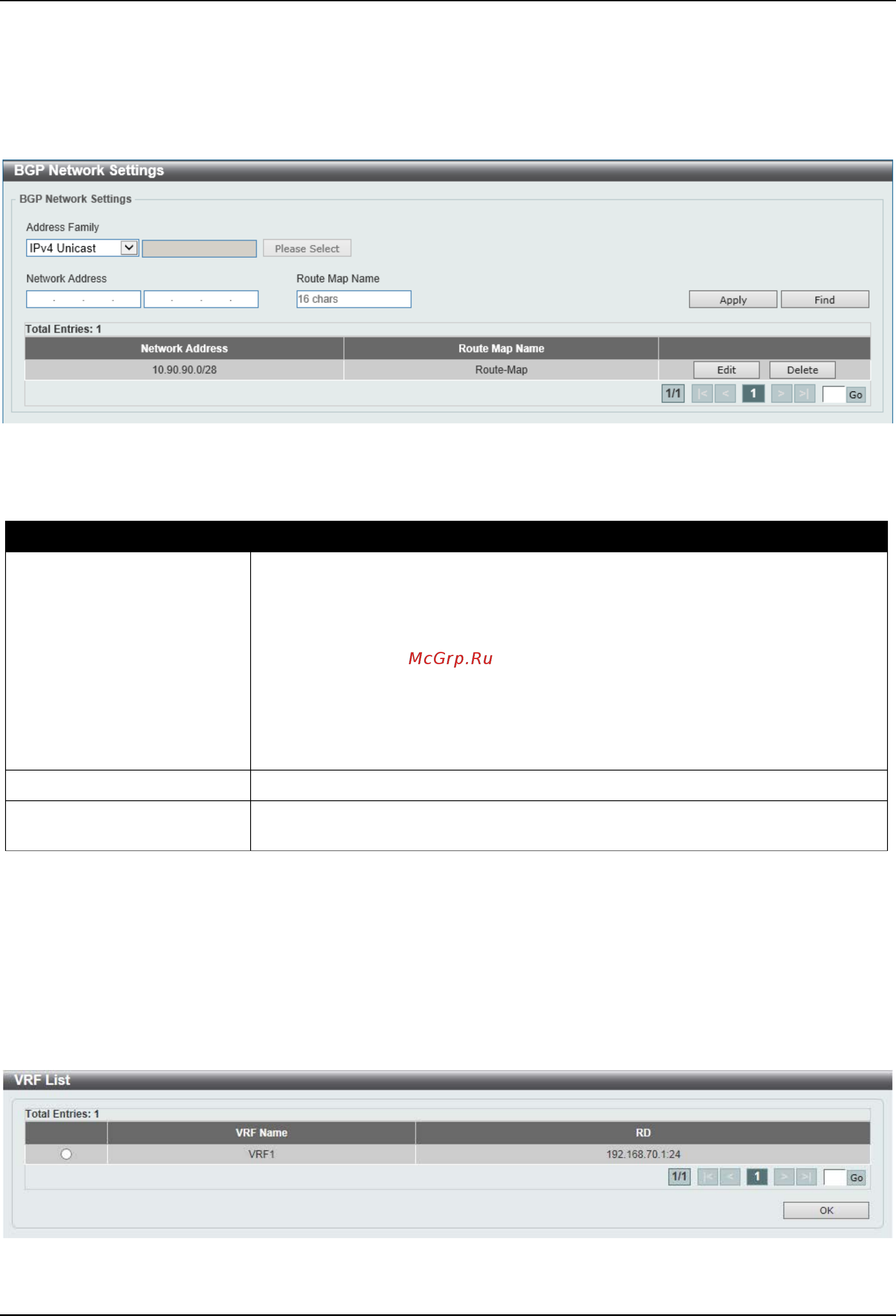

Figure 6-163 BGP Network Settings Window

The fields that can be configured are described below:

Parameter Description

Address Family

Select the address family to use here. Options to choose from are:

• IPv4 Unicast - Specifies to use IPv4 unicast address family here.

• IPv4 VRF - Specifies to use the VRF instance here. Enter the name of the

VRF instance in the space provided or click the Please Select button to

select a pre-configured VRF instance that will be used here. This name can

be up to 12 characters long.

• IPv4 Multicast - Specifies to use IPv4 multicast address family here.

• IPv6 Unicast - Specifies to use IPv6 unicast address family here.

Network Address

Enter the IPv4/IPv6 network address and mask that BGP will advertise here.

Route Map Name

Enter the route map name here. The configured network must be permitted by the

specified route map to be advertised. This name can be up to 16 characters long.

Click the Apply button to accept the changes made.

Click the Find button to locate a specific entry based on the information entered.

Click the Edit button to re-configure the specific entry.

Click the Delete button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Please Select button, the following page will appear.

Figure 6-164 BGP Network Settings (Please Select) Window
