Click the Back button to return to the previous window.

OSPFv2 LSDB Table

This window is used to display the OSPFv2 LSDB table and information.

To view the following window, click L3 Features > OSPF > OSPFv2 > OSPFv2 LSDB Table, as shown below:

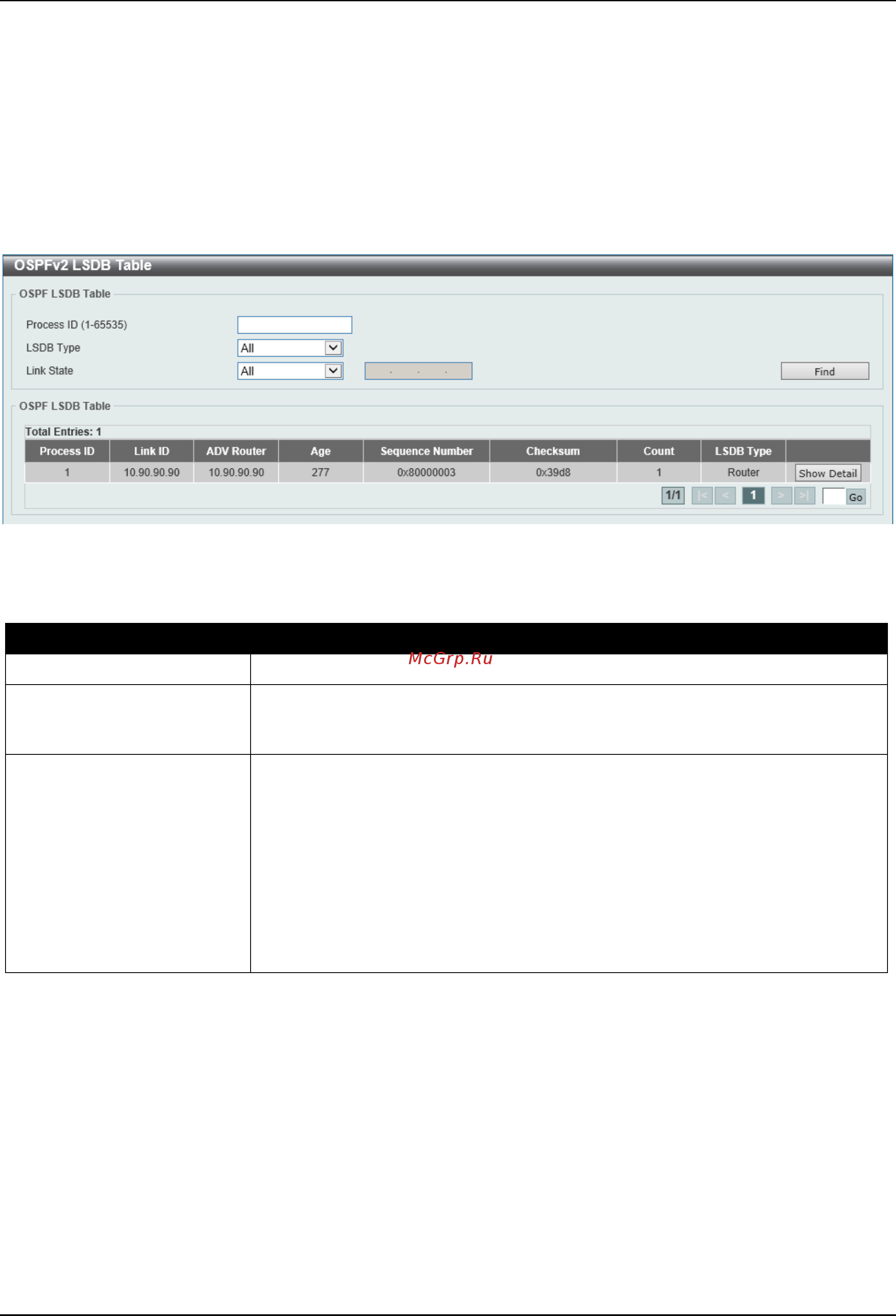

Figure 6-63 OSPFv2 LSDB Table Window

The fields that can be configured are described below:

Parameter Description

Process ID

Enter the OSPF process ID here. The range is from 1 to 65535.

LSDB Type

Select the LSDB type of information that will be displayed here. Options to choose

from are All, Router, Network, Summary, ASBR Summary, External, Stub,

and NSSA External.

Link State

Select the link-state information that will be displayed here. Options to choose

from are All, Link State ID, Self Originate, and Adv Router.

• All - Specifies to display all OSPFv2 link-state information.

• Link State ID - Specifies to display information associated with the link-state

ID. Enter the link state ID in the space provided here.

• Self Originate - Specifies to display LSAs generated by the local router.

• Adv Router - Specifies to display all of the LSAs generated by the

advertising router. Enter the advertising router ID in the space provided here.

Click the Find button to locate a specific entry based on the information entered.

Click the Show Detail button to view more detailed information about the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
