DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
324
The fields that can be configured are described below:
Parameter Description
Interface Name
Enter the VLAN interface name here to display PIM-SM neighbor information.
Click the Find button to locate a specific entry based on the information entered.
Click the Show All button to display all the entries.
PIM for IPv6
In this section, the settings associated with PIM Sparse Mode for IPv6 (PIM-SMv6) and PIM Dense Mode for IPv6
(PIM-DMv6) will be configured.
PIM for IPv6 Interface
This window is used to display and configure the PIM IPv6 interface settings.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv6 > PIM for
IPv6 Interface, as shown below:

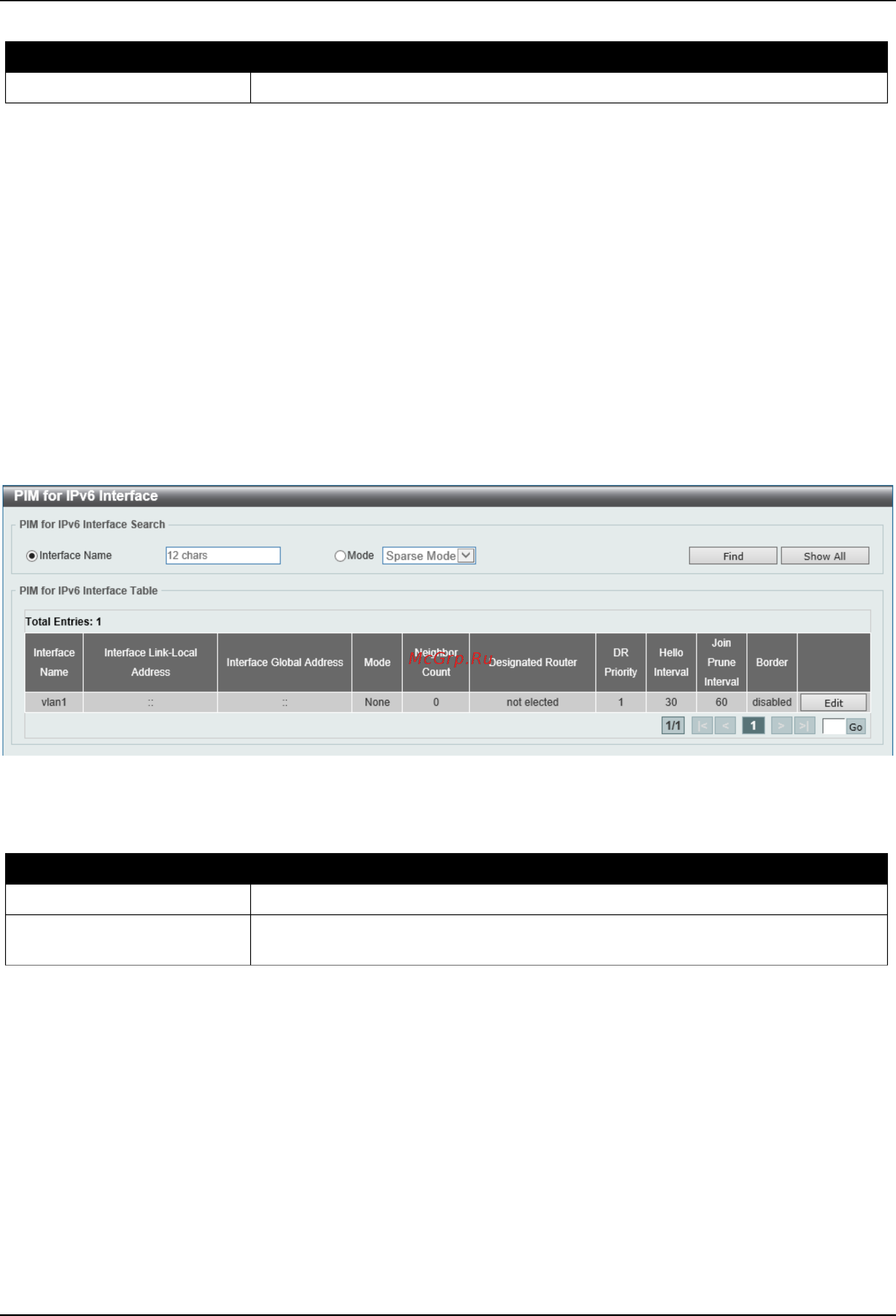

Figure 6-121 PIM for IPv6 Interface Window
The fields that can be configured are described below:
Parameter Description
Interface Name
Enter the VLAN interface name here.
Mode
Select the operation mode of IPv6 PIM entries used in this filtered search here.
Options to choose from are Sparse Mode and Dense Mode.
Click the Find button to locate a specific entry based on the information entered.
Click the Show All button to display all the entries.
Click the Edit button to modify the specified entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
