DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
404
To view the following window, click L3 Features > ISIS > ISIS Route Table, as shown below:

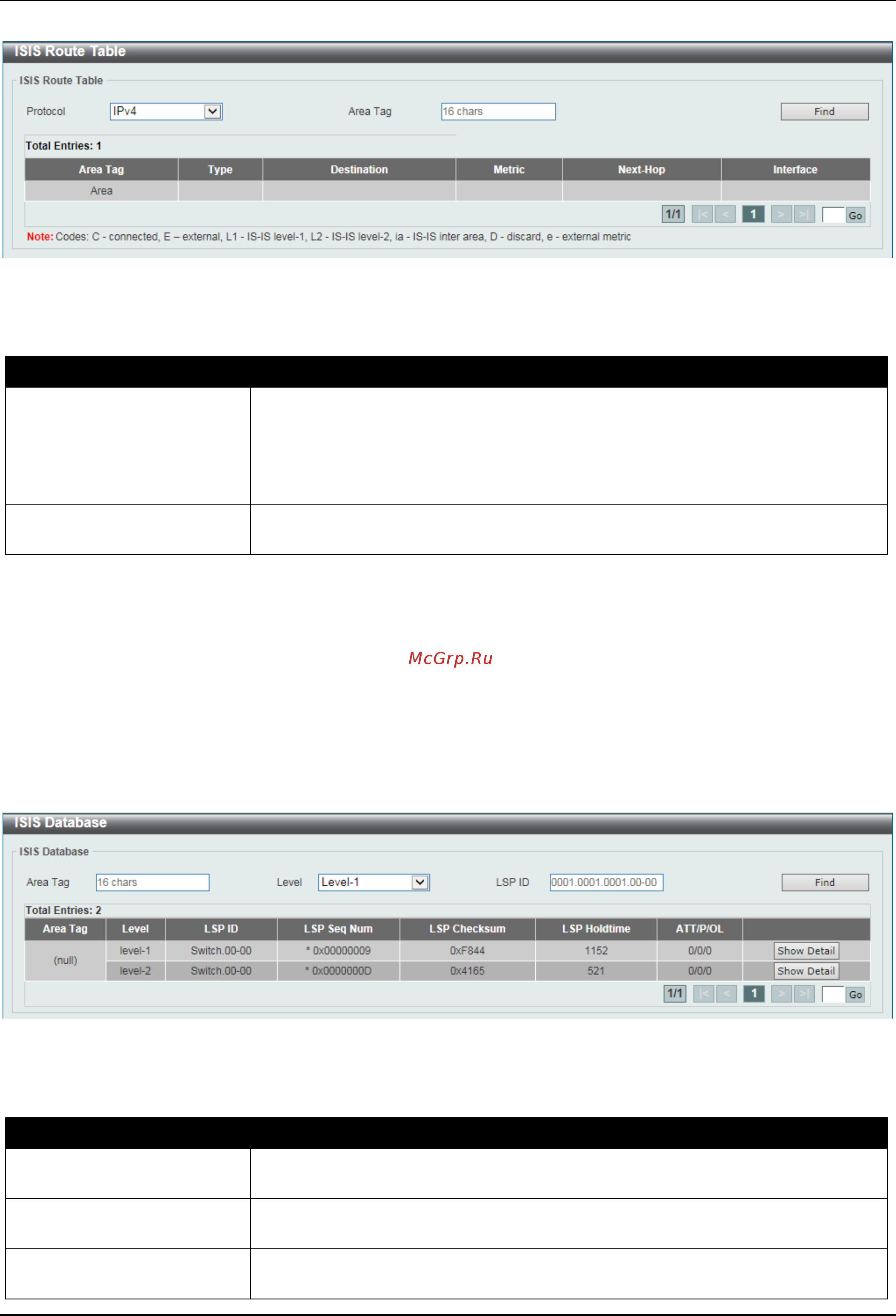

Figure 6-219 ISIS Route Table Window
The fields that can be configured are described below:
Parameter Description
Protocol
Select the protocol that will be used in the display here. Options to choose from
are:
• IPv4 - Specifies to display the ISIS IPv4 routing table information.
• IPv6 - Specifies to display the ISIS IPv6 routing table information.
Area Tag
Enter the ISIS area tag that will be used in this display here. This can be up to 16
characters long.
Click the Find button to locate a specific entry based on the information entered.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
ISIS Database
This window is used to view the ISIS LSPs database.
To view the following window, click L3 Features > ISIS > ISIS Database, as shown below:
Figure 6-220 ISIS Database Window
The fields that can be configured are described below:
Parameter Description
Area Tag
Enter the ISIS area tag that will be used in this display here. This can be up to 16
characters long.
Level
Select the routing level that will be used here. Options to choose from are Level-1
and Level-2.
LSP ID
Enter LSP ID that will be used in the display here. This specifies to display the
contents of a single LSP by its ID number.
