DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

426

The fields that can be configured are described below:

Parameter Description

Unit

Select the Switch unit that will be used for this configuration here.

From Port - To Port

Select the range of ports that will be used for this configuration here.

Trust State

Select the port trust state option here. Options to choose from are CoS and

DSCP.

DSCP Mutation Map

Select and enter the DSCP mutation map name used here. This name can be up

to 32 characters long.

Select the None option to not allocate a DSCP mutation map to the port(s).

Click the Apply button to accept the changes made.

DSCP CoS Mapping

This window is used to display and configure the DSCP CoS mapping settings.

To view the following window, click QoS > Advanced Settings > DSCP CoS Mapping, as shown below:

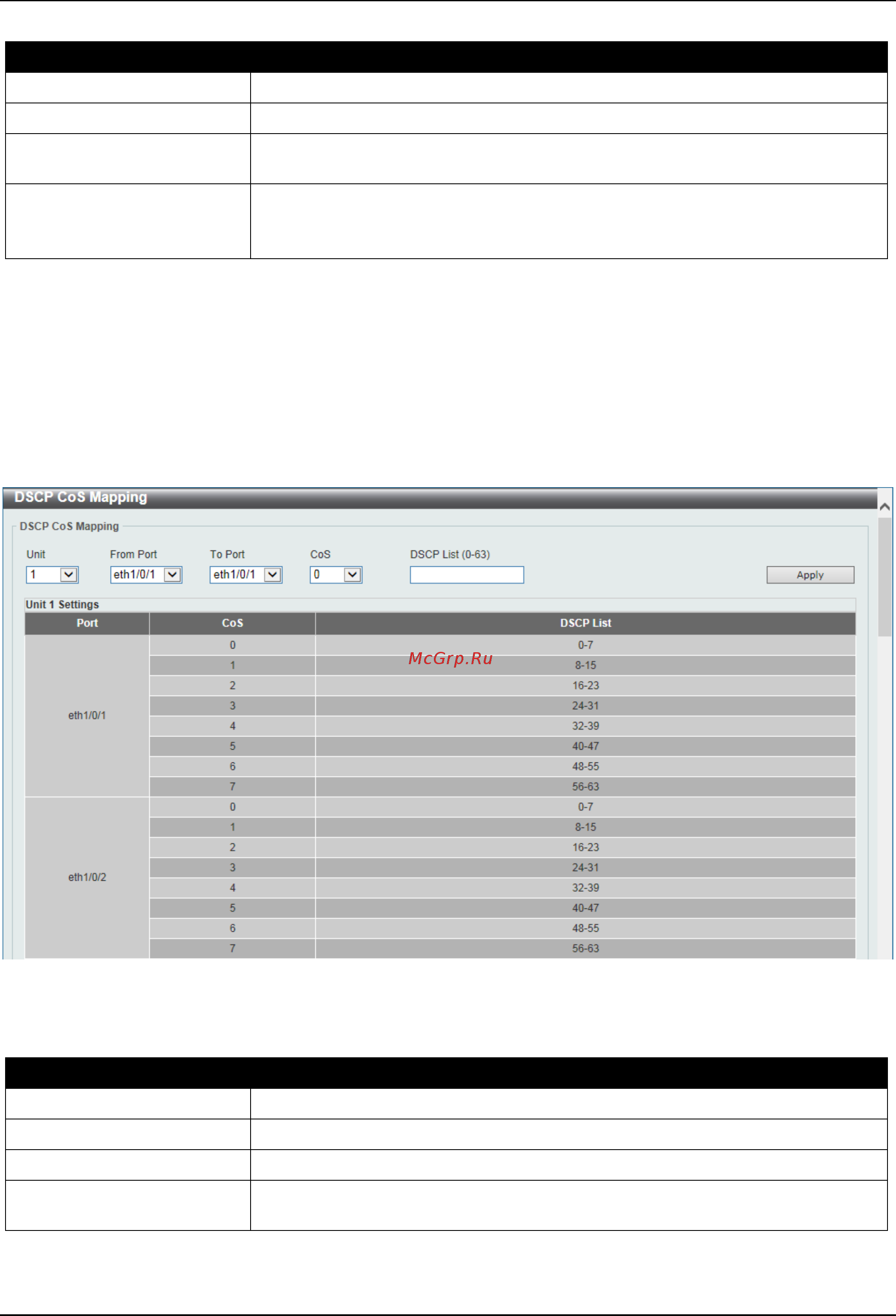

Figure 7-10 DSCP CoS Mapping Window

The fields that can be configured are described below:

Parameter Description

Unit

Select the Switch unit that will be used for this configuration here.

From Port - To Port

Select the range of ports that will be used for this configuration here.

CoS

Select the CoS value to map to the DSCP list. Options to choose from are 0 to 7.

DSCP List

Enter the DSCP list value to map to the CoS value here. This value must be

between 0 and 63.

Click the Apply button to accept the changes made.
