DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

322

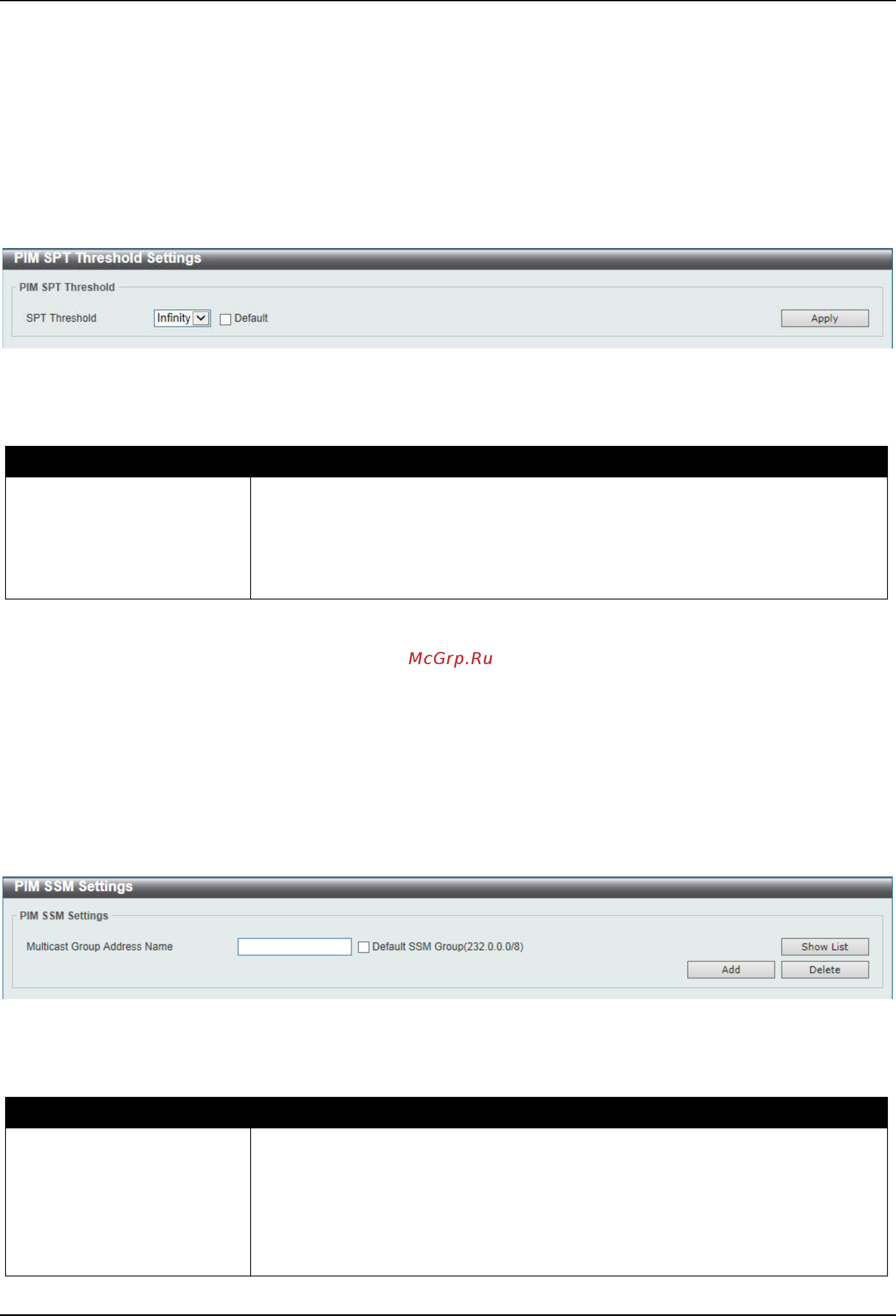

PIM SPT Threshold Settings

This window is used to display and configure the PIM SPT threshold settings. Use this feature on the last hop of the

router. In the PIM-SM mode, initially the multicast traffic from the source will be flowing along the RPT share tree to

the receiver. After the first packet arrives at the last hop router, for each group of traffic, it can operate in one of the

following two modes. With the mode Infinity, the traffic keeps following the share tree. With the mode 0, the source

tree will be established and the traffic Switchover to the source tree.

Parameter Description

SPT Threshold

Select the SPT threshold option here. Options to choose from are 0 and Infinity.

• 0 - Specifies to establish the source tree right at the arrival of the first packet.

• Infinity - Specifies to always rely on the shared tree.

Select the Default option to use the default setting, which is Infinity.

Click the Apply button to accept the changes made.

PIM SSM Settings

This window is used to display and configure the PIM SSM settings. Use this feature on the last hop of the router only.

Figure 6-118 PIM SSM Settings Window

The fields that can be configured are described below:

Parameter Description

Multicast Group Address

Enter the standard IP access list name here that defines the user-specified SSM

group addresses. The group address should be defined in the destination IP

address field of the rule entry. Alternatively, click the Show List button to find and

select any of the exiting access lists configured on this Switch to be used in this
