DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

470

Extended Expert ACL

After selecting an Extended Expert ACL and clicking the Add Rule button, the following page will appear.

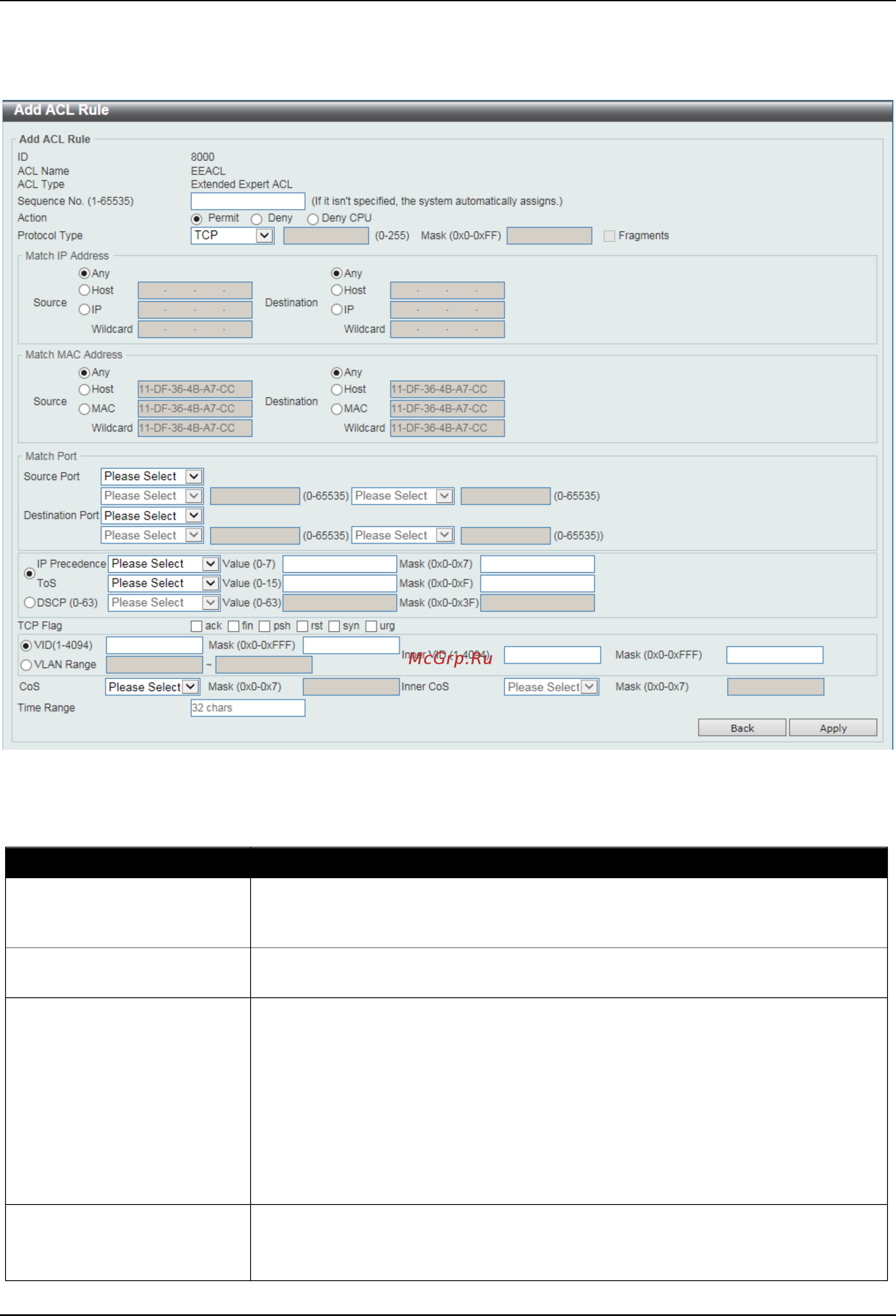

Figure 8-16 Extended Expert ACL (Add Rule) Window

The fields that can be configured are described below:

Parameter Description

Sequence No.

Enter the sequence number of this ACL rule here. The range is from 1 to 65535. If

this value is not specified, the system will automatically generate an ACL rule

number for this entry.

Action

Select the action that this rule will take here. Options to choose from are Permit,

Deny, and Deny CPU.

Protocol Type

Select the protocol type option here. Options to choose from are TCP, UDP,

ICMP, EIGRP (88), ESP (50), GRE (47), IGMP (2), OSPF (89), PIM (103), VRRP

(112), IP-in-IP (94), PCP (108), Protocol ID, and None.

• Value - The protocol ID can also manually be entered here. The range is

from 0 to 255.

• Mask - After selecting the Protocol ID option, manually enter the protocol

mask value here. The range is from 0x0 to 0xFF.

• Fragments - Select this option to include packet fragment filtering.

Source

Select and enter the source IP information here. Options to choose from are Any,

Host, and IP.

• When the Any option is selected, any source traffic will be evaluated
