The fields that can be configured in Add Sub VLAN are described below:

Parameter Description

Super VID

Enter the super VLAN ID that will be associated with the sub-VLAN(s) here. The

range is from 1 to 4094.

Sub VID List

Enter the sub-VLAN ID(s) that will be associated with the super VLAN here.

Click the Apply button to accept the changes made.

The fields that can be configured in Find Super VLAN are described below:

Parameter Description

Super VID

Enter the super VLAN ID that will be displayed here. The range is from 1 to 4094.

Click the Find button to locate a specific entry based on the information entered.

Click the Show All button to display all the available entries.

Click the Delete button to remove the specific entry or to remove the sub-VLAN from the super VLAN.

Click the IP Range List link to add an IP range to the sub-VLAN.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the IP Range List link, the following page will be available.

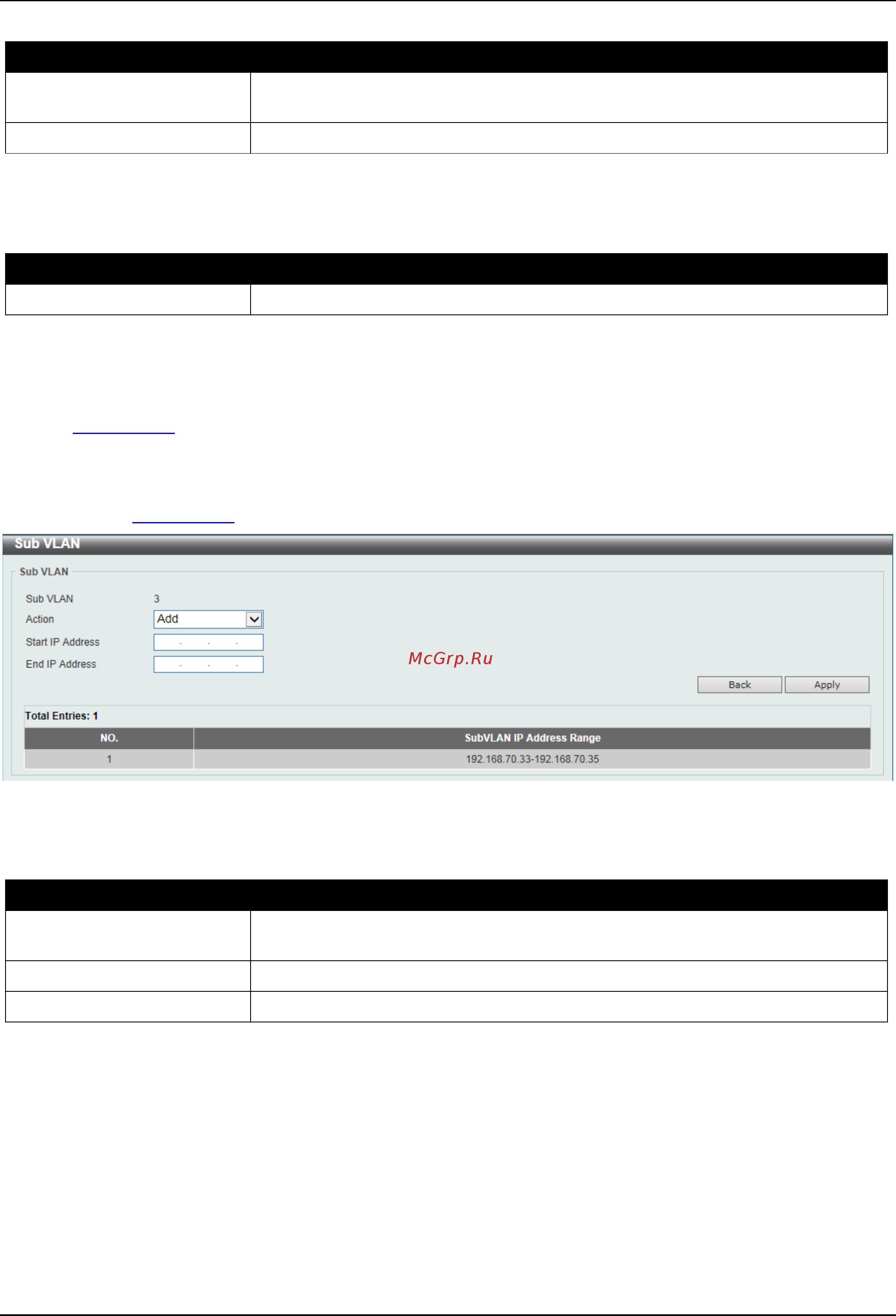

Figure 5-32 Super VLAN (IP Range List) Window

The fields that can be configured are described below:

Parameter Description

Action

Select the action that will be taken here. Options to choose from are Add and

Remove.

Start IP Address

Enter the starting IP address in the range of this sub-VLAN here.

End IP Address

Enter the ending IP address in the range of this sub-VLAN here.

Click the Back button to return to the previous page.

Click the Apply button to accept the changes made.

Auto Surveillance VLAN

Auto Surveillance Properties

This window is used to display and configure the auto surveillance VLAN properties.
